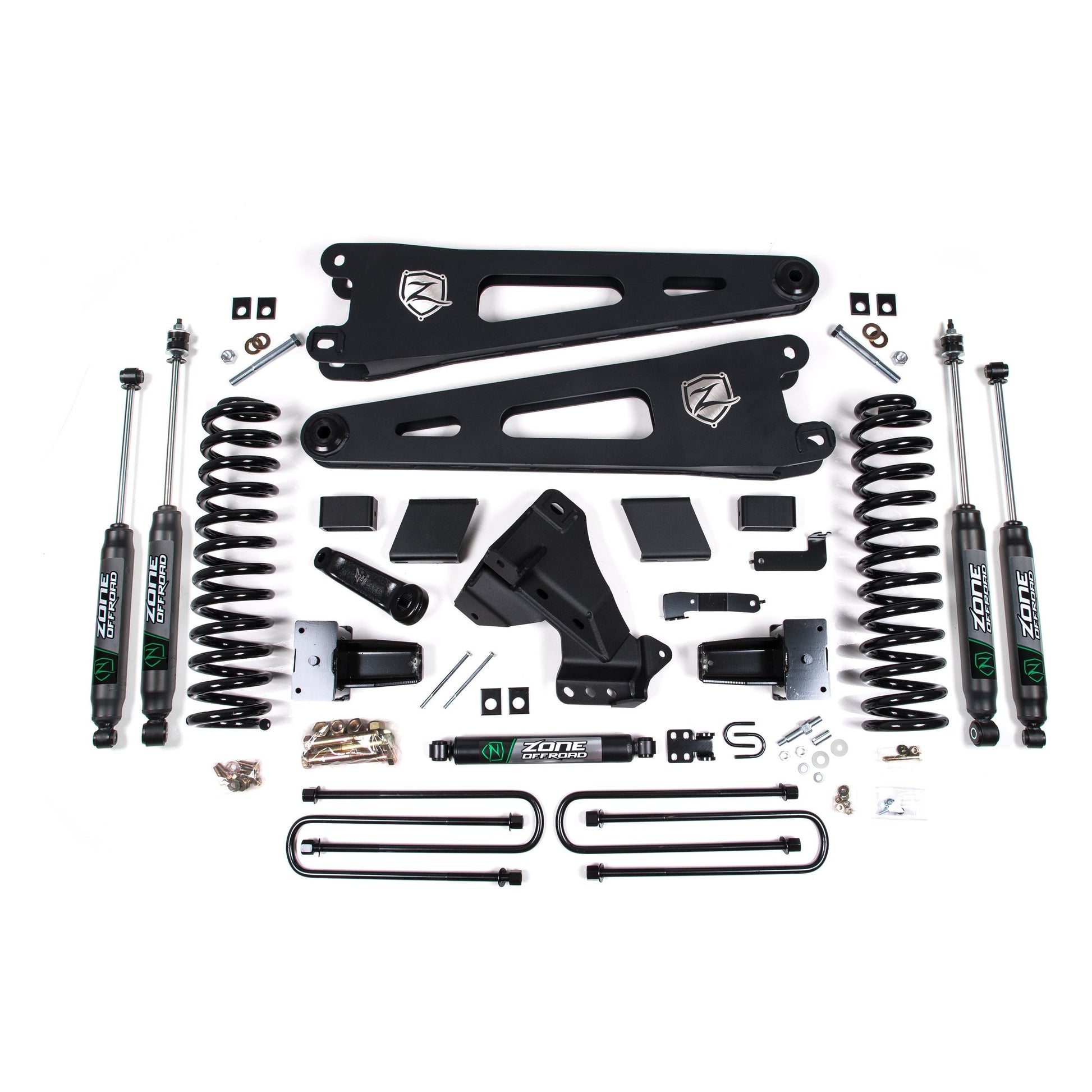

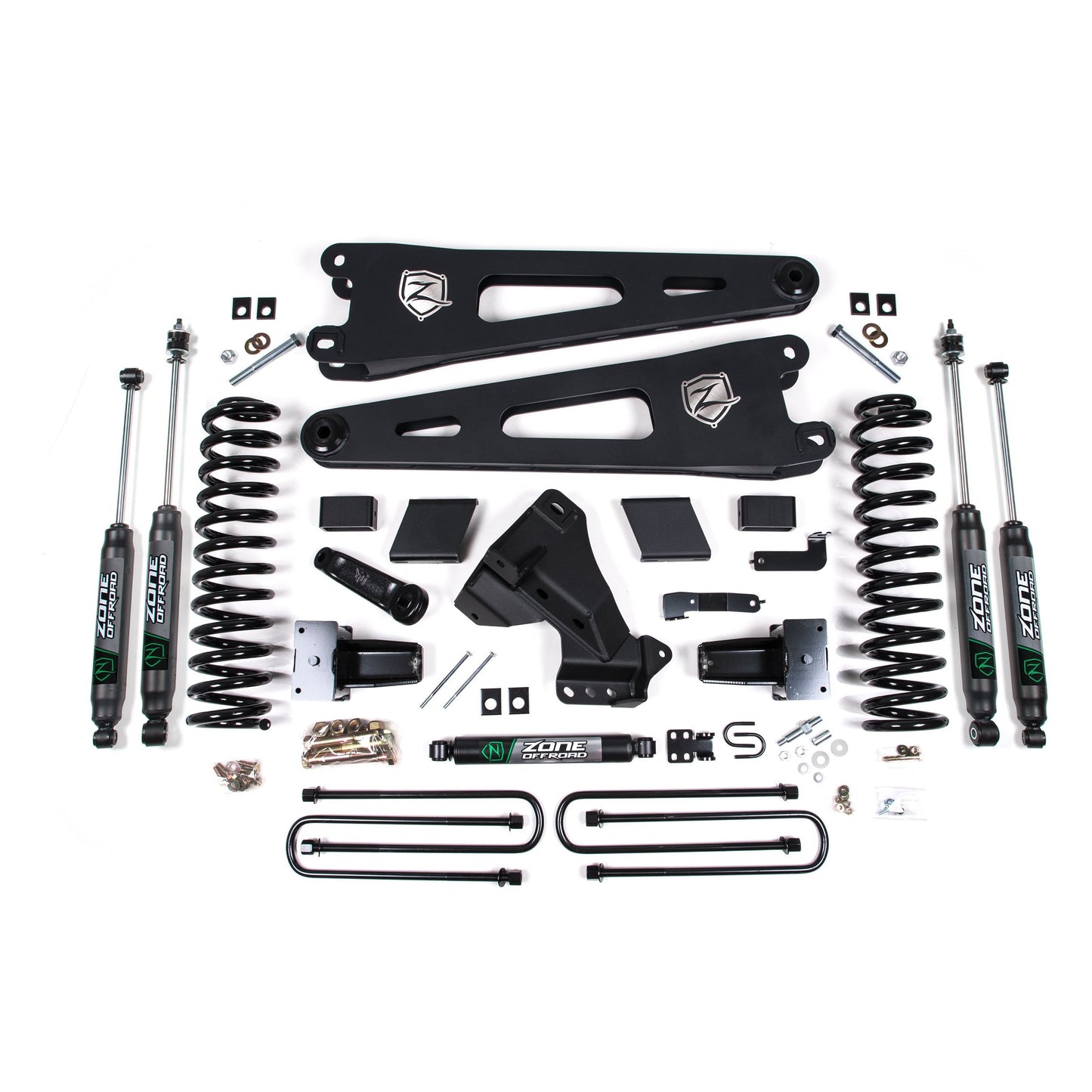

ZONE OFFROAD | 20-22 Ford F-250/F-350 Super Duty 5.0 Inch Radius Arm Lift Kit With Nitro Shocks Diesel Zone Offroad | ZONF60N

Zone Offroad now offers a suspension lifts for the 2020 Ford F250/F30 Super Duty 4WD trucks. These new 5 Inch lift kits are available for gas and diesel applications, as well as offered in standard (radisu arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37 Inch tires.

As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Quick Specs:

• Front Lift Height 5 Inch
• Rear Lift Height 3 Inch
• Material Metal
• Front Lift Method Coil Springs
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 20 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 37 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 37 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Welding Required No

In The Box:

• Coil Springs
• Lift Block and U-Bolt Kit - Rear
• Radius Arms

Features:
1. Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
2. Forged pitman arm to correct steering angles
3 Inch Heavy duty fabricated track bar relocation bracket to re-center front axle
4. Full length Diesel/ Gas specific coil springs for a smooth ride

Kit Components:

• ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
• ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
• ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
• ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
• ZONF1450 20-22 F250/F350 4.5 Inch Rear Box Kit 1 711745594432
• ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
• ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376
