ZONE OFFROAD | 23-24 Ford F-250/F-350 Super Duty 4WD 5 Inch Radius Arm Lift Kit 3 Inch Rear Block Diesel 2 Leaf Main Nitro Shocks Zone Offroad | ZONF123N

Zone Offroad now offers 5 Inch radius arm lift kits for the 23-24 Ford F250/F30 Super Duty 4WD diesel trucks. These new 5 Inch lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 37 Inch tires.

As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Quick Specs:

• Radius or Square U-bolts Is equipped with radiused U-bolts
• Rear Block Height 3 Inch
• Front Lift Height 5 Inch
• Rear Lift Height 3 Inch
• Material Steel
• Front Lift Method Coil Springs
• Rear Lift Method Block Kit
• Lift Type Lift Kit
• Wheel Size 20 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 3 Inch x 12.5
• Finish Powdercoat
• Cutting Required No

Features:

• Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance.
• Forged pitman arm to correct steering angles.
• Heavy duty fabricated track
• bar relocation bracket to re-center the front axle.
• Full length specific coil springs which are gas or diesel specific.

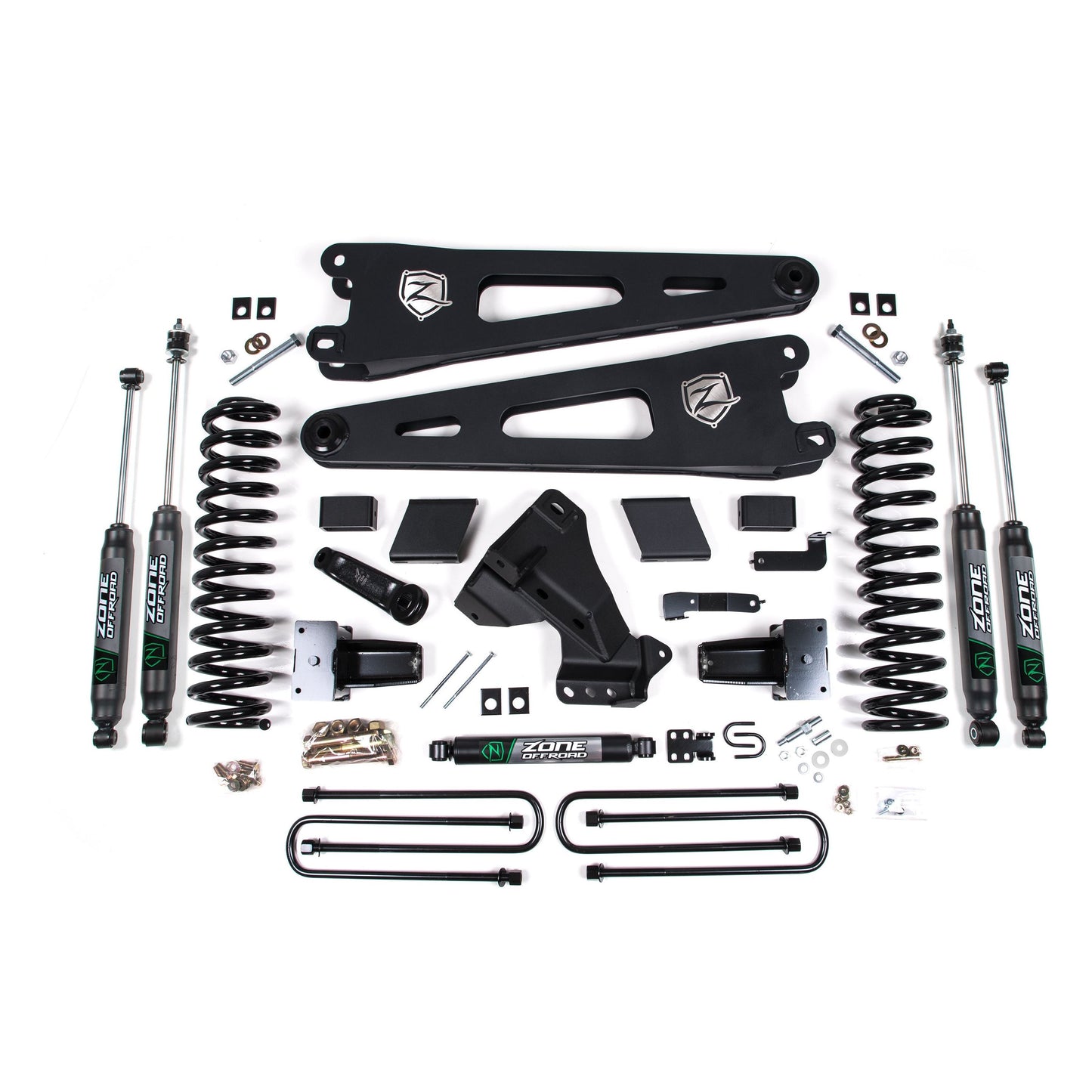

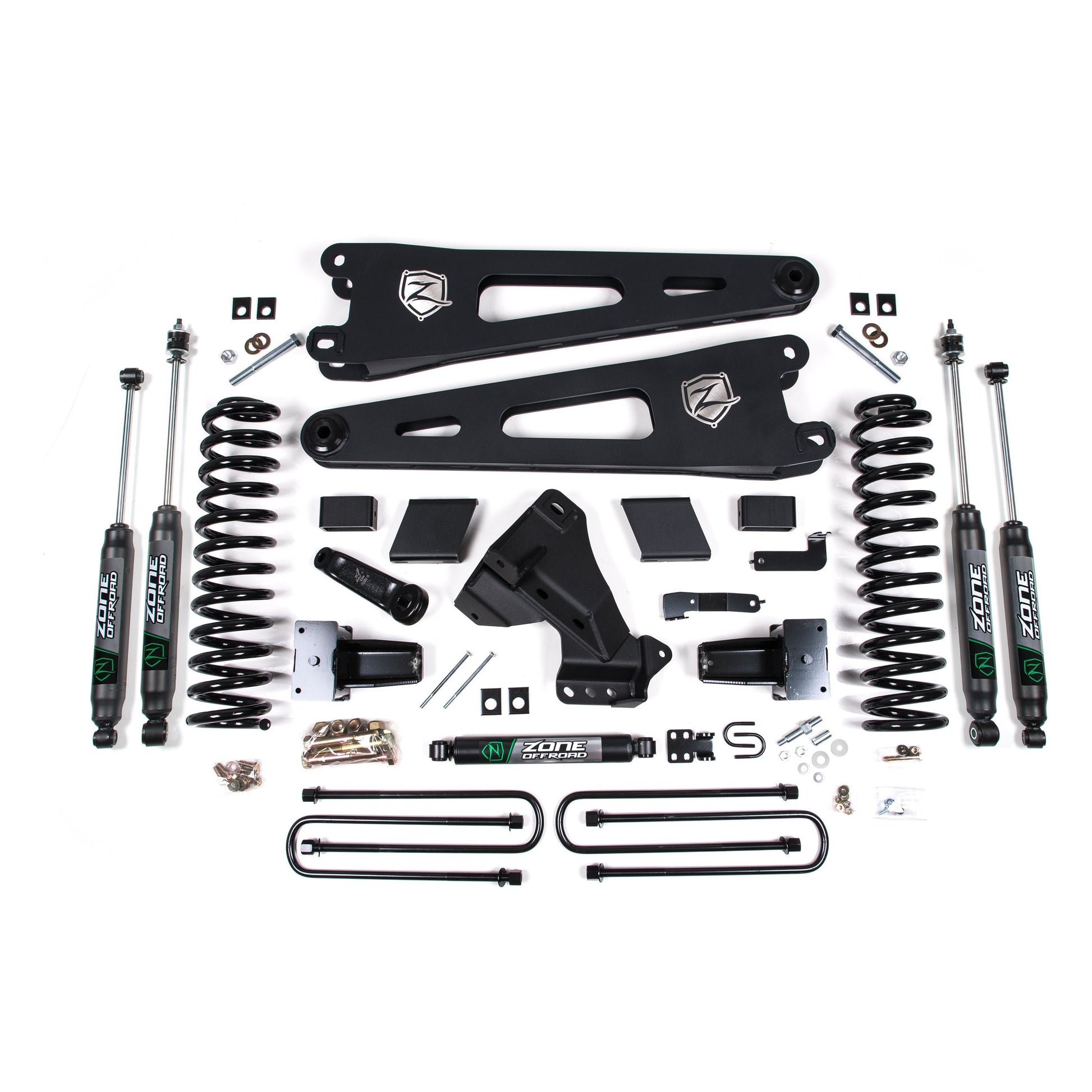

Kit Components:

• ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
• ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
• ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
• ZONF1317 2017-2024 F250 5.0 Inch Rear Block 2 Leaf Main 1 711745599123
• ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
• ZONF1432 2023 Ford F250/350 4WD Drivers Side Radius Arm Drv 1 810156368042
• ZONF1433 2023 Ford F250/350 4WD Passengers Side Radius Arm Pass 1 810156368059
• ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376
