ZONE OFFROAD | 16-21 Toyota Tundra 5 Inch Lift Kit With Fox 2.0 Adventure Series Zone Offroad | ZONT5F

Take your Tundra to new heights with this 5 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to lower strut extensions and rear block kit to level out the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:

• Front Lift Height 5 Inch
• Rear Lift Height 3 Inch
• Front Lift Method Knuckle & Drop Cross-Member
• Rear Lift Method Fabricated Blocks
• Lift Type Lift Kit
• Wheel Size 18 x 9
• Back Spacing 5.5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 20 x 9
• Back Spacing 2 6.25 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 22 x 9
• Back Spacing 3 6.25 Inch
• Max Tire Size 3 35 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• FMVSS Certification N/A (See notes)
• Accommodates Factory Wheels No
• Welding Required No

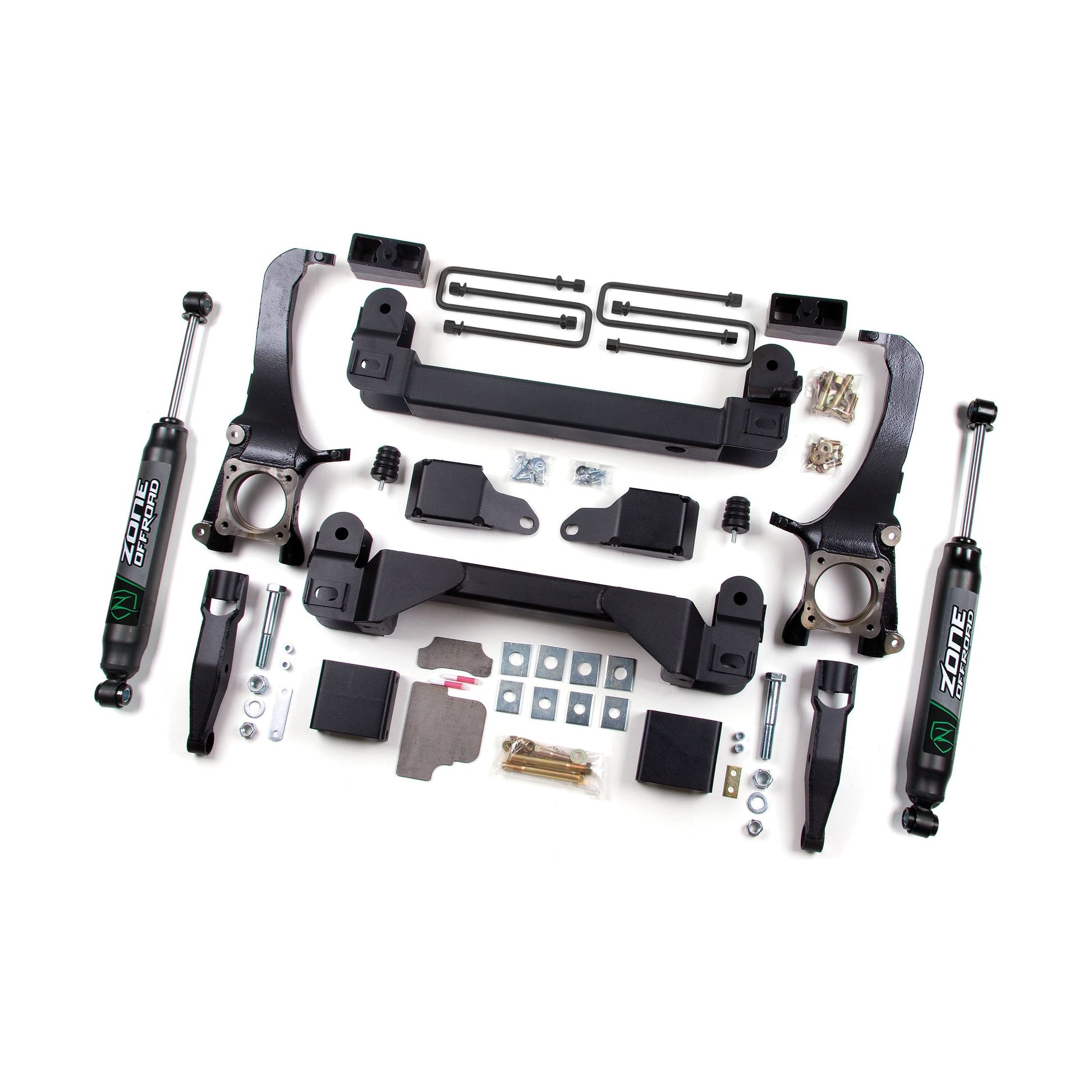

In The Box:

• All Necessary Mounting / Installation Hardware
• Crossmembers
• Lower Strut Extensions
• Rear Lift Block & U-Bolt Kit
• Steering Knuckles
• Tie Rod End(s)

Features:

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Lower strut extensions to provide lift and install easily
• Weld-in chassis plates add strength and rigidity
• Rear lift blocks and u-bolts to lift and level the stance
• Sway bar, brake line, and bump stop relocation brackets to correct operating angles

Kit Components:

• FOX98450952 Fox Adv Shock 27.30 x 16.70 x 2-S50/EB1 2 810156368301 InchFOX98450952 Fox Adv Shock 27.30 x 16.70 x 2-S50/EB1 2 810156368301
• ZONT2501 07-21 Toyota Tundra 5.0 Inch Box Kit (2of4) 1 711745601840
• ZONT2502 07-21 Toyota Tundra 5.0 Inch Box Kit (3of4) 1 711745601857
• ZONT2503 07-21 Toyota Tundra 5.0 Inch Box Kit (4of4) 1 711745601864
• ZONT2510 2016-2021 Toyota Tundra 5.0 Inch Box Kit (1of4) 1 711745601871
