ZONE OFFROAD | 14-18 RAM 2500 5.5 Inch Lift Kit Gas With Nitro Shocks Zone Offroad | ZOND68N

Take your RAM 2500 to new heights with this 5.5 Inch lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:

• Front Lift Height 5.5 Inch
• Rear Lift Height 4.5 Inch
• Front Lift Method Radius Arms
• Rear Lift Method Coil Springs
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 17 x 9
• Back Spacing 2 5.75 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3 5.75 Inch
• Max Tire Size 3 35 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

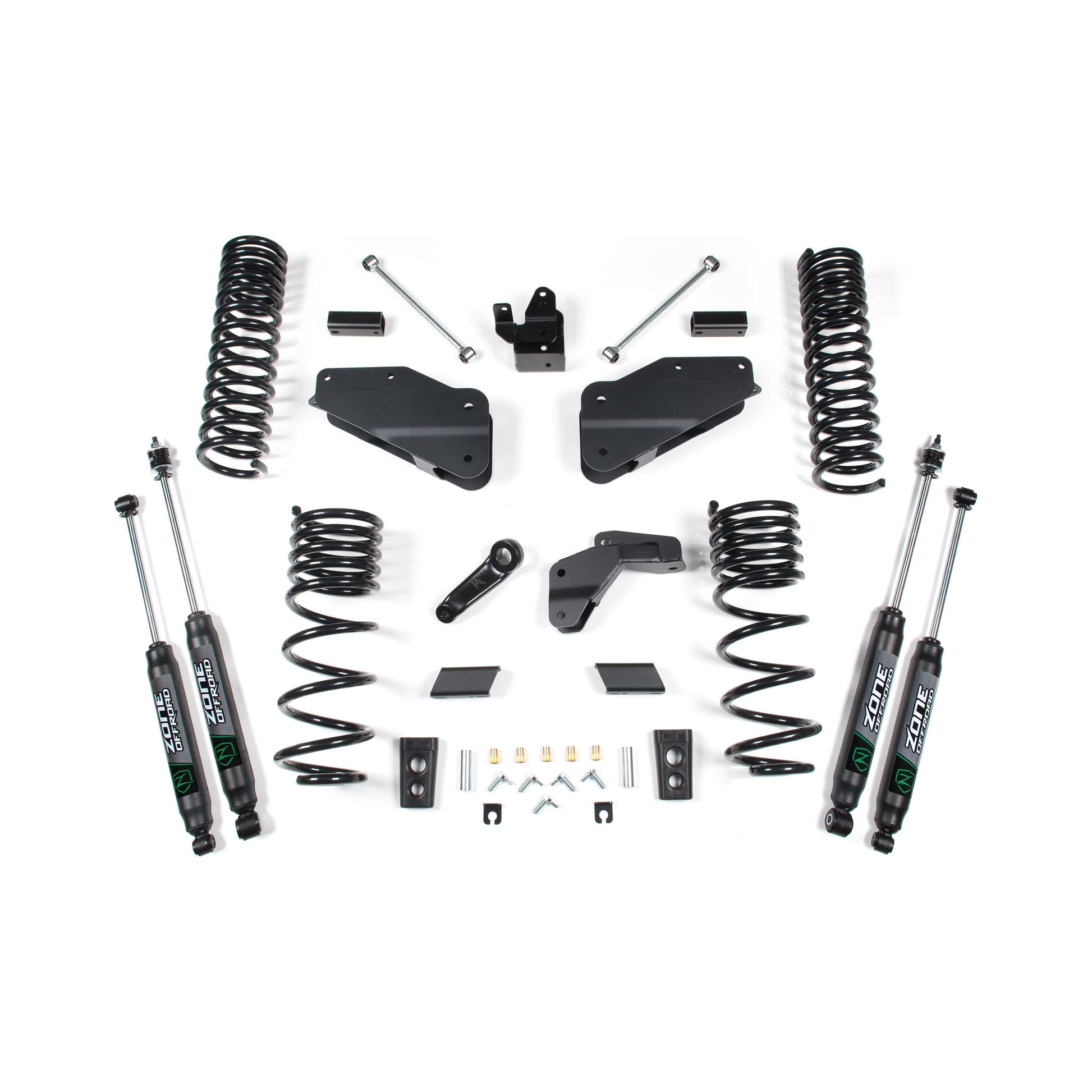

In The Box:

• All Necessary Mounting / Installation Hardware
• Bump Stops
• Coil Springs
• Dropped Pitman Arm
• Radius Arm Drop Brackets
• Sway Bar Relocation Brackets
• Track Bar Relocation Bracket

Features:

• Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and levelign the stance
• Radius arm drop brackets to correct caster and improve suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

Kit Components:

• ZON7742 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595620
• ZON7756 Nitro- 27.9 x 16.6 x 2-3/8 Special/EB1 2 711745595705
• ZOND1459 14-18 Ram 2500 Rear 4.5 Inch Box Kit 1 711745598119
• ZOND1601 13-14 3500/14 2500 Ram 6 Inch Box Kit 1 711745598249
• ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 1 711745598560
• ZOND3402 13 3500/14 2500 Ram 4.5 Inch Coils-Pass Diesel 1 711745598577
• ZOND3409 2014-2024 Ram 2500 4.5 Inch Rear Coil Spring 2 711745598584
