ZONE OFFROAD | 15-20 Ford F-150 4WD 4 Inch Lift Kit Zone Offroad | ZONF47N

Take your F150 to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:

• Front Lift Height 4 Inch
• Rear Lift Height 4 Inch
• Front Lift Method Knuckle & Strut Spacer
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 18 x 9
• Back Spacing 5.5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 20 x 9
• Back Spacing 2 5.5 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 22 x 9
• Back Spacing 3 5.5 Inch
• Max Tire Size 3 35 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

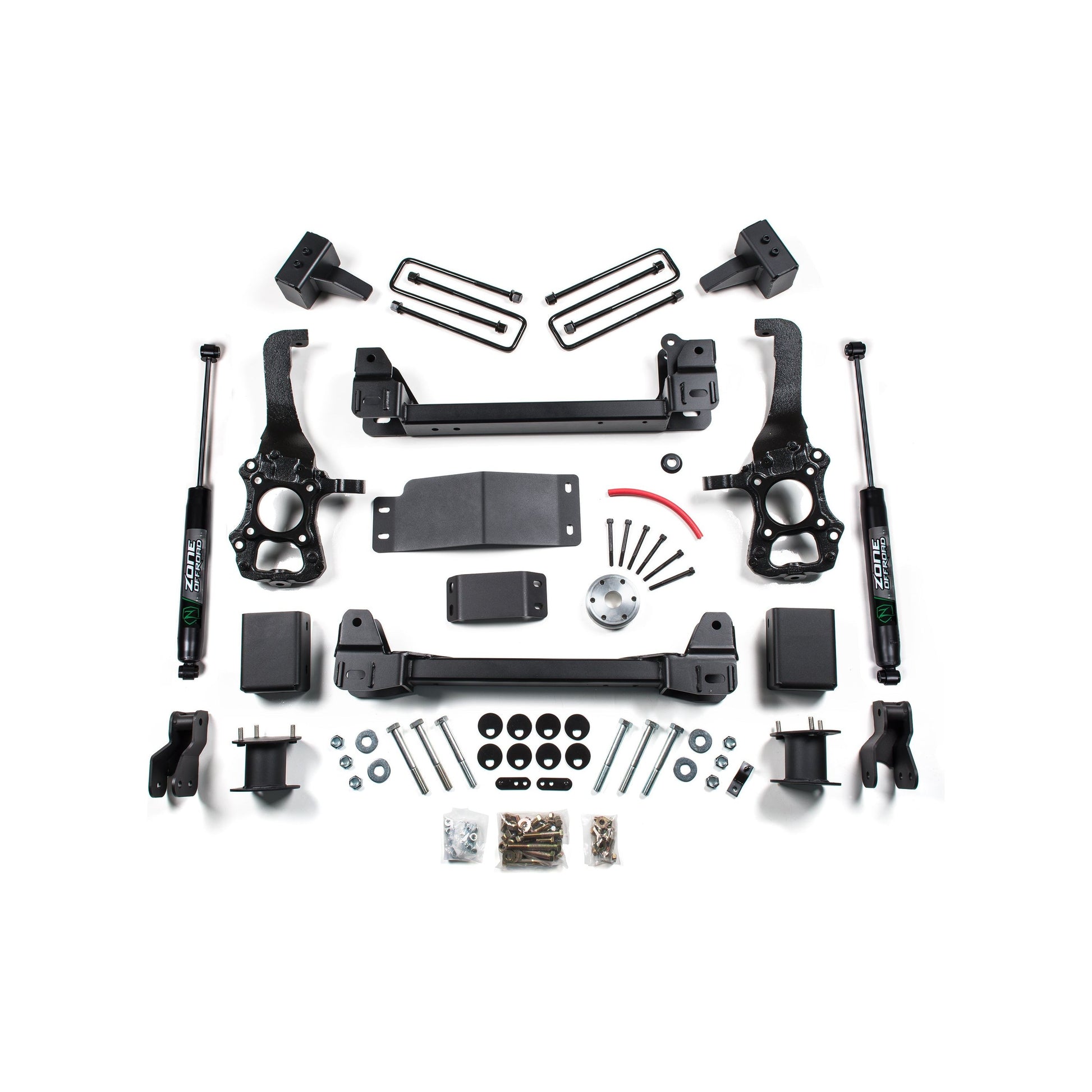

In The Box:

• Crossmembers
• Differential Drop Brackets
• Driveshaft Spacer
• Rear Lift Block & U-Bolt Kit
• Skid Plate
• Steering Knuckles
• Strut Spacers
• Sway Bar Relocation Brackets

Features:

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Sway bar, brake line and bump stop relocation brackets to correct operating angles

Kit Components:

• ZON7828 Nitro- 31.00 x 18.20 x 2-3/8 EB1/EB1 2 711745595934
• ZONF2404 2015-2024 Ford F150 4 Inch Strut Spacer Box Kit 1 711745599444
• ZONF2418 2015 F150 Rear 4 Inch Block Kit 1 711745599468
• ZONF2640 2015 F150 Front Box Kit 1of4 1 711745599789
• ZONF2641 2015 F150 Front Box Kit 2of4 1 711745599796
• ZONF2650 2017-18 F150 Front Box Kit 3of4 1 711745599802
• ZONF2651 2017-18 F150 Front Box Kit 4of4 1 711745599819
