ZONE OFFROAD | 17-19 Ford F-250/350 Super Duty 4 Inch Diesel 3 Leaf Main With Nitro Shocks Zone Offroad | ZONF50N

Take your Super Duty to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for 37 Inch tires.
Quick Specs:

• Front Lift Height 4 Inch
• Rear Lift Height 3 Inch
• Material 1/4 Inch Steel
• Front Lift Method Coil Springs
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 5 Inch
• Max Tire Size 37 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 5 Inch
• Max Tire Size 2 3 Inch x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3.5 Inch
• Max Tire Size 3 37 x 12.5
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels Yes
• Welding Required No

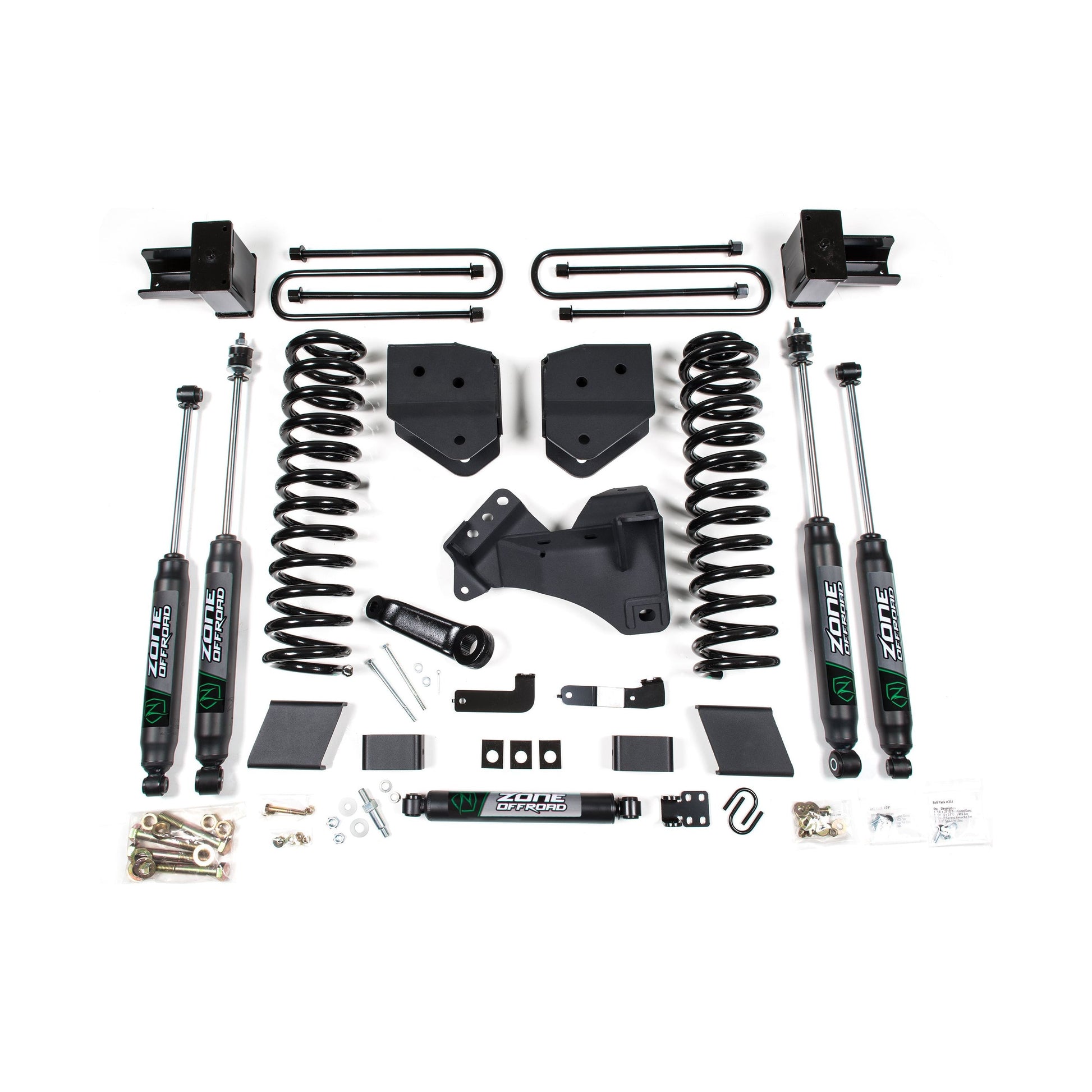

In The Box:

• Brake Line Brackets - Front and Rear
• Coil Springs
• Radius Arm Drop Brackets
• Sway Bar Relocation Brackets
• Track Bar Bracket
• Lift Block and U-Bolt Kit - Rear
• Pitman Arm

Features:

• High strength front coil springs improve ride quality
• Radius arm drop brackets to correct caster and maintain suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Replacement 5 Inch rear lift blocks and u-bolts to lift and level the stance

Kit Components:

• ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
• ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
• ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
• ZONF1318 2017-2024 F250 5 Inch Rear Block 3 Leaf Main 1 711745599130
• ZONF1410 2017-2022 Super Duty 4 Inch Front Box Kit 1 711745599185
• ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
