ZONE OFFROAD | 13-18 RAM 3500 4.5 Inch Radius Arm Lift Kit 2 Inch Rear Block With Nitro Shocks Zone Offroad | ZOND136N

Take your RAM 3500 to new heights with this 4.5 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:

• Front Lift Height 4.5 Inch
• Rear Lift Height 3 Inch
• Material Steel
• Front Lift Method Radius Arms
• Rear Lift Method Coil Springs
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 5.75 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3 5.75 Inch
• Max Tire Size 3 35 x 12.5
• Finish Powdercoat
• Cutting Required No
• Welding Required No

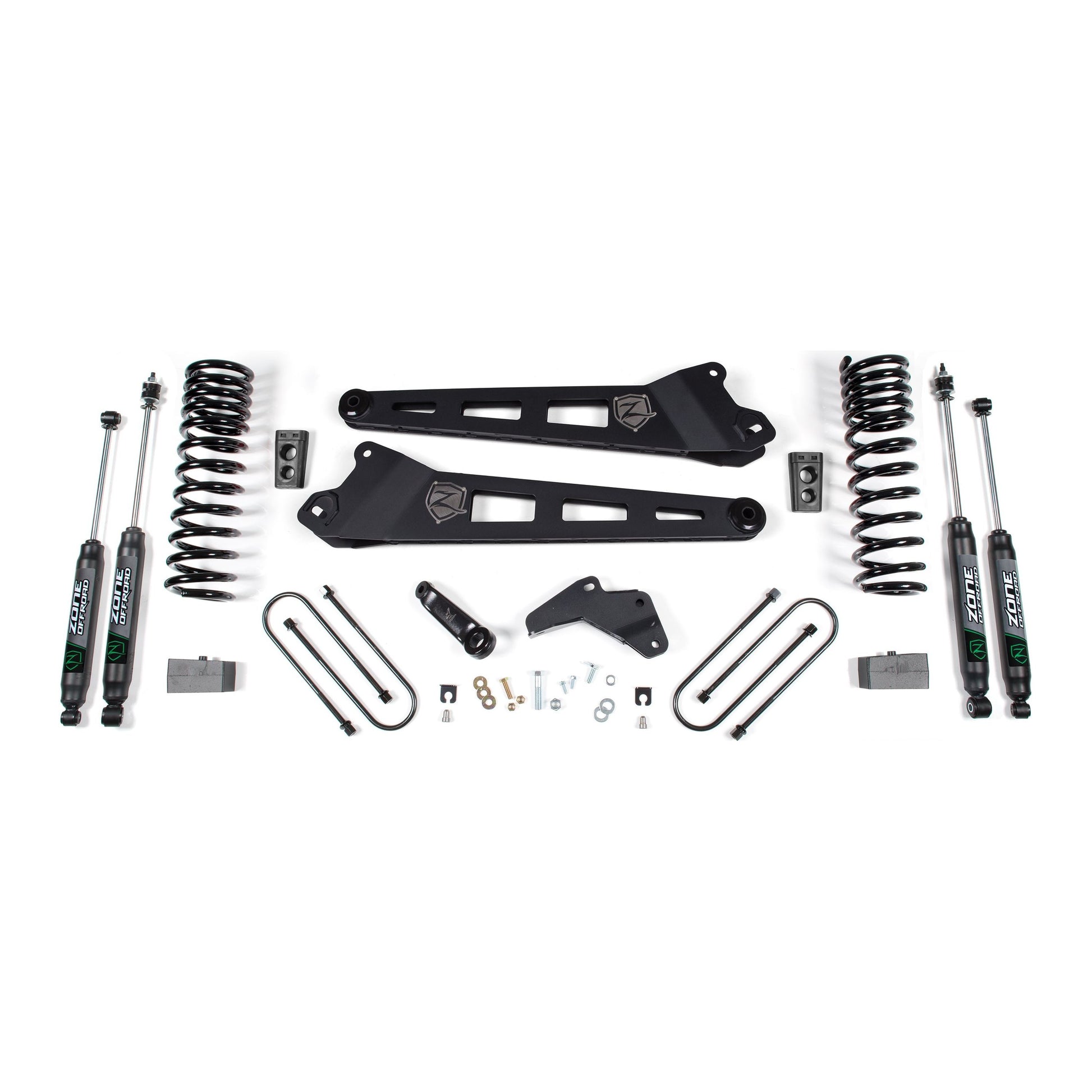

In The Box:

• All Necessary Mounting / Installation Hardware
• Bump Stops
• Coil Springs
• Dropped Pitman Arm
• Rear Lift Block & U-Bolt Kit
• Sway Bar Relocation Brackets
• Track Bar Relocation Bracket
• Radius Arms

Features:

• Progressive rate front coil springs improve ride quality and offroad performance
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Replacement rear lift blocks and u-bolts to lift and level the stance

Kit Components:

• ZON7742 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595620
• ZON7759 Nitro 29.80 x 17.60 x 2-3/8 EB1/EB1 2 711745595750
• ZOND1207 Ram Rear 2 Inch Block Kit 4 Inch U-bolts 1 711745597969
• ZOND1402 13 Ram 4.5 Inch Replacement Radius Arm Box Kit 1 711745598034
• ZOND1410 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Replacement Radius Arm Box Kit 2 711745594296
• ZOND3401 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 4.5 Inch Diesel 5.5 Inch Gas 1 711745598560
• ZOND3402 13 3500/14 2500 Ram 4.5 Inch Coils-Pass Diesel 1 711745598577
