ZONE OFFROAD | 19-23 Silverado/Sierra 1500 3.5 Inch Adventure Series Lift Kit With Nitro Shocks Zone Offroad | ZONC47N

More than a leveling kit, this 3.5 Inch Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35 Inch tires.

These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5 Inch of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer).

Optional weld-in steering stops are supplied allowing clearance for up to 35 Inch tires. In the rear of this kit, a cast 2 Inch lift block lifts and levels.
Quick Specs:

• Front Lift Height 3.5 Inch
• Material Steel
• Front Lift Method Strut Spacers
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 20 x 9
• Back Spacing 5.5 Inch
• Max Tire Size 35x12.50 (Chevy)
• Max Tire Size 2 35x12.50 (GMC)
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels No
• Welding Required No

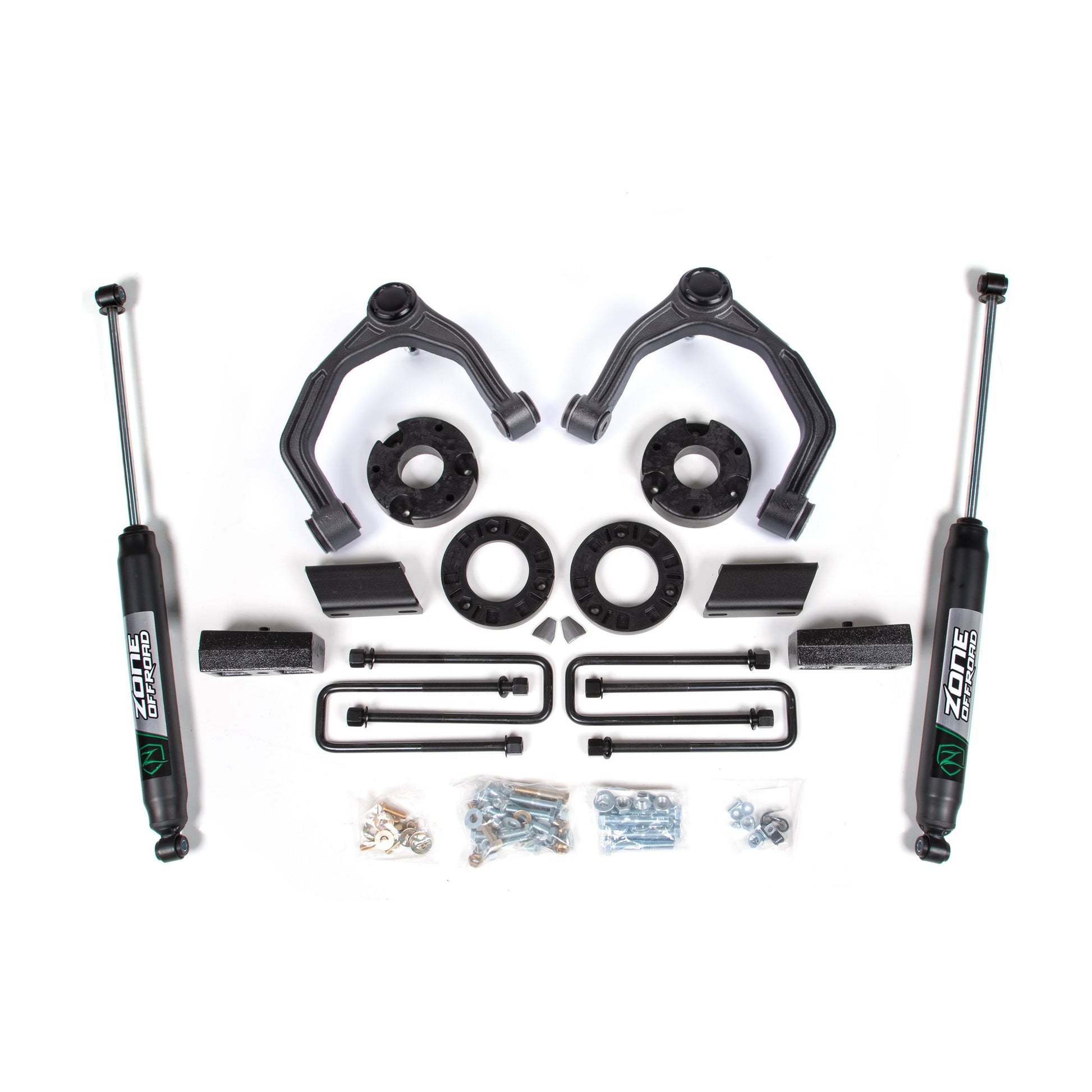

In The Box:

• Rear Lift Block & U-Bolt Kit
• Strut Spacers
• Upper Control Arms

Features:

• High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
• Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
• Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
• Maintains ride and handling characteristics with clearance for larger tires.
• 2 Inch rear lift blocks and heavy duty u-bolts to level the stance.
• Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance.
• Optional Steering Stops included for larger wheel/tire combinations

Kit Components:

• ZON7719 Nitro- 26.20 x 15.65 x 2-3/8 EB1/EB1 2 711745595613
• ZONC2353 2019-2024 Chevrolet Silverado/GMC Sierra 1500 3.5 Inch Adventure Series Box Kit 1 711745612679
