ZONE OFFROAD | 6" Lift Kit | 25-27 Ram 1500 4WD | Select Kit Options

ZONE OFFROAD | 6" Lift Kit | 25-27 Ram 1500 4WD

Lift Height: 6"

Position: Front and Rear

Configurations

• Standard / Strut Spacer / FOX Adventure Series — ZOND149F
• Standard / Loaded Strut / Nitro Series — ZOND149LN
• Standard / Strut Spacer / Nitro Series — ZOND149N

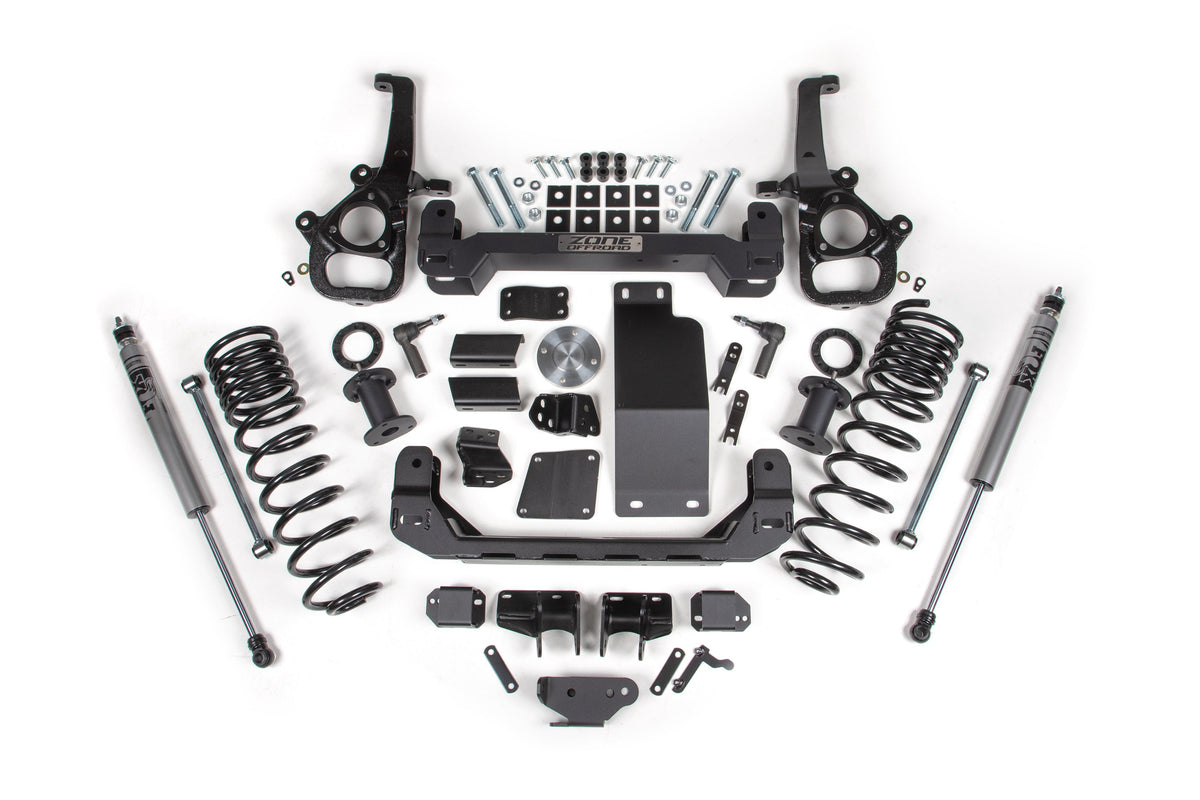

• Large Bore / Strut Spacer / FOX Adventure Series — ZOND150F
• Large Bore / Loaded Strut / Nitro Series — ZOND150LN

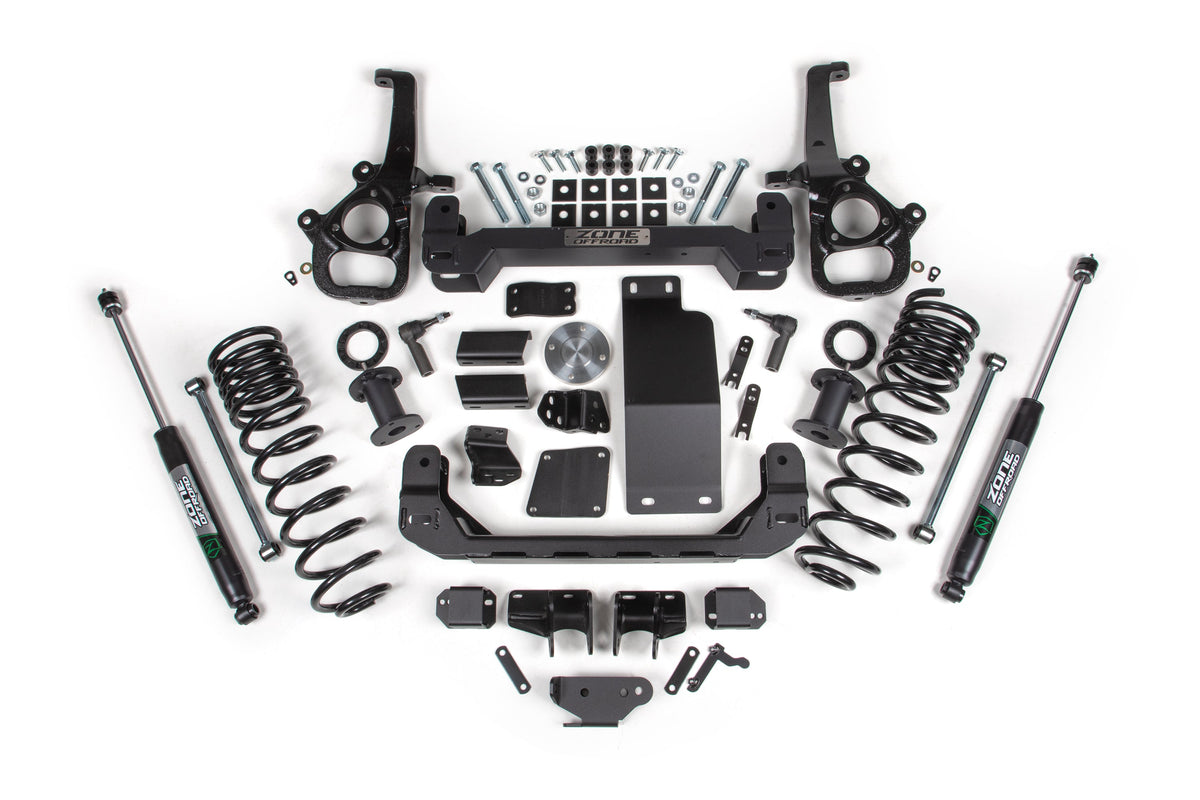

• Large Bore / Strut Spacer / Nitro Series — ZOND150N

Installation requirements

1. Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines.
2. Will NOT fit 2019-2024 RAM 1500 Classic models, Refer to the 2018 kit listings.
3. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P.
4. Vehicles equipped with the OffRoad Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the “Optional Equipment” section there will be a line item that reads “Off-Road Group” if your truck is equipped.

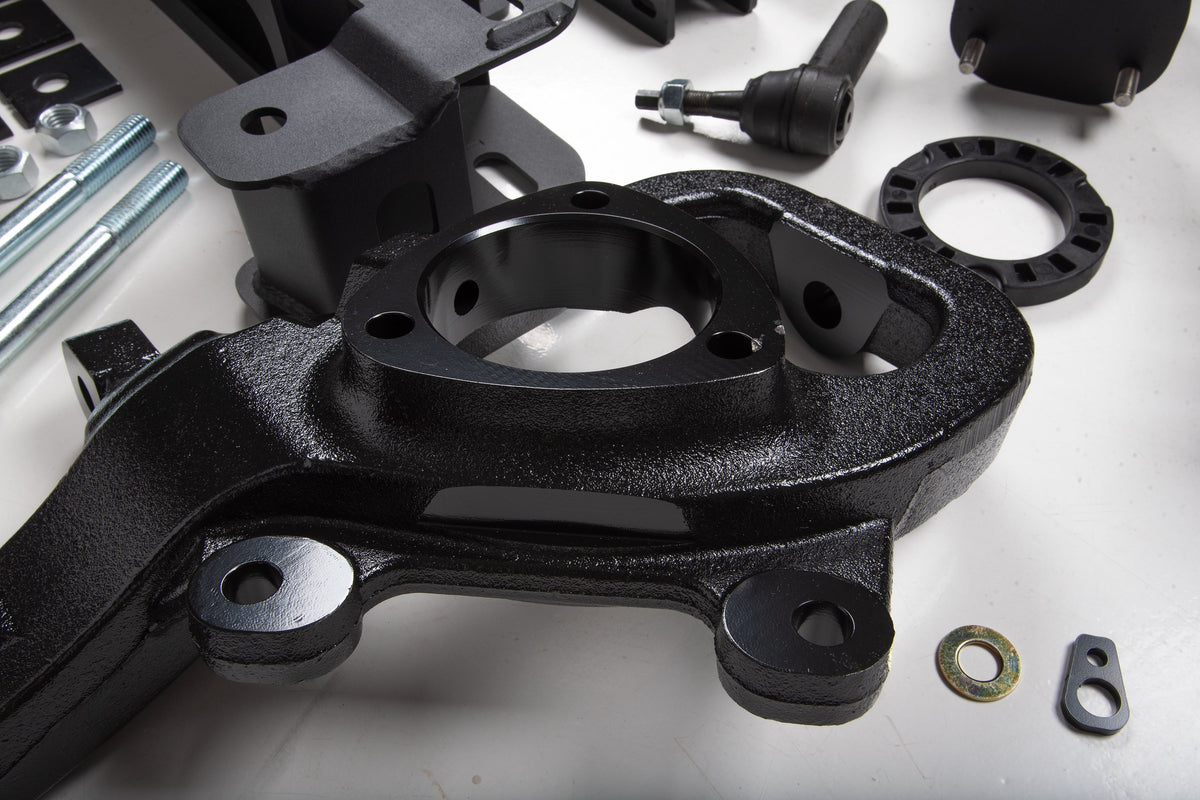

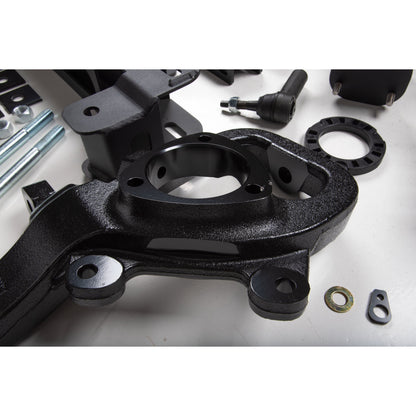

5. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
6. Stock 18" wheels cannot be reinstalled due to steering interference.
7. Stock 20s and 22s can be reinstalled with factory tire size.
8. This kit will NOT work on Diesel models.
9. Does NOT work for models with factory airbag suspension.
10. If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
11. Disconnect BOTH batteries (if equipped), Main and Auxilary before performing install, more detail in instructions.
12. Bumper Spacer Kit (ZOND5802) recommended for additional tire-to-fender clearance. Sold separately.
13. IF USING 18IN AFTERMARKET WHEELS WITH 4.5IN BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE

Vehicle fitment

Applications below are subject to the manufacturer restrictions shown first.

1. Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines.
2. Will NOT fit 2019-2024 RAM 1500 Classic models, Refer to the 2018 kit listings.
3. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P.
4. Vehicles equipped with the OffRoad Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the “Optional Equipment” section there will be a line item that reads “Off-Road Group” if your truck is equipped.
5. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
6. Stock 18" wheels cannot be reinstalled due to steering interference.
7. Stock 20s and 22s can be reinstalled with factory tire size.
8. This kit will NOT work on Diesel models.
9. Does NOT work for models with factory airbag suspension.
10. If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
11. Disconnect BOTH batteries (if equipped), Main and Auxilary before performing install, more detail in instructions.
12. Bumper Spacer Kit (ZOND5802) recommended for additional tire-to-fender clearance. Sold separately.
13. IF USING 18IN AFTERMARKET WHEELS WITH 4.5IN BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE

• 2025 Ram / 1500 / Big Horn / Drive: 4WD — Front and Rear / 6"
• 2025 Ram / 1500 / Laramie / Drive: 4WD — Front and Rear / 6"
• 2025 Ram / 1500 / Laramie Sport — Front and Rear / 6"
• 2025 Ram / 1500 / Limited — Front and Rear / 6"
• 2025 Ram / 1500 / Limited Longhorn — Front and Rear / 6"
• 2025 Ram / 1500 / Lone Star / Drive: 4WD — Front and Rear / 6"
• 2025 Ram / 1500 / Special Service — Front and Rear / 6"
• 2025 Ram / 1500 / Sport — Front and Rear / 6"
• 2025 Ram / 1500 / Tradesman / Drive: 4WD — Front and Rear / 6"
• 2025 Ram / 1500 / Tungsten — Front and Rear / 6"
• 2025 Ram / 1500 / Warlock — Front and Rear / 6"

Manufacturer specifications by option

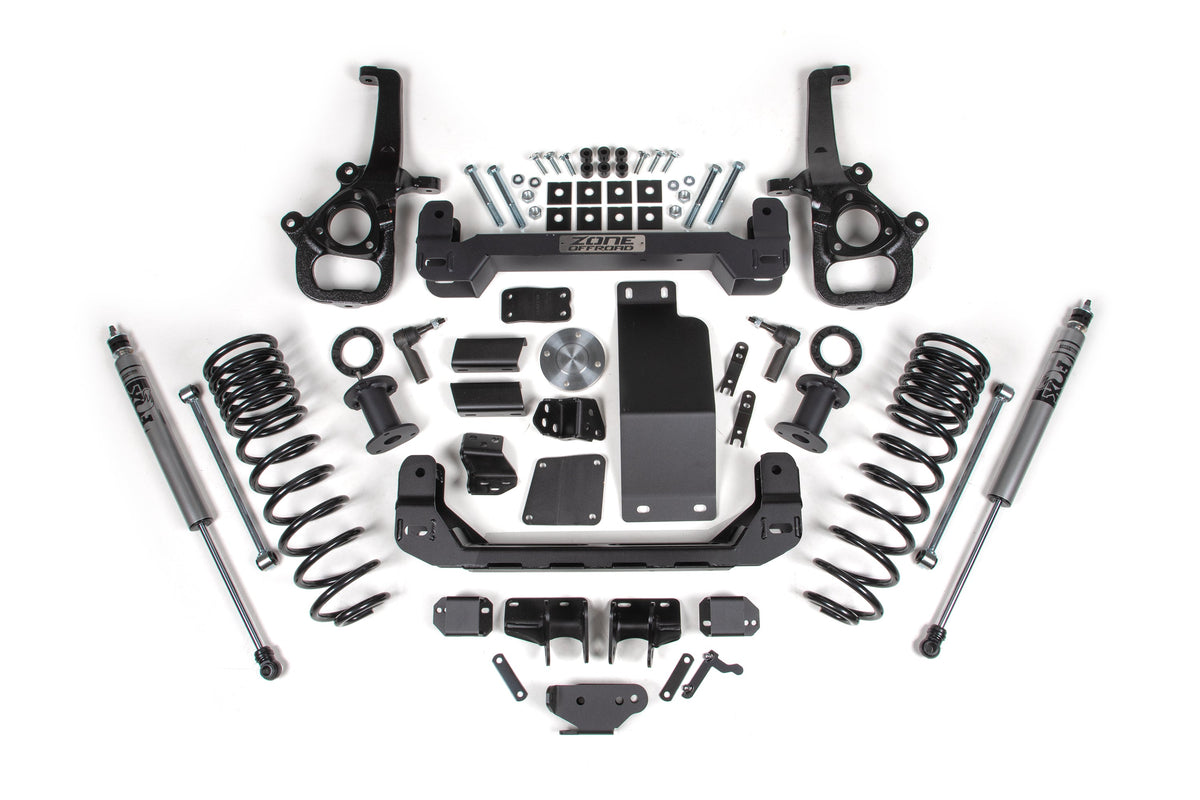

ZOND149F

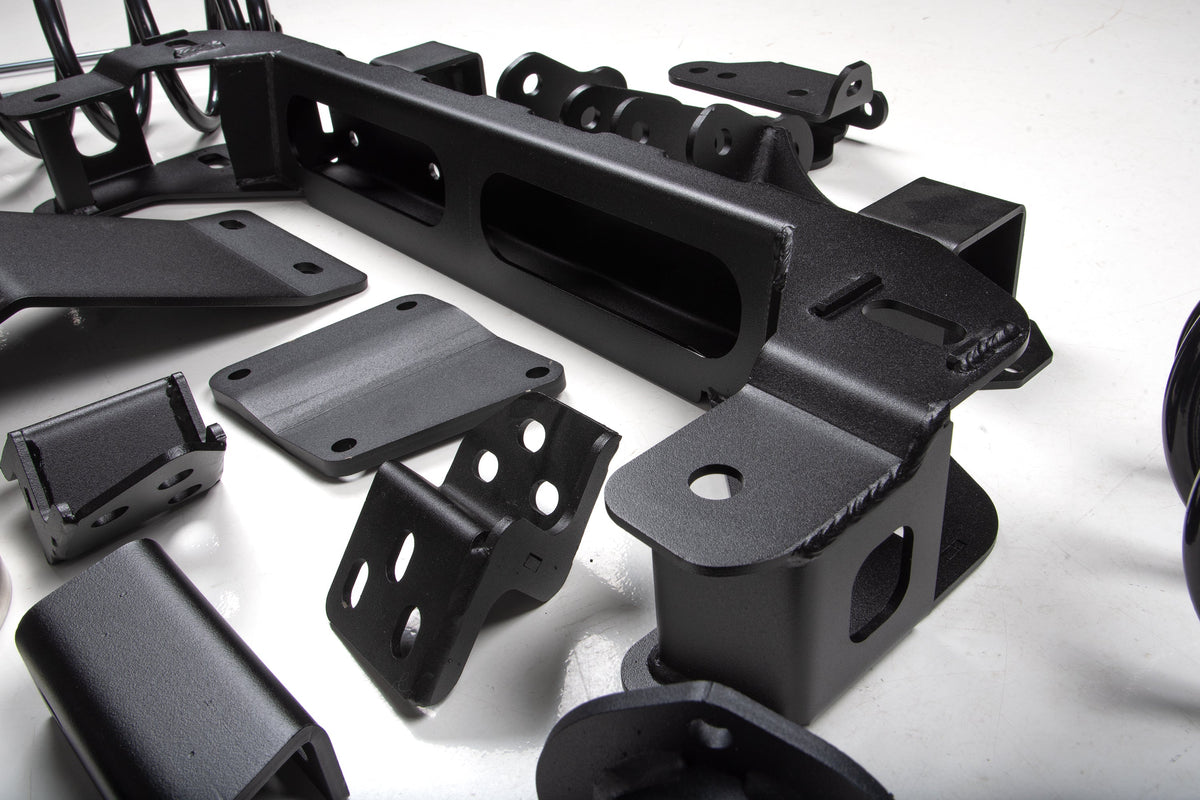

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6-7.5"

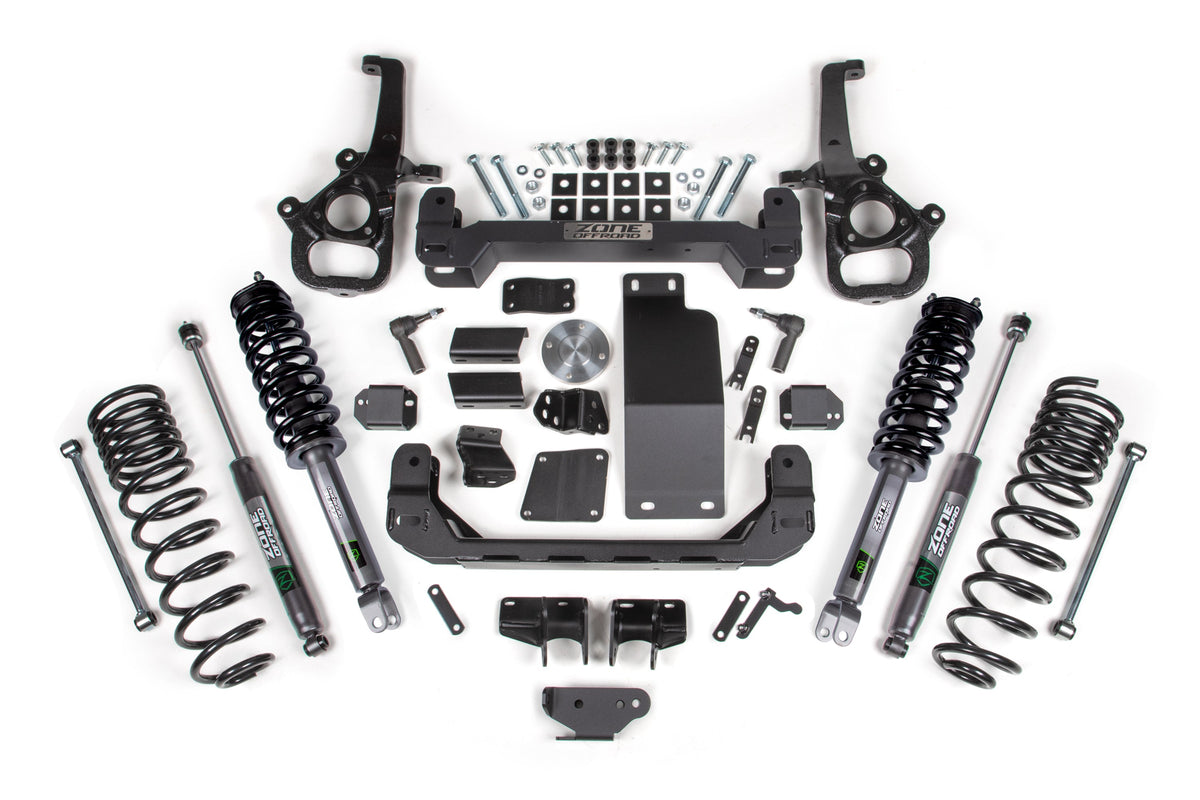

ZOND149LN

• Front Lift Method : Strut Replacement
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6-7.5"

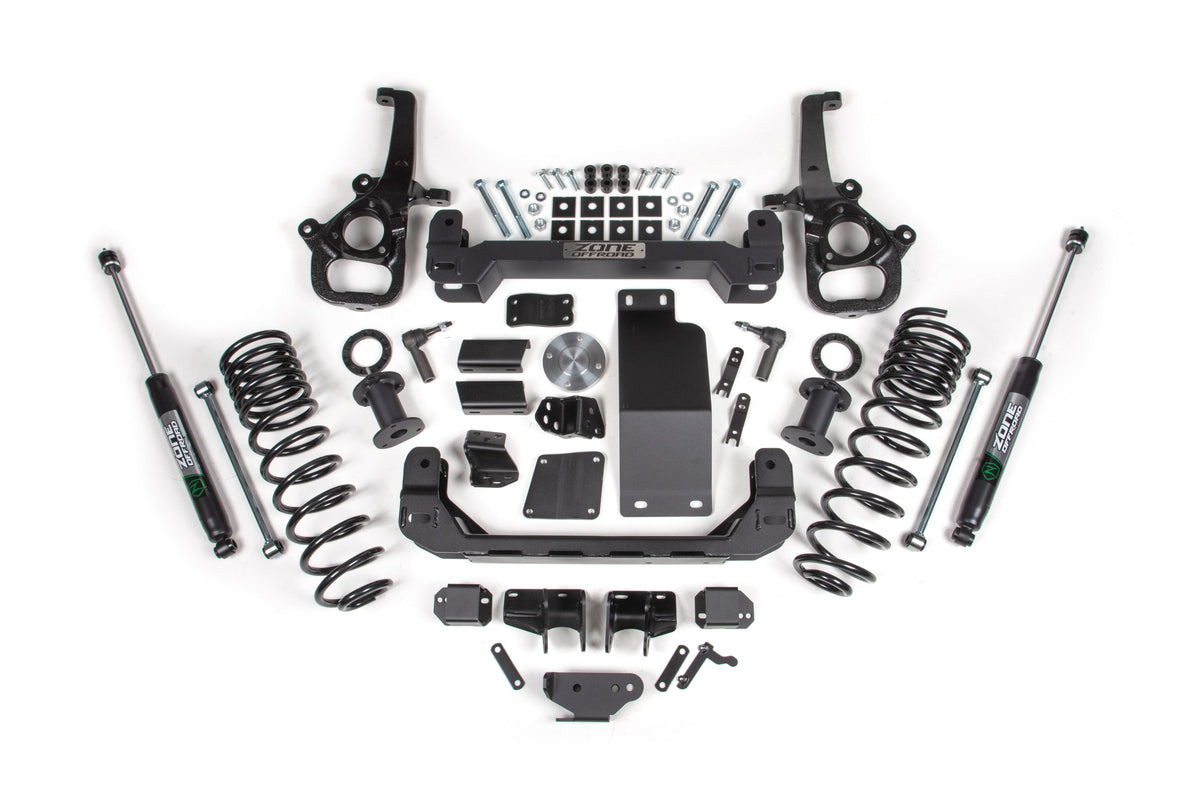

ZOND149N

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6"

ZOND150F

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6"

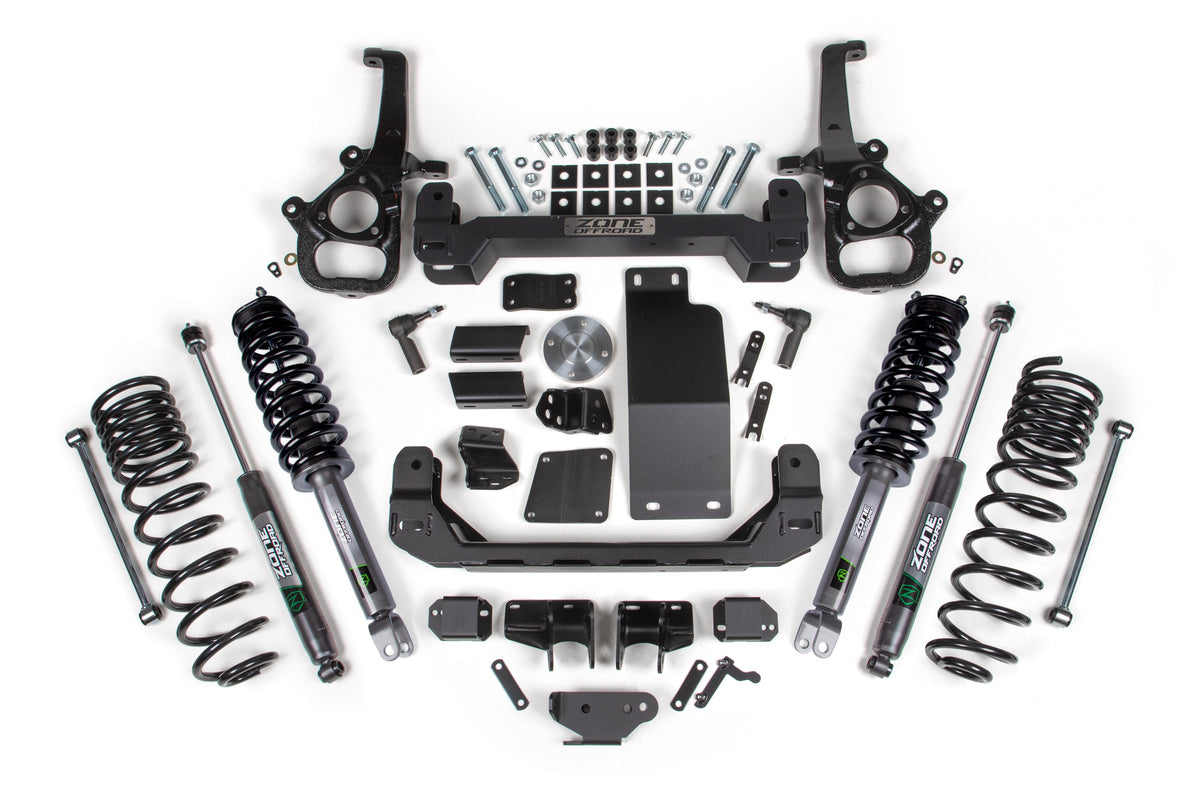

ZOND150LN

• Front Lift Method : Strut Replacement
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6-7.5"

ZOND150N

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 6"
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6"
