ZONE OFFROAD | 6" Lift Kit | 19-24 Ram 1500 4WD | Select Kit Options

Name: ZONE OFFROAD | 6" Lift Kit | 19-24 Ram 1500 4WD | Select Kit Options
Brand: ZONE OFFROAD
SKU: ZON-D96F
Price: 2607.81 CAD
Availability: InStock

PART#: PART#: ZON-D96F

Fits your vehicle

$2,607.81

Sale

Shipping calculated at checkout.

✓ In stock online Ready to ship 28 available

Product variants

Quantity

Select your delivery preference

Ship to homeShips in 3–10 business days

Local pickupNiagara Falls pickup depotReady in 3–7 daysWait for pickup confirmation

Confirm delivery or pickup at checkout.

Canadian Owned & Operated

Need help with fitment?Call or text 416-624-1357

View full details

Description

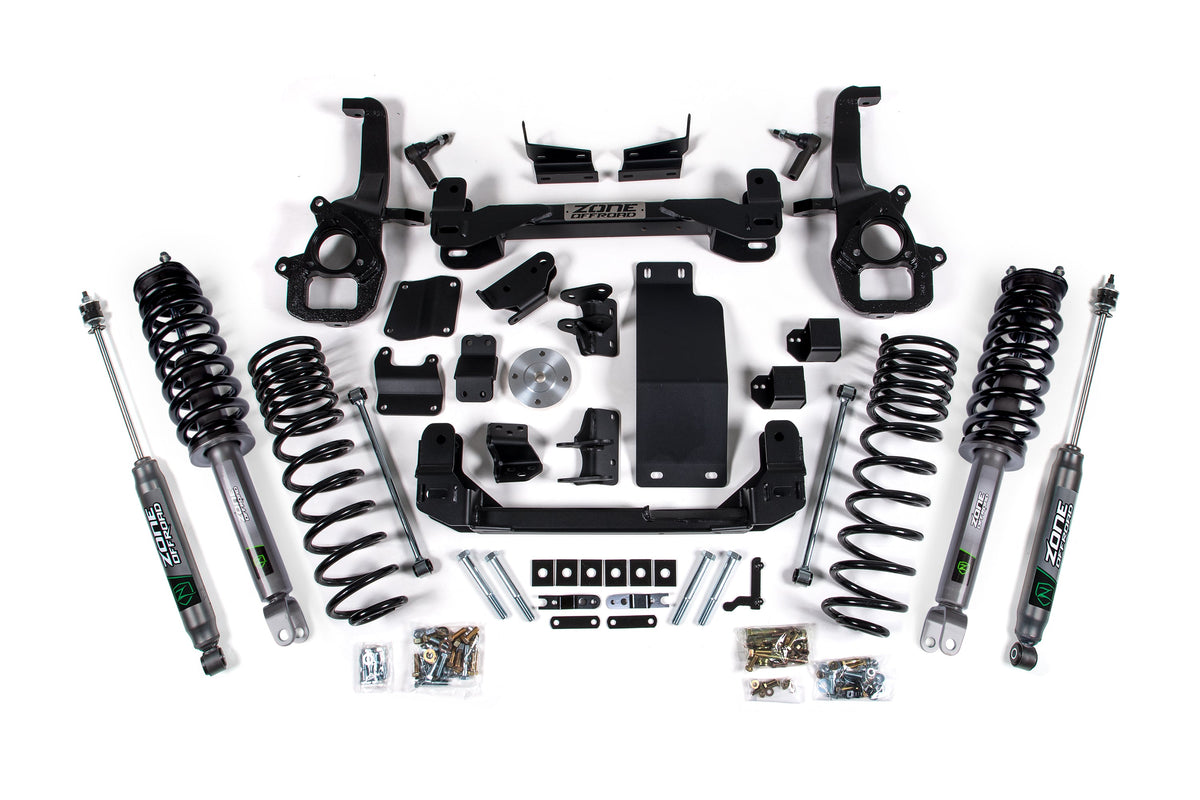

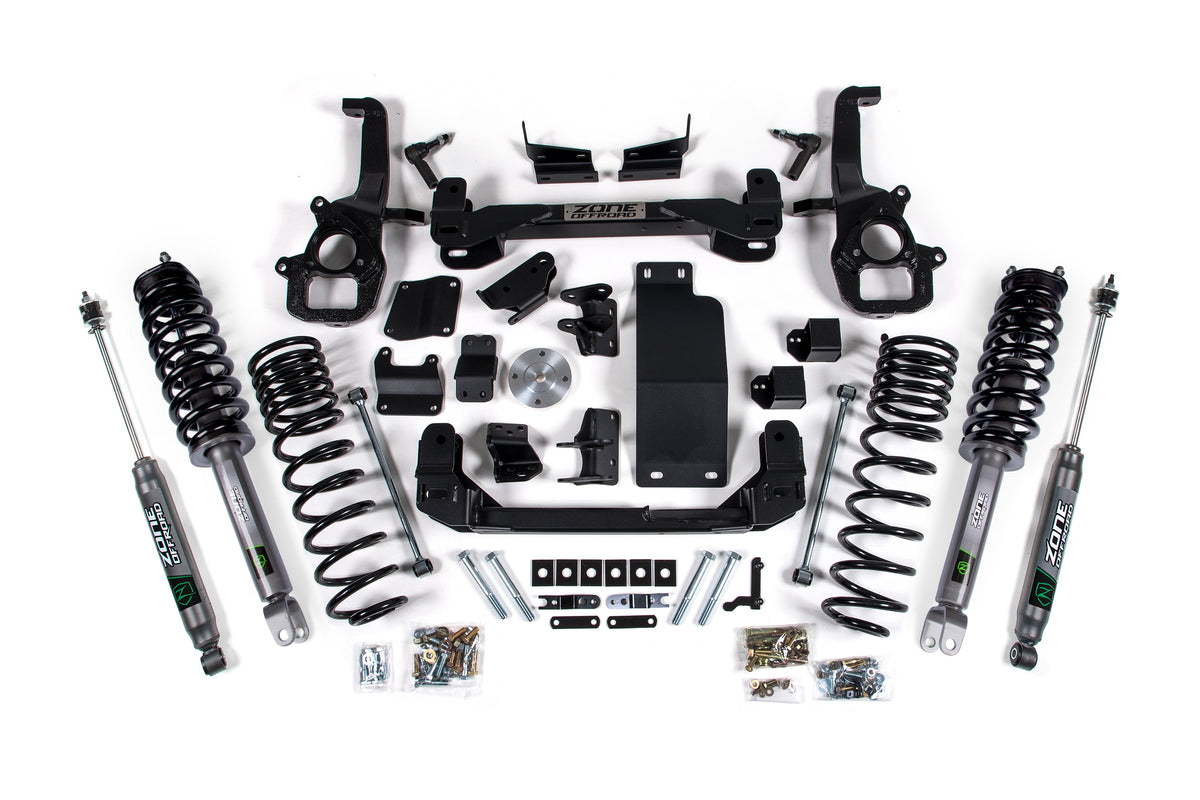

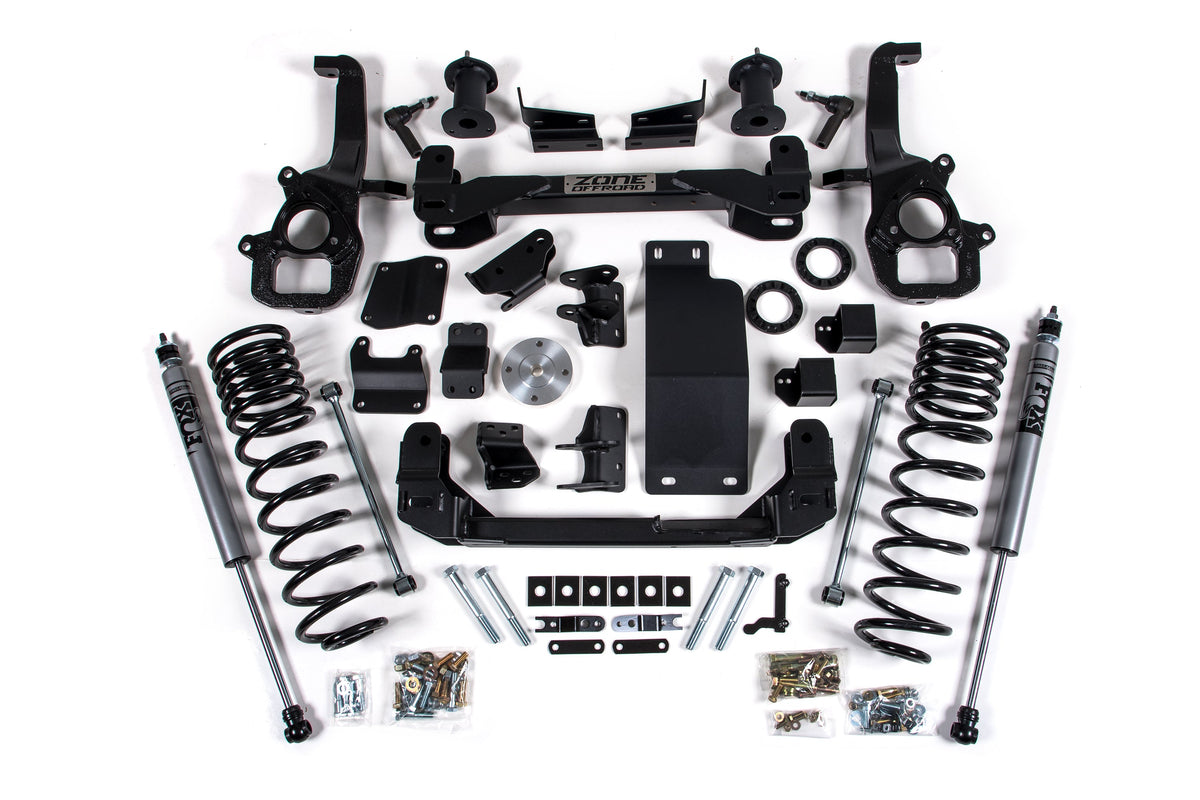

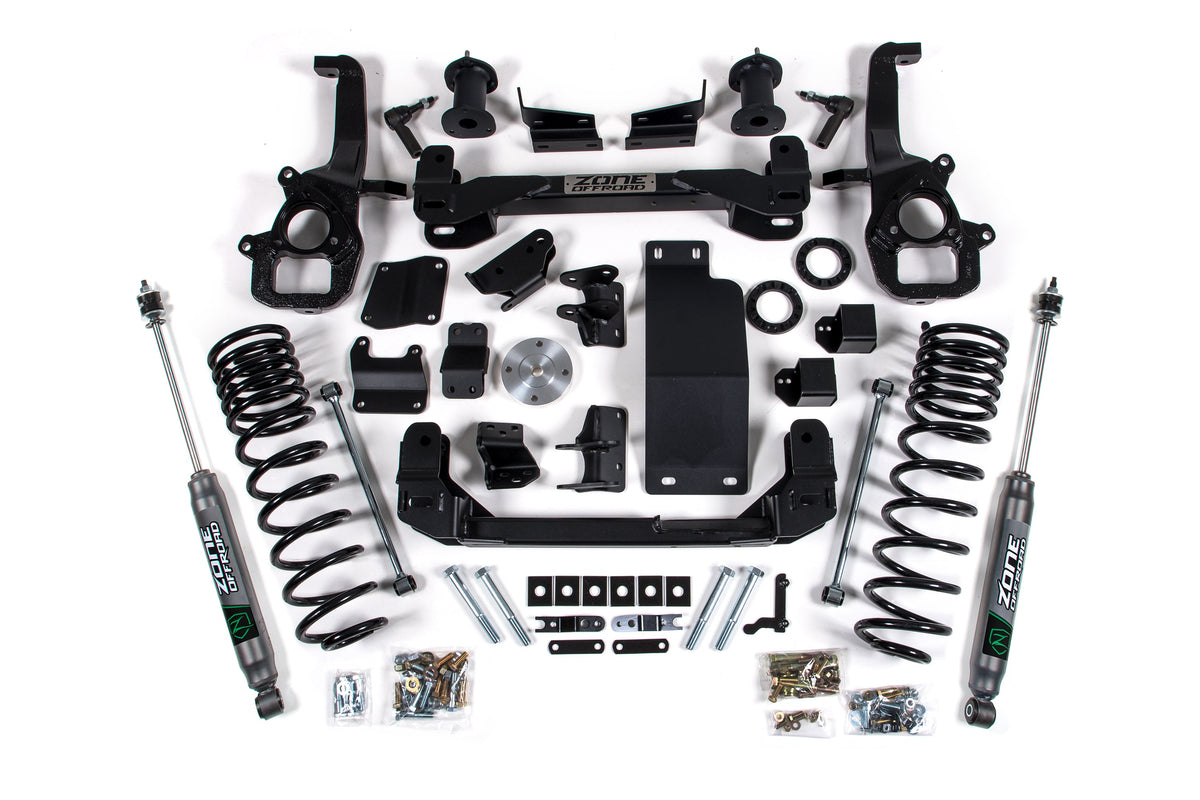

ZONE OFFROAD | 6" Lift Kit | 19-24 Ram 1500 4WD

Lift Height: 6"

Configurations

Standard / Strut Spacer / FOX Adventure Series — ZOND96F
Standard / Loaded Strut / Nitro Series — ZOND96LN
Standard / Strut Spacer / Nitro Series — ZOND96N
Large Bore / Strut Spacer / FOX Adventure Series — ZOND97F
Large Bore / Loaded Strut / Nitro Series — ZOND97LN
Large Bore / Strut Spacer / Nitro Series — ZOND97N

Installation requirements

Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Stock 20s can be reinstalled with factory tire size.
This kit will NOT work on Diesel models.
Does NOT work for models with factory rear airbag suspension.
If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
*IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.

Vehicle fitment

Applications below are subject to the manufacturer restrictions shown first.

Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Stock 20s can be reinstalled with factory tire size.
This kit will NOT work on Diesel models.
Does NOT work for models with factory rear airbag suspension.
If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
*IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.

2019, 2024 Ram / 1500 / Big Horn / Drive: 4WD
2020–2023 Ram / 1500 / Big Horn / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Big Horn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2023 Ram / 1500 / Big Horn OffRoad
2020–2023 Ram / 1500 / Hemi Sport
2019, 2024 Ram / 1500 / Laramie / Drive: 4WD
2020–2023 Ram / 1500 / Laramie / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Laramie / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019 Ram / 1500 / Laramie Longhorn / Drive: 4WD
2020–2021 Ram / 1500 / Laramie Longhorn / Drive: 4WD / Fuel: GAS
2020–2021 Ram / 1500 / Laramie Longhorn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019–2024 Ram / 1500 / Laramie Sport
2019, 2024 Ram / 1500 / Limited / Drive: 4WD
2020–2023 Ram / 1500 / Limited / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Limited / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2024 Ram / 1500 / Limited Longhorn / Drive: 4WD
2021–2023 Ram / 1500 / Limited Longhorn / Drive: 4WD / Fuel: GAS
2021–2023 Ram / 1500 / Limited Longhorn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019, 2024 Ram / 1500 / Lone Star / Drive: 4WD
2020–2023 Ram / 1500 / Lone Star / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Lone Star / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019–2020, 2022–2024 Ram / 1500 / Longhorn
2021 Ram / 1500 / Longhorn / Drive: 4WD / Fuel: GAS
2021 Ram / 1500 / Longhorn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019, 2024 Ram / 1500 / Rebel / Drive: 4WD
2020–2023 Ram / 1500 / Rebel / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Rebel / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019–2023 Ram / 1500 / SLT / Drive: 4WD
2019 Ram / 1500 / ST / Drive: 4WD
2019 Ram / 1500 / SXT / Drive: 4WD
2020–2021 Ram / 1500 / Special Service
2024 Ram / 1500 / Sport
2022–2023 Ram / 1500 / Sport / Fuel: GAS
2019 Ram / 1500 / Sport / Drive: 4WD
2020–2021 Ram / 1500 / Sport / Drive: 4WD / Fuel: GAS
2019, 2024 Ram / 1500 / Tradesman / Drive: 4WD
2020–2023 Ram / 1500 / Tradesman / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Tradesman / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)

Manufacturer specifications by option

ZOND96F

Front Lift Method : Strut Spacer
Front Lift Height : 6"
Rear Lift Method : Coil Spring
Rear Lift Height : 5"
Shocks Included : Yes

ZOND96LN

Front Lift Method : Strut Replacement
Front Lift Height : 6"
Rear Lift Method : Coil Spring
Rear Lift Height : 5"
Shocks Included : Yes
Lift Height : 6-7.5"

ZOND96N

Front Lift Method : Strut Spacer
Front Lift Height : 6"
Rear Lift Method : Coil Spring
Rear Lift Height : 5"
Shocks Included : Yes

ZOND97F

Front Lift Method : Strut Spacer
Front Lift Height : 6"
Rear Lift Method : Coil Spring
Rear Lift Height : 5"
Shocks Included : Yes

ZOND97LN

Front Lift Method : Strut Replacement
Front Lift Height : 6"
Rear Lift Method : Coil Spring
Rear Lift Height : 5"
Shocks Included : Yes
Lift Height : 6-7.5"

ZOND97N

Front Lift Method : Strut Spacer
Front Lift Height : 6"
Rear Lift Method : Coil Spring
Rear Lift Height : 5"
Shocks Included : Yes

Fitment Table

Applications below are subject to the manufacturer restrictions shown first.

Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Stock 20s can be reinstalled with factory tire size.
This kit will NOT work on Diesel models.
Does NOT work for models with factory rear airbag suspension.
If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
*IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.

2019, 2024 Ram / 1500 / Big Horn / Drive: 4WD
2020–2023 Ram / 1500 / Big Horn / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Big Horn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2023 Ram / 1500 / Big Horn OffRoad
2020–2023 Ram / 1500 / Hemi Sport
2019, 2024 Ram / 1500 / Laramie / Drive: 4WD
2020–2023 Ram / 1500 / Laramie / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Laramie / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019 Ram / 1500 / Laramie Longhorn / Drive: 4WD
2020–2021 Ram / 1500 / Laramie Longhorn / Drive: 4WD / Fuel: GAS
2020–2021 Ram / 1500 / Laramie Longhorn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019–2024 Ram / 1500 / Laramie Sport
2019, 2024 Ram / 1500 / Limited / Drive: 4WD
2020–2023 Ram / 1500 / Limited / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Limited / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2024 Ram / 1500 / Limited Longhorn / Drive: 4WD
2021–2023 Ram / 1500 / Limited Longhorn / Drive: 4WD / Fuel: GAS
2021–2023 Ram / 1500 / Limited Longhorn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019, 2024 Ram / 1500 / Lone Star / Drive: 4WD
2020–2023 Ram / 1500 / Lone Star / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Lone Star / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019–2020, 2022–2024 Ram / 1500 / Longhorn
2021 Ram / 1500 / Longhorn / Drive: 4WD / Fuel: GAS
2021 Ram / 1500 / Longhorn / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019, 2024 Ram / 1500 / Rebel / Drive: 4WD
2020–2023 Ram / 1500 / Rebel / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Rebel / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
2019–2023 Ram / 1500 / SLT / Drive: 4WD
2019 Ram / 1500 / ST / Drive: 4WD
2019 Ram / 1500 / SXT / Drive: 4WD
2020–2021 Ram / 1500 / Special Service
2024 Ram / 1500 / Sport
2022–2023 Ram / 1500 / Sport / Fuel: GAS
2019 Ram / 1500 / Sport / Drive: 4WD
2020–2021 Ram / 1500 / Sport / Drive: 4WD / Fuel: GAS
2019, 2024 Ram / 1500 / Tradesman / Drive: 4WD
2020–2023 Ram / 1500 / Tradesman / Drive: 4WD / Fuel: GAS
2020–2023 Ram / 1500 / Tradesman / Drive: 4WD / Fuel: MILD HYBRID EV-GAS (MHEV)
