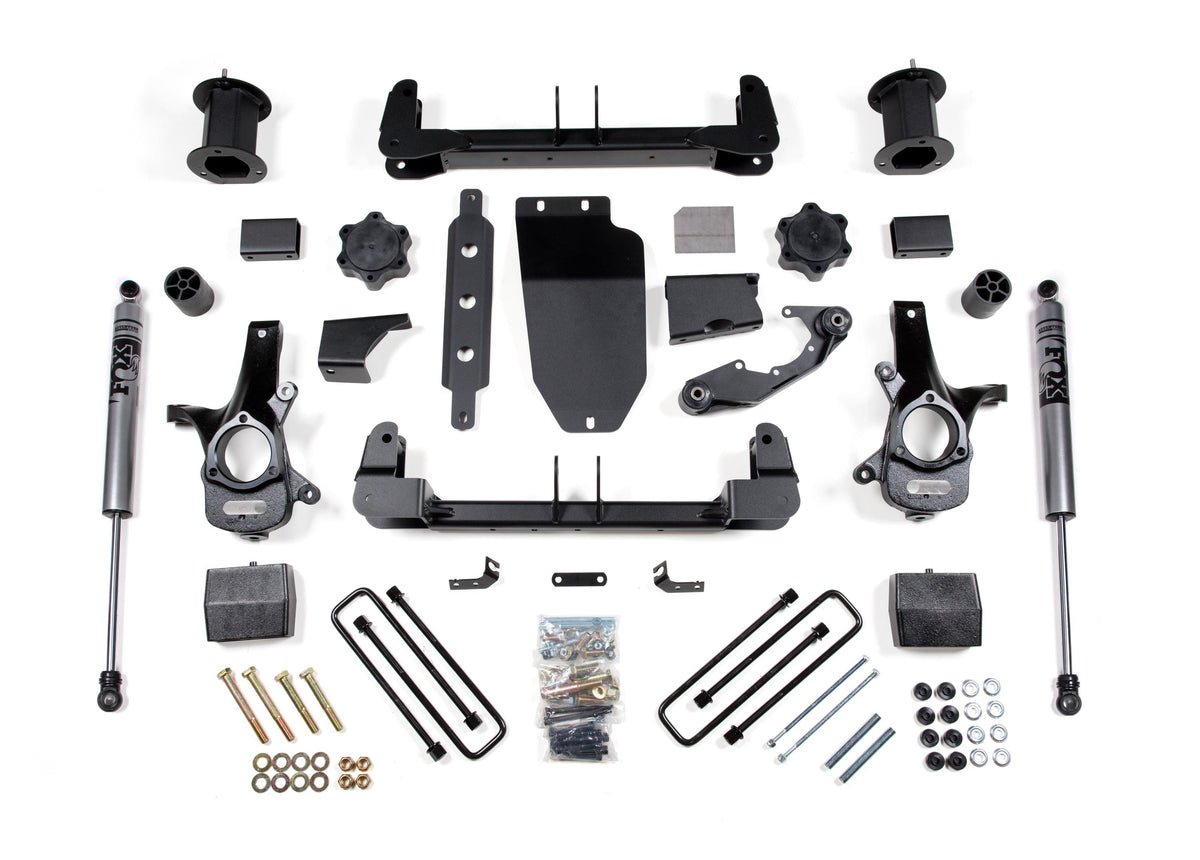

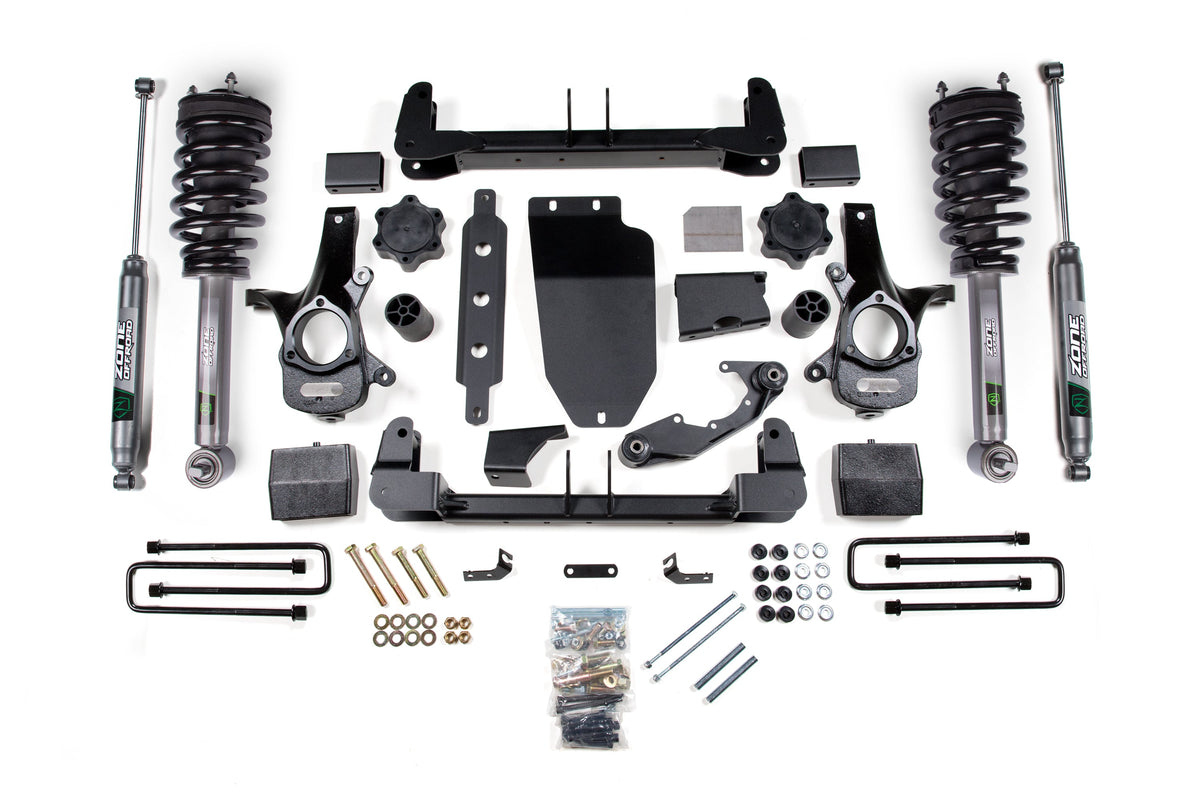

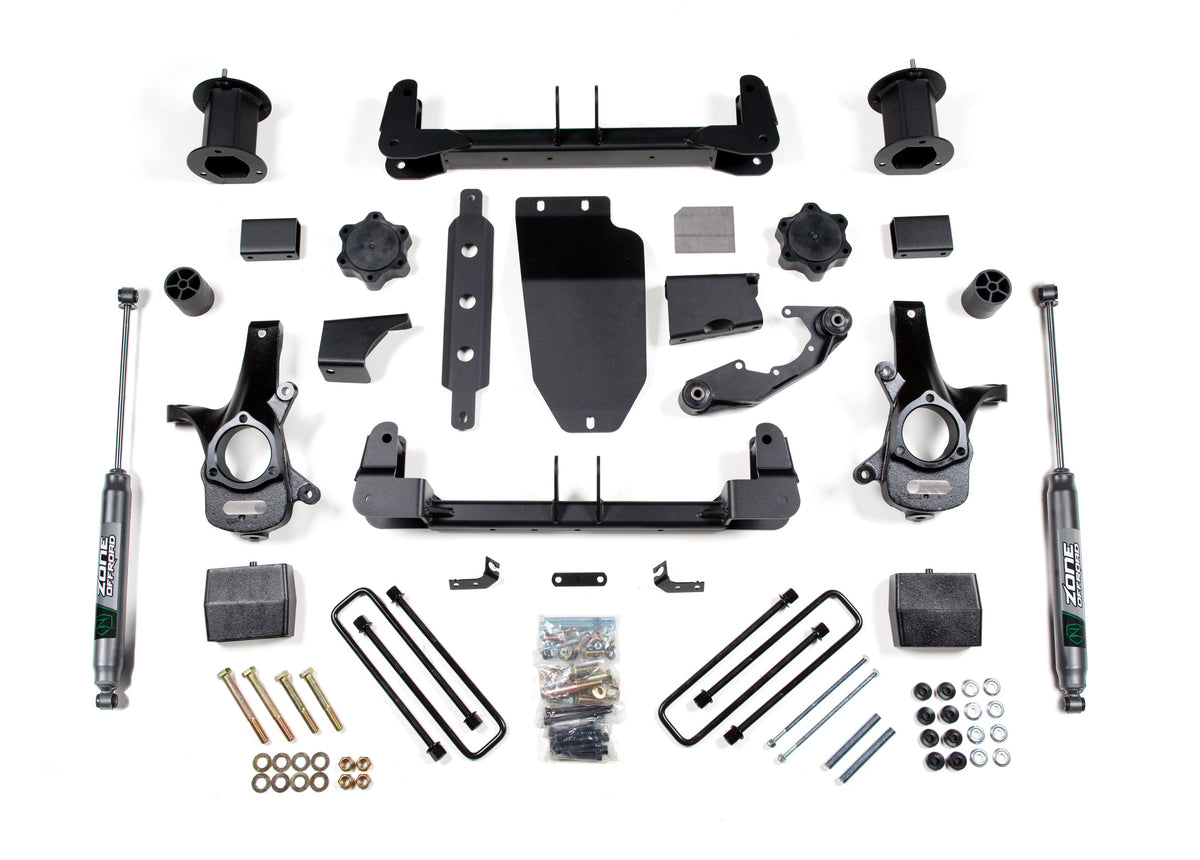

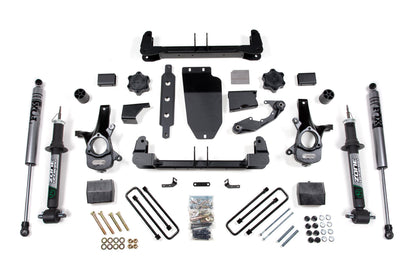

ZONE OFFROAD | 6.5" Lift Kit | 14-18 Chevy Silverado & GMC Sierra 1500 4WD | ZONC60N / ZONC59N

ZONE OFFROAD | 6.5" Lift Kit | 14-18 Chevy Silverado & GMC Sierra 1500 4WD

Lift Height: 6.5"

Configurations

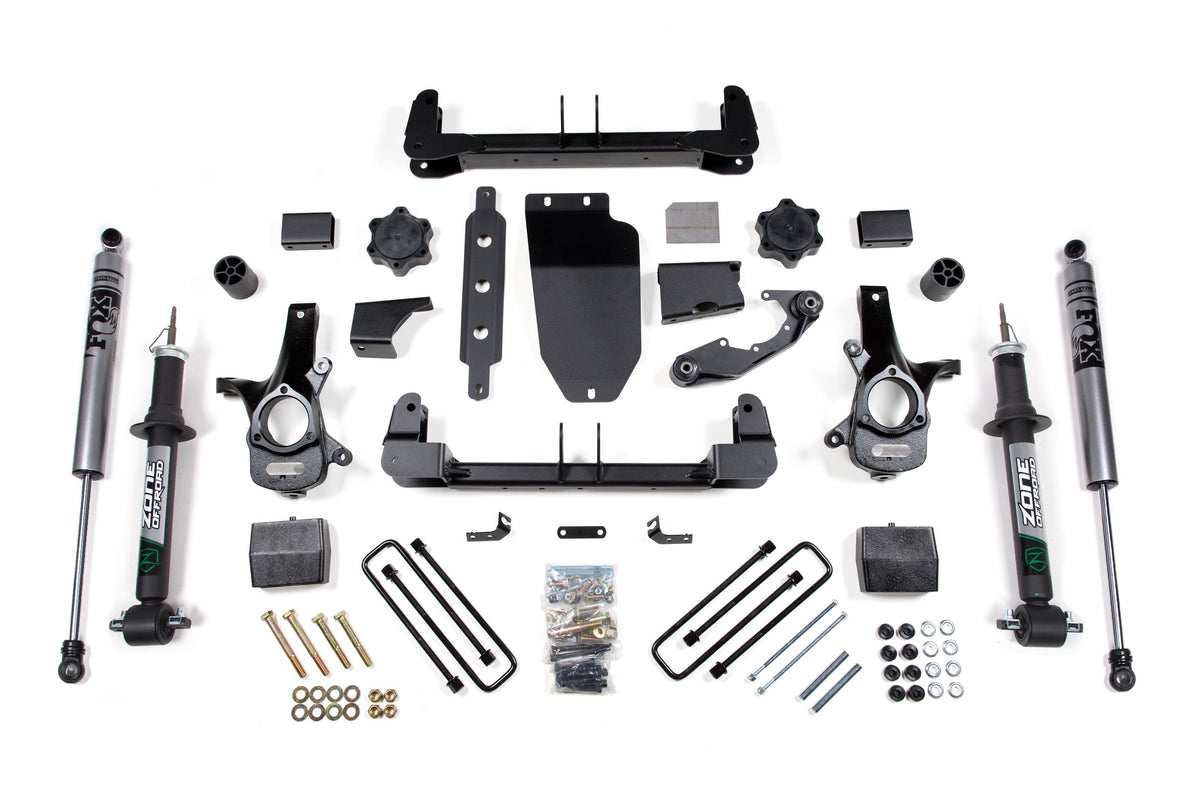

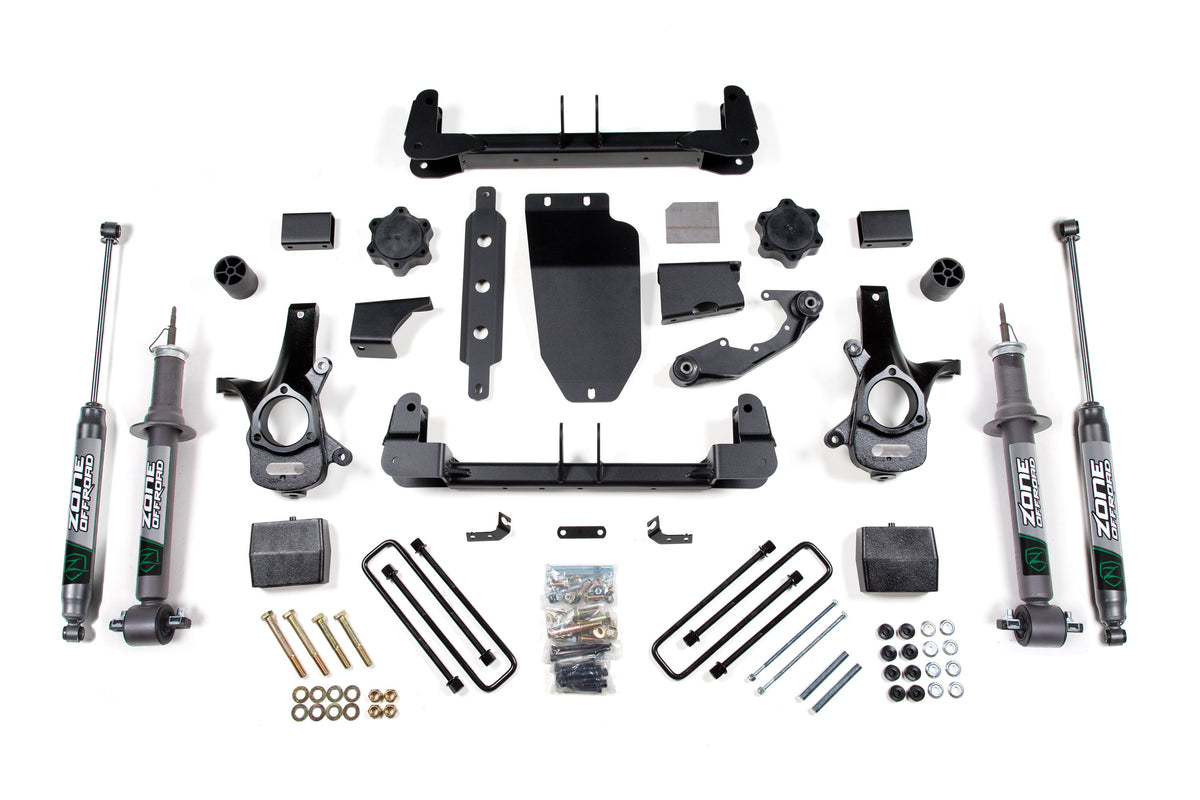

• Aluminum / Stamped Steel / Nitro Strut / Nitro Series — ZONC60N
• Cast Steel / Nitro Strut / Nitro Series — ZONC59N

Installation requirements

1. Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
2. Crew Cab? Add an Add-A-Leaf to your kit to offset the increased weight of the cab for a more level stance.
3. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
4. All wheel drive models may require front CV driveshaft. See installation instructions for more information.
5. Will NOT fit models equipped with MagneRide magnetic ride control.
6. Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
7. For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.75" backspacing.

Vehicle fitment

Applications below are subject to the manufacturer restrictions shown first.

1. Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
2. Crew Cab? Add an Add-A-Leaf to your kit to offset the increased weight of the cab for a more level stance.
3. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
4. All wheel drive models may require front CV driveshaft. See installation instructions for more information.
5. Will NOT fit models equipped with MagneRide magnetic ride control.
6. Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
7. For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.75" backspacing.

• 2015, 2017–2018 Chevrolet / Silverado 1500 / Drive: 4WD
• 2016 Chevrolet / Silverado 1500 / Custom / Drive: 4WD
• 2014, 2016 Chevrolet / Silverado 1500 / High Country / Drive: 4WD
• 2016 Chevrolet / Silverado 1500 / LS / Drive: 4WD
• 2014, 2016 Chevrolet / Silverado 1500 / LT / Drive: 4WD
• 2014 Chevrolet / Silverado 1500 / LTZ / Drive: 4WD
• 2016 Chevrolet / Silverado 1500 / LTZ / Drive: 4WD / Fuel: GAS
• 2016 Chevrolet / Silverado 1500 / SSV / Drive: 4WD
• 2014, 2016 Chevrolet / Silverado 1500 / WT / Drive: 4WD
• 2014–2018 GMC / Sierra 1500 / Drive: 4WD

Manufacturer specifications by option

ZONC60N

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 6.5"
• Rear Lift Method : Block
• Rear Lift Height : 5"
• Shocks Included : Yes

ZONC59N

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 6.5"
• Rear Lift Method : Block
• Rear Lift Height : 5"
• Shocks Included : Yes
