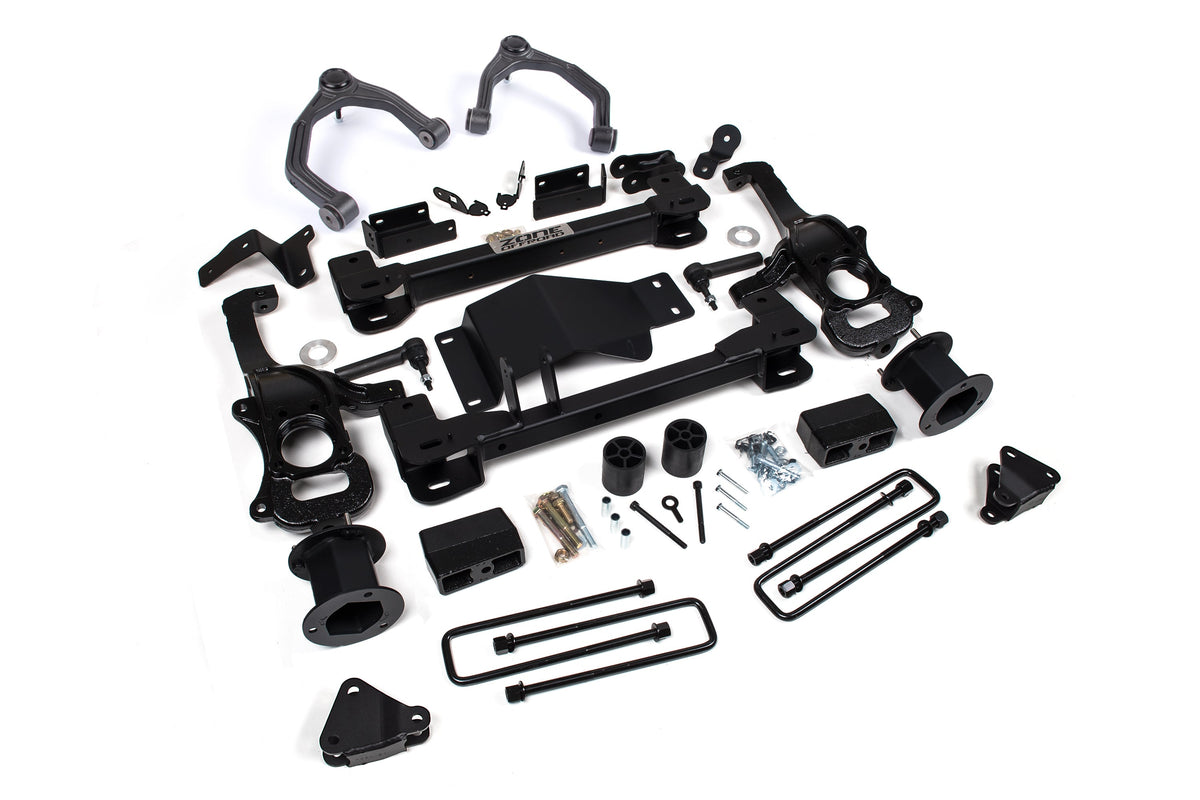

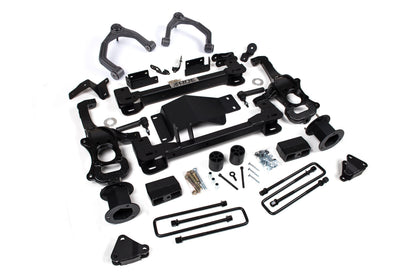

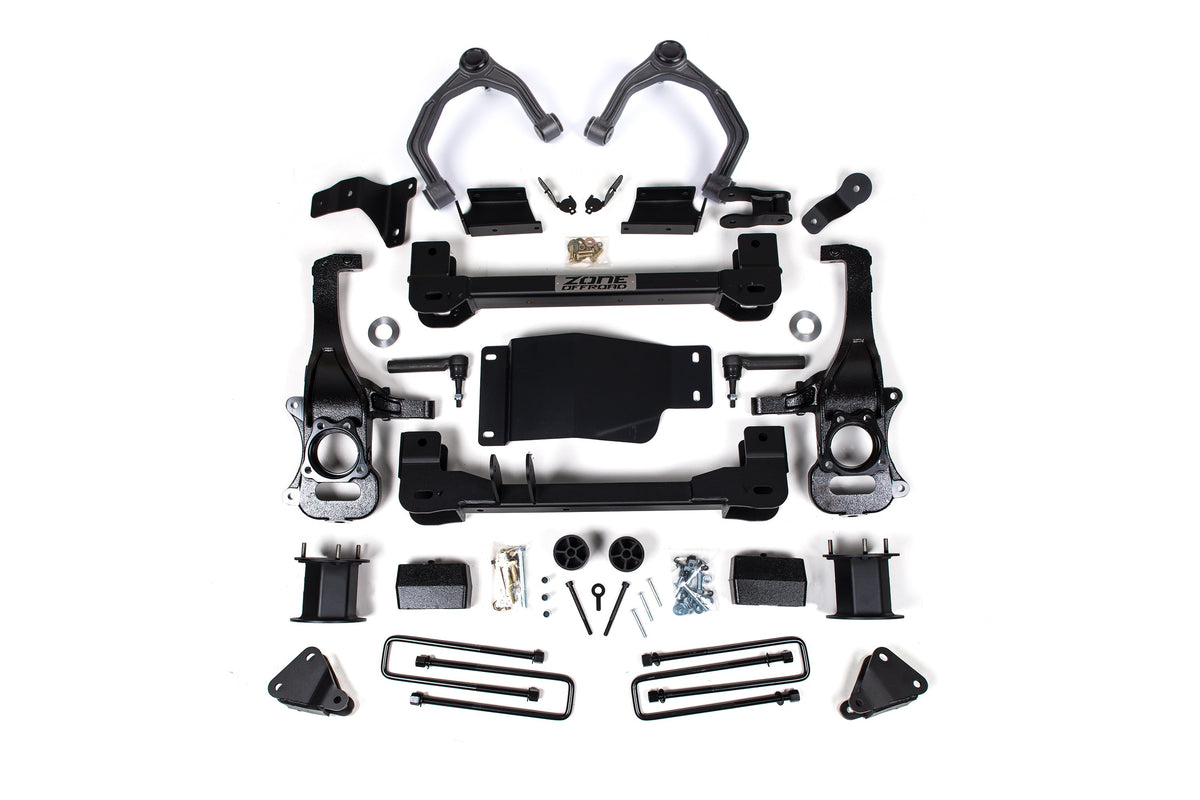

ZONE OFFROAD | 4" Lift Kit | 19-24 GMC Sierra 1500 Denali 4WD | C70

ZONE OFFROAD | 4" Lift Kit | 19-24 GMC Sierra 1500 Denali 4WD | C70

Lift Height: 4"

Position: Front and Rear

Configurations

• Default Title — ZONC70

Installation requirements

1. Fits Gas and Diesel Models.
2. Optional front skid plate will not work with 2.7L Turbo or Diesel Engines.
3. Requires frame bracket modification.
4. WILL work with Adaptive Ride Control (ARC) equipped models.
5. This system has not been tested on models equipped with Super Cruise.
6. If equipped with a mono-leaf rear spring, please use part #UBT4064. (QTY 4 Required.

Tire Fitments:

GMC: 295/70 on 17x8, 17x9 w/ 4.5" BS* 295/65 on 20x9 w/ 4.5-6.25" BS* 35 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS*

*Trimming may be required Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels CAN be reinstalled.

17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.

All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.

Vehicle fitment

Applications below are subject to the manufacturer restrictions shown first.

1. Fits Gas and Diesel Models.
2. Optional front skid plate will not work with 2.7L Turbo or Diesel Engines.
3. Requires frame bracket modification.
4. WILL work with Adaptive Ride Control (ARC) equipped models.
5. This system has not been tested on models equipped with Super Cruise.
6. If equipped with a mono-leaf rear spring, please use part #UBT4064. (QTY 4 Required.

Tire Fitments:

GMC: 295/70 on 17x8, 17x9 w/ 4.5" BS* 295/65 on 20x9 w/ 4.5-6.25" BS* 35 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS*

*Trimming may be required Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels CAN be reinstalled.

17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.

All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.

• 2019–2024 GMC / Sierra 1500 / Denali / Drive: 4WD — Front and Rear / 4"
• 2022–2024 GMC / Sierra 1500 / Denali Ultimate — Front and Rear / 4"

Manufacturer specifications by option

ZONC70

• Front Lift Method : Strut Spacer
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : No
• Lift Height : 4-5.5"
