ZONE OFFROAD | 4" Lift Kit | 21-26 Ford F150 4WD | Select Kit Options

ZONE OFFROAD | 4" Lift Kit | 21-26 Ford F150 4WD

Lift Height: 4"

Configurations

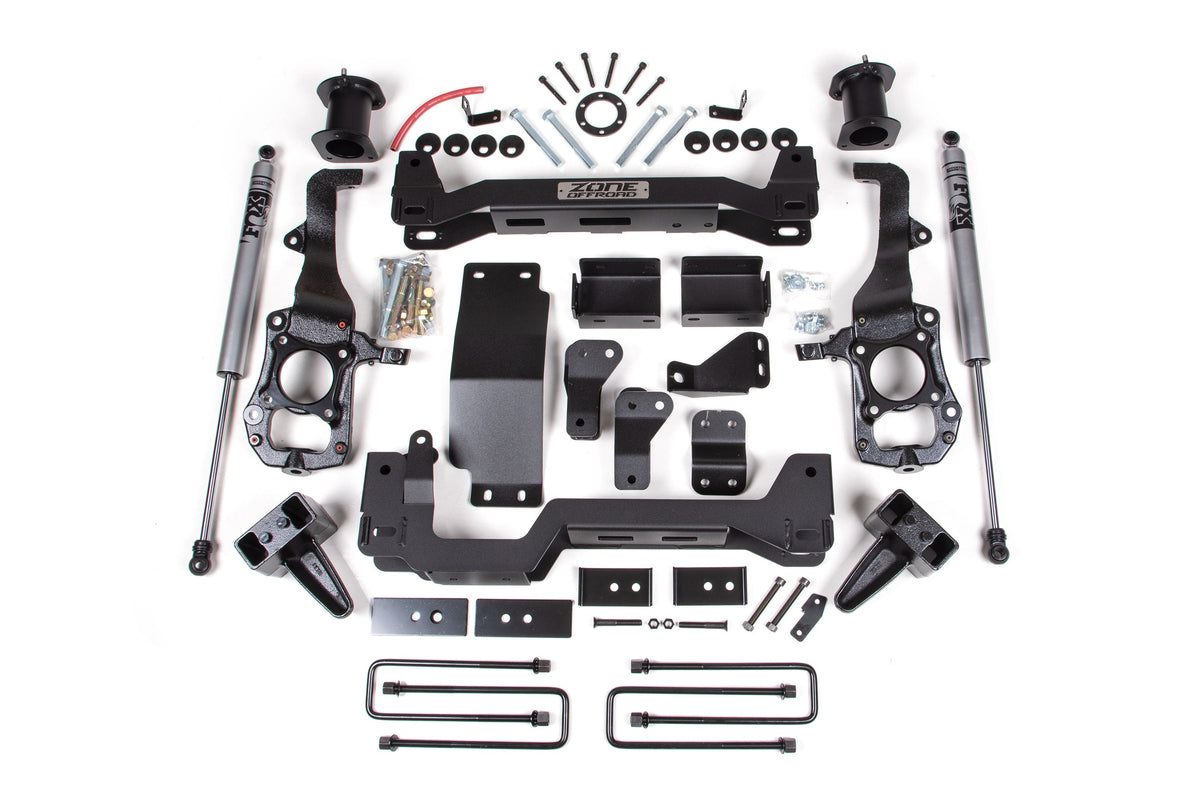

• Strut Spacer / FOX Adventure Series / 3 Inch Block Kit — ZONF91F

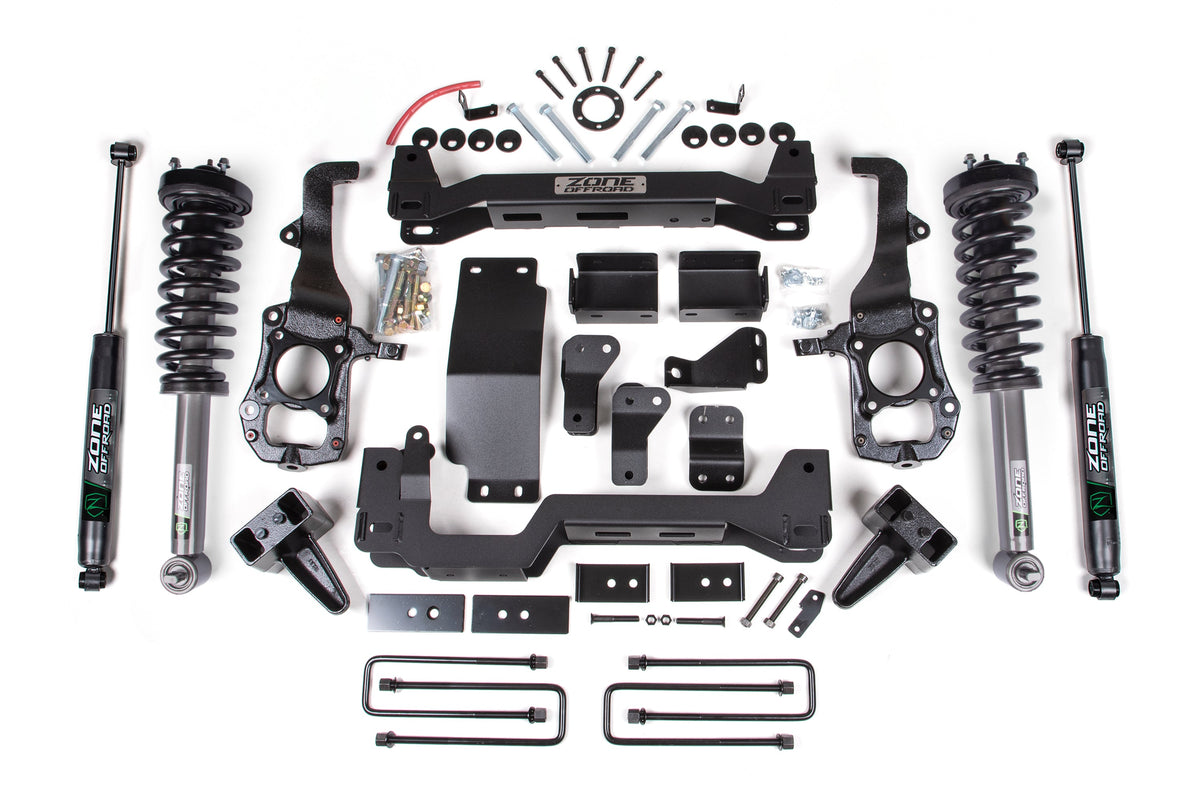

• Loaded Strut / Nitro Series / 3 Inch Block Kit — ZONF91LN

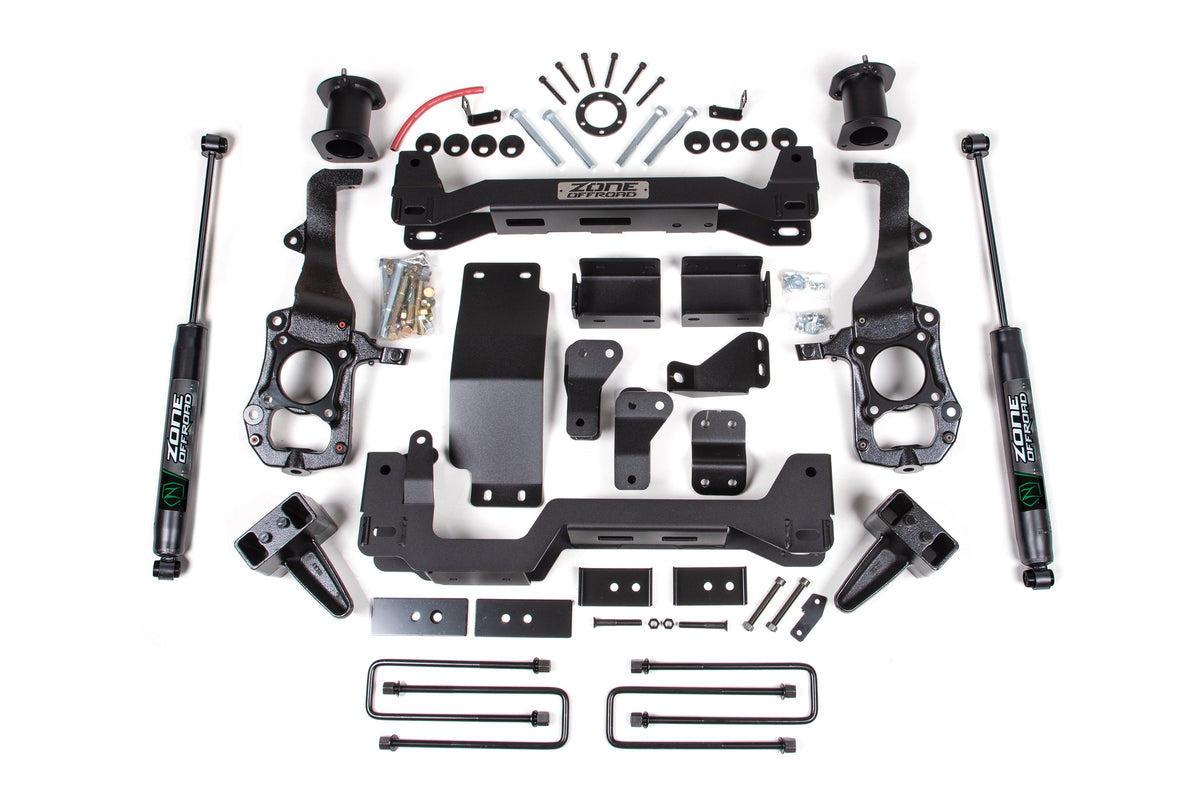

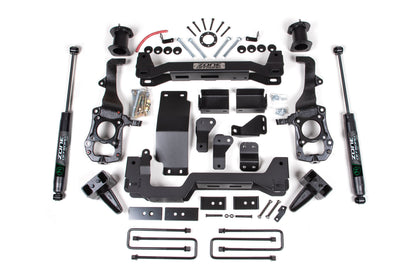

• Strut Spacer / Nitro Series / 3 Inch Block Kit — ZONF91N
• Strut Spacer / FOX Adventure Series / 2 Inch Block Kit — ZONF99F
• Loaded Strut / Nitro Series / 2 Inch Block Kit — ZONF99LN
• Strut Spacer / Nitro Series / 2 Inch Block Kit — ZONF99N

Installation requirements

1. Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.
2. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
3. Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
4. Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
5. Will not work with trucks equipped with CCD (Continuous Controlled Damping)
6. Does not fit diesel models.
7. Will not fit Tremor models.
8. Requires frame bracket modification
9. Loaded Struts are recommended to use the 5” tall block for a level stance, 4” block will result in a tail low stance
10. Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Wheel and Tire:

• 18" or larger diameter wheels required.
• Stock 17" and 18" wheels cannot be reinstalled.
• Stock 20" wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
• 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance.
• 37" tires will require crash bar modification

Vehicle fitment

Applications below are subject to the manufacturer restrictions shown first.

1. Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.
2. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
3. Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
4. Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
5. Will not work with trucks equipped with CCD (Continuous Controlled Damping)
6. Does not fit diesel models.
7. Will not fit Tremor models.
8. Requires frame bracket modification
9. Loaded Struts are recommended to use the 5” tall block for a level stance, 4” block will result in a tail low stance
10. Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Wheel and Tire:

• 18" or larger diameter wheels required.
• Stock 17" and 18" wheels cannot be reinstalled.
• Stock 20" wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
• 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance.
• 37" tires will require crash bar modification

• 2024 Ford / F-150 / King Ranch
• 2021–2023 Ford / F-150 / King Ranch / Drive: 4WD
• 2021–2023 Ford / F-150 / Lariat / Drive: 4WD
• 2021–2023 Ford / F-150 / Limited / Drive: 4WD
• 2024 Ford / F-150 / Platinum
• 2021–2023 Ford / F-150 / Platinum / Drive: 4WD
• 2021–2023 Ford / F-150 / SSV / Drive: 4WD
• 2024 Ford / F-150 / STX / Drive: 4WD / Fuel: FLEX
• 2024 Ford / F-150 / STX / Drive: 4WD / Fuel: GAS
• 2021–2023 Ford / F-150 / XL / Drive: 4WD
• 2024 Ford / F-150 / XL / Drive: 4WD / Fuel: FLEX
• 2024 Ford / F-150 / XL / Drive: 4WD / Fuel: GAS
• 2021–2024 Ford / F-150 / XLT / Drive: 4WD

Manufacturer specifications by option

ZONF91F

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes

ZONF91LN

• Front Lift Method : Strut Replacement
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

ZONF91N

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

ZONF99F

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 2"
• Shocks Included : Yes
• Lift Height : 4-5.5"

ZONF99LN

• Front Lift Method : Strut Replacement
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 2"
• Shocks Included : Yes
• Lift Height : 4-5.5"

ZONF99N

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 2"
• Shocks Included : Yes
• Lift Height : 4-5.5"
