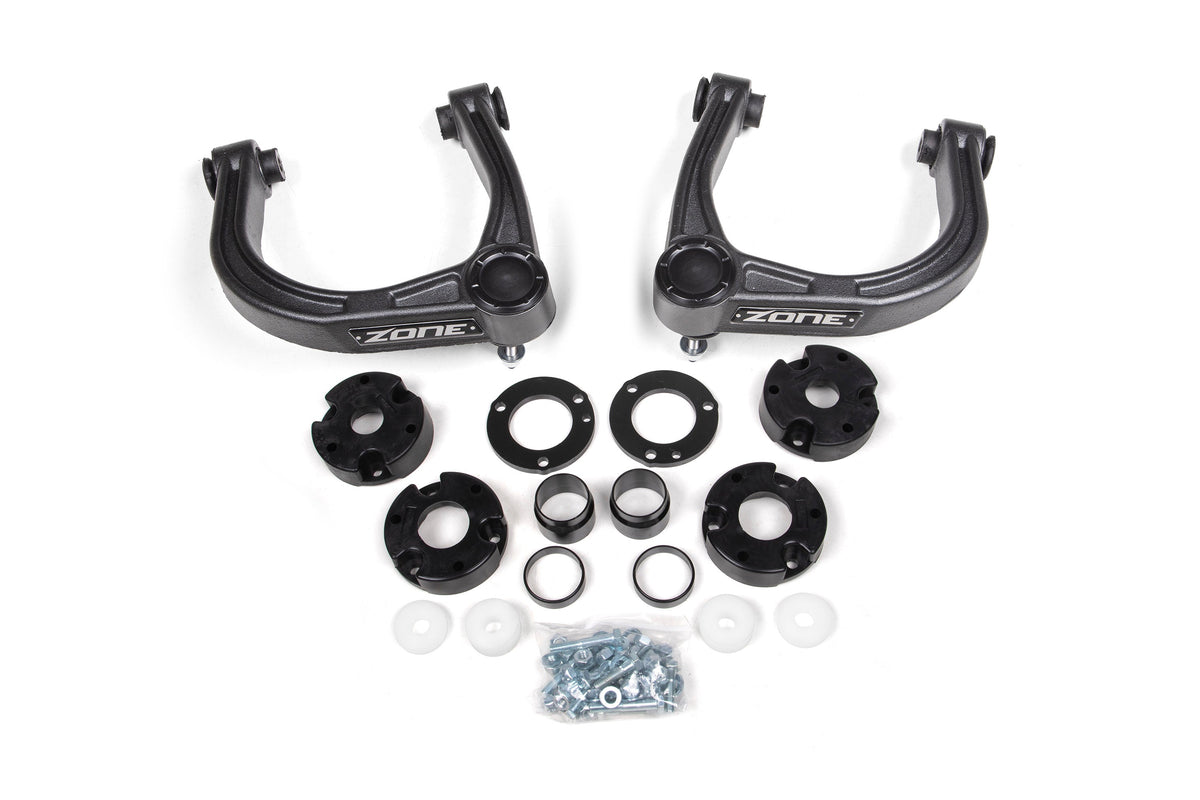

ZONE OFFROAD | 3.5" Lift Kit | 21-26 Ford Bronco Badlands Edition Only | F100

ZONE OFFROAD | 3.5" Lift Kit | 21-26 Ford Bronco Badlands Edition Only | F100

Lift Height: 3.5"

Position: Front and Rear

Configurations

• 4 Door — ZONF100

Installation requirements

1. This kit is designed to lift the front of the vehicle 3.5" and rear 2.5".
2. CV axle nut may need to be loosened and tightened on the ground with the weight the vehicle.
3. Although 37" x 12.50" will work at ride height, the tires will still contact the front body mount and possibly rear inner fender through wheel travel and steering lock to lock.
4. If running this size tire and using the full suspension travel, these areas must be addressed.
5. Does not fit Bronco Sport models.
6. Not compatible with HOSS 3.0 or Raptor Models.
7. Does not fit Sasquatch models.

Vehicle fitment

Applications below are subject to the manufacturer restrictions shown first.

1. This kit is designed to lift the front of the vehicle 3.5" and rear 2.5".
2. CV axle nut may need to be loosened and tightened on the ground with the weight the vehicle.
3. Although 37" x 12.50" will work at ride height, the tires will still contact the front body mount and possibly rear inner fender through wheel travel and steering lock to lock.
4. If running this size tire and using the full suspension travel, these areas must be addressed.
5. Does not fit Bronco Sport models.
6. Not compatible with HOSS 3.0 or Raptor Models.
7. Does not fit Sasquatch models.

• 2024 Ford / Bronco / Badlands / Doors: 4 — Front and Rear
• 2021–2023 Ford / Bronco / Badlands / Doors: 4 — Non-Sasquatch models ONLY / Front and Rear / 3.5"

Manufacturer specifications by option

ZONF100

• Front Lift Method : Strut Spacer
• Front Lift Height : 3.5"
• Rear Lift Method : Strut Spacer
• Rear Lift Height : 2.5"
• Shocks Included : No
• Lift Height : 2-3.5"
