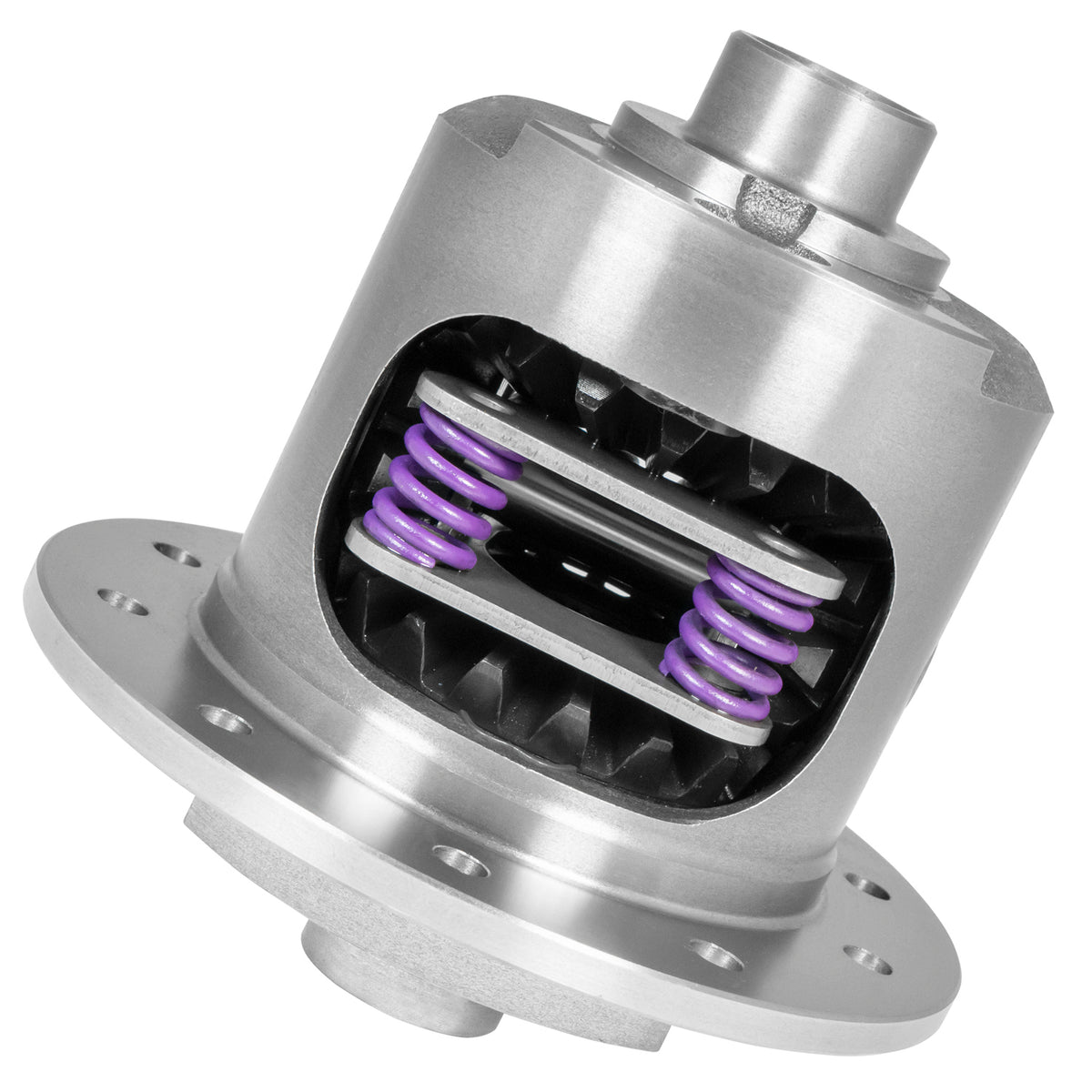

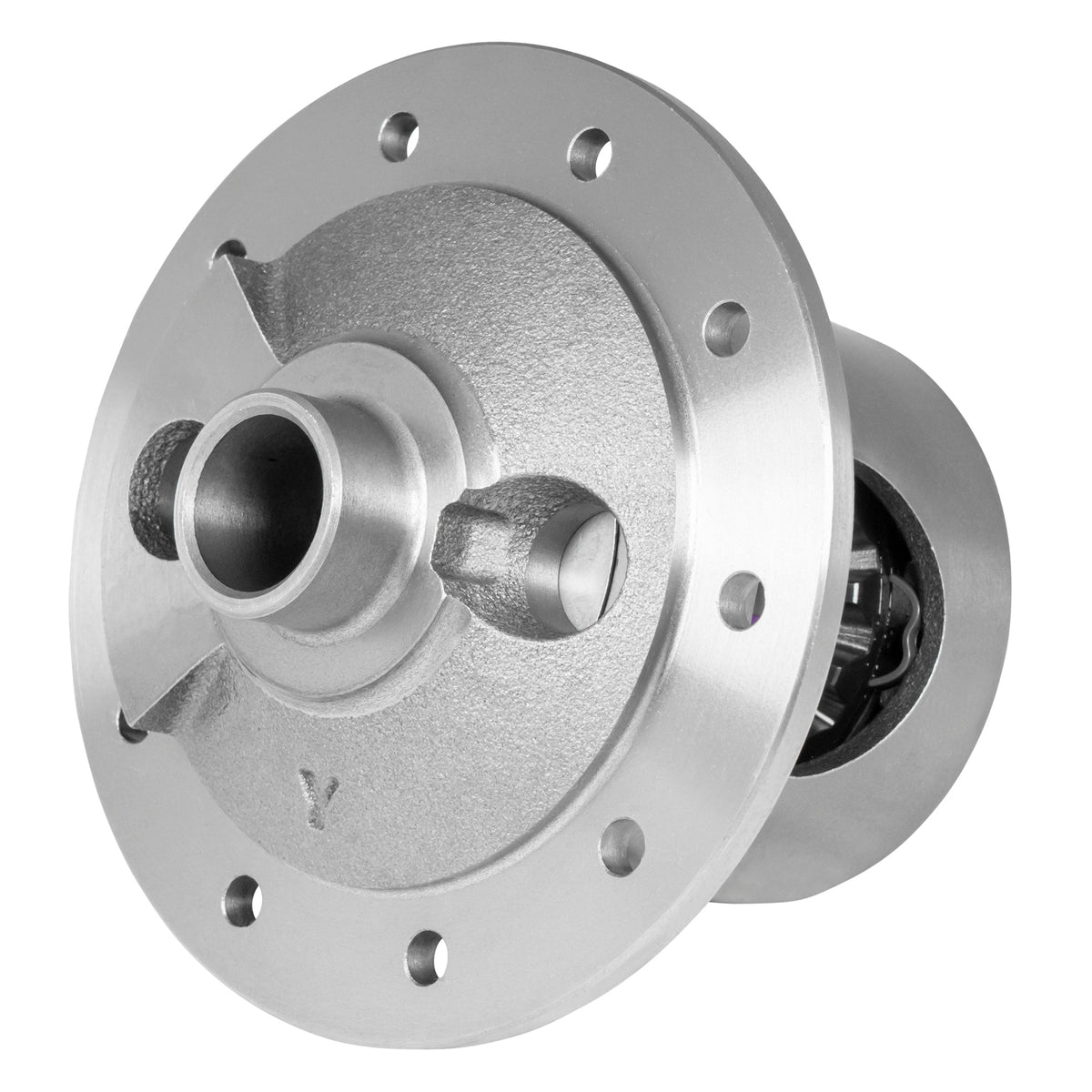

YUKON GEAR & AXLE | Dura Grip Limited Slip For GM 8.5" & 8.6" Diff 2.73 & Up Ratio 30 Spline 8.5" & 8.6" GM 30 Spline Duragrip Large Hub 2.73&Up Positraction Composite | Chevy / Gmc / Hummer / GMC | YDGGM8.5-3-30-1

Yukon Dura Grip is a positraction limited slip differential that provides smooth yet aggressive traction, giving you the confidence and performance you need across a wide variety of terrains. Yukon Dura Grip is a positraction limited slip differential that provides smooth yet aggressive traction, giving you the confidence and performance you need across a wide variety of terrains.

The Dura Grip is engineered for long life and is completely rebuildable. Dura Grips are constructed with a high strength nodular case, forged 4320 chromoly spider gears, and composite clutches.

For unmatched positraction performance, the Dura Grip is the ultimate choice. When your vehicle demands performance, durability and strength, choose Yukon Dura Grip.

Features:

Fits 8.5 inch & 8.6 inch GM with 30 spline axles Fits 2.73-and-up gear ratio All units are backed by extensive product testing and state-of-the-art software design Limited Slip Differential with composite clutches Fully rebuildable design and proudly assembled in the USA Yukon Dura Grips feature 4320 chromoly spider gears for ultimate durability

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Assembled: Yes
• Axle Shaft Spline Quantity: 30
• Axle Type: semi Floating
• Bolt Hole Quantity: 10
• Case Included: Yes
• Differential Brand: GM
• Gear Ratio: 2.73 and up
• Heat Treated: Yes
• Material: Steel

Yukon recommends the use of high grade Non-Synthetic GL-5 gear oil and Yukon LSD (Limited Slip Differential) additive for long life and smooth operation. Part number Oiladd.

The use of synthetic oil is not recommended and may result in aggressive or noisy operation. This unit uses carrier bearing & race part numbers Lm102949 & Lm102911 for the 8.5 inch housing (2.891 inch Race OD) or Lm603049 & Lm603012 for the GM 8.6 inch housing (3.062 inch Race OD).

Fitment Notes:

• Yukon Dura Grip Positraction / Limited Slip
• GM 8.5 & 8.6 inch. Rear
• 30 Spline
• 2.73 And Up
• 1.781 inch. Bearing Journal, Yukon Dura Grip Positraction / Limited Slip
• GM 8.5 inch. Rear
• 30 Spline
• 2.73 And Up
• 1.781 inch. Bearing Journal, Yukon Dura Grip Positraction / Limited Slip
• GM 8.5 inch. Front
• 30 Spline
• 2.73 And Up
• 1.781 inch. Bearing Journal
