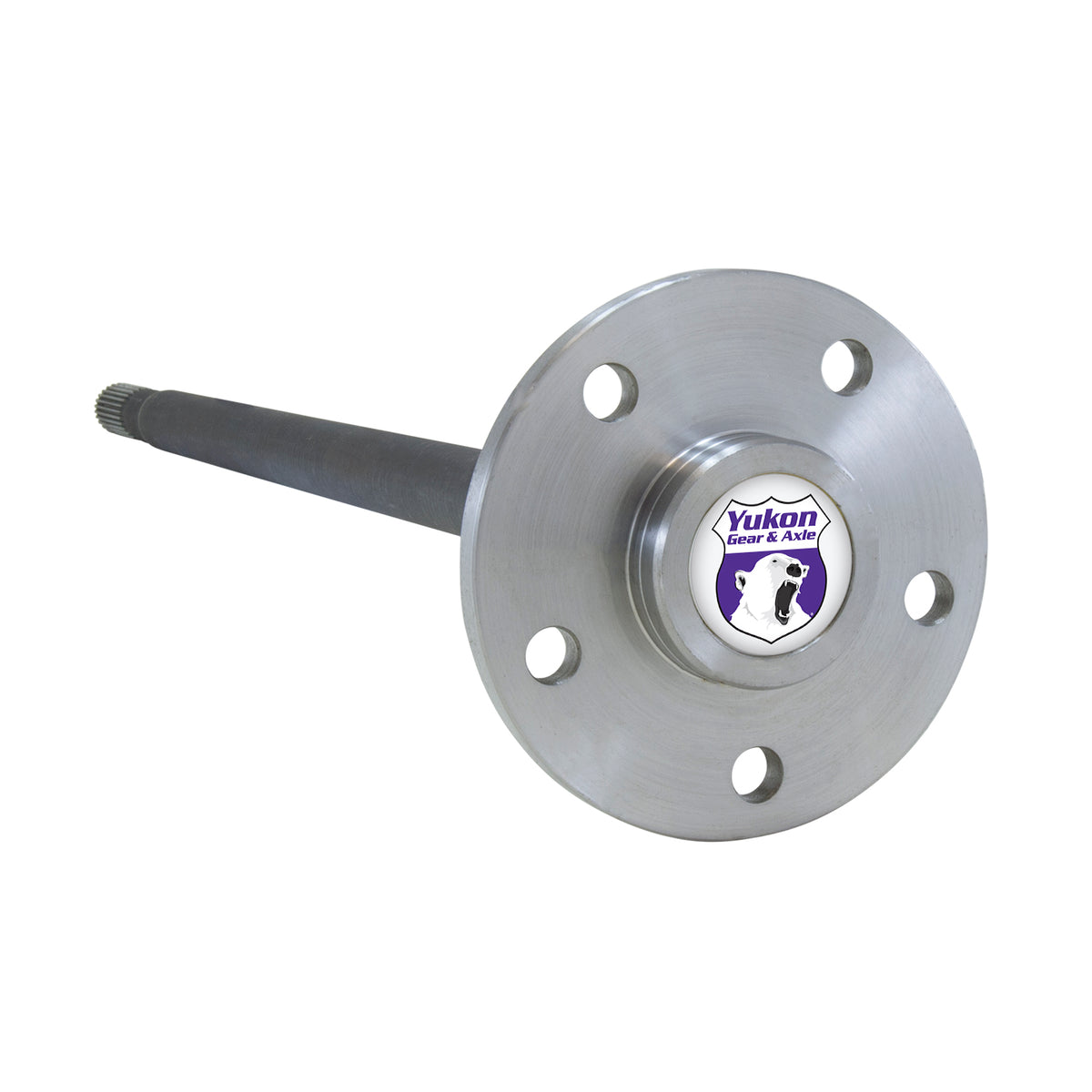

YUKON GEAR & AXLE | Chromoly Rear Axle Model 35 HD W/Drum Brakes Right Hand 27 Spline 29-1/4" Long M35 HD C/Clip Drum Right Hand 29-1/4" 27 Spline No ABS Ring 4340 | Jeep TJ / Jeep YJ / Jeep Cherokee | YA WM35C-27-R-HD

Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability. Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Features:

Fits Jeep AMC Model 35 HD with C-clips 29 1/4 inch long 27 spline Right hand side 4340 chromoly construction

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Axle Nut Included: No
• Axle Shaft Seal Included: No
• Axle Type: Semi-Floating
• Brake Hardware Included: No
• CV Joints Included: No
• Inboard Spline Quantity: 27
• Rust Resistant Coating: No
• Shaft Length: 29.25 Inch
• Shaft Material: 4340 Nickel Chromoly Steel

This axle does not come with ABS ring. Re-use old ABS ring.

This axle requires screw-in axle studs (part number Yspstud-010). Double drilled flange for 5x4.5 inch & 5x5.5 inch bolt patterns.

Fitment Notes:

• AMC Model 35
• For Use w/Drum Brakes
• w/54 Tooth/2.7 inch. ABS Ring
• 27 Spline
• 29-1/4 inch. Length
• 4340 Chromoly
