TeraFlex | TJ / ZJ Short Control Arm Kit 8-Arm 0-4 Inch Lift TeraFlex | 1615000

TeraFlex TJ / ZJ: Short Control Arms provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited and ZJ Grand Cherokee models with 0-4 Inch Lifts. Bolts to the factory control arm mounting brackets.

• Rebuildable joints for easy maintenance.
• Can be added to any existing suspension lift.

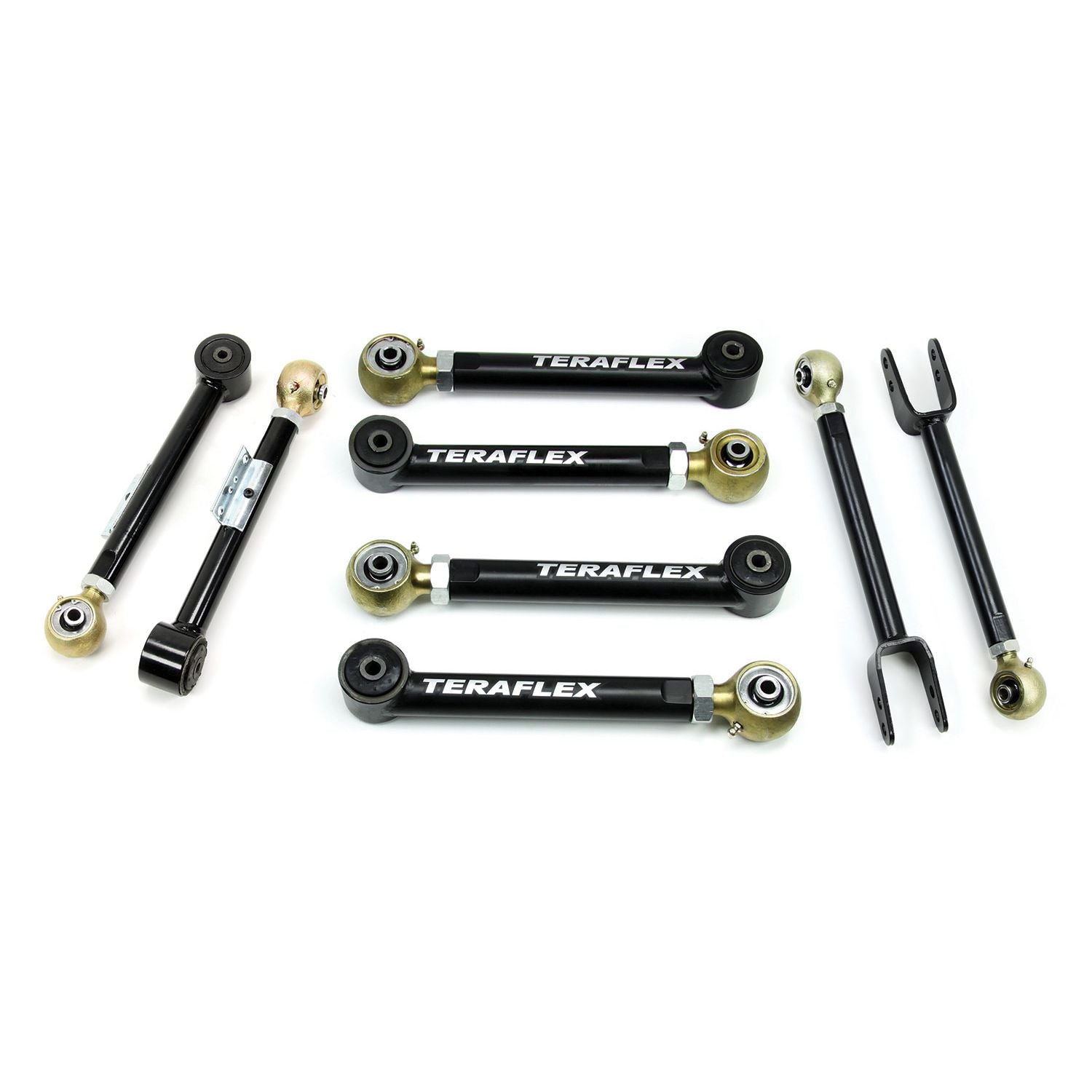

Includes:

• Short Control Arm Pairs:
• Arm Pair - Front Upper (# 1613800)
• Arm Pair - Lower (Front or Rear) (# 1615700) x 2
• Arm Pair - Rear Upper (# 1614800)

Fitment Vehicle(s):

• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase)
• ZJ Grand Cherokee

Specs:

• Lift Height: 0-4 Inch

Control Arm Specs:
TJ / ZJ / XJ / MJ: Short Control Arm Pair - Front Upper (# 1613800):

• Tube Diameter & Wall: 1.25 Inch x 0.25 Inch
• Factory Length: 15-1/8 Inch
• Min. Length: 14-13/16 Inch
• Max. Length: 17-3/16 Inch
• Both - Bolts: 7/16 Inch (12mm)
• Joint - Axle: NA
• Joint - Frame: 4116230

TJ / ZJ / XJ / MJ: Short Control Arm Pair - Lower (Front or Rear) (# 1615700) x 2:

• Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
• Factory Length: 15-3/4 Inch
• Min. Length: 14-15/16 Inch
• Max. Length: 17-5/16 Inch
• Both - Bolts: 9/16 Inch (14mm)
• Joint - Axle: 4116260
• Bushing - Frame: 4915161

TJ / ZJ: Short Control Arm Pair - Rear Upper (# 1614800)

• Tube Diameter & Wall: 1.25 Inch x 0.25 Inch
• Factory Length: 13-1/4 Inch
• Min. Length: 13 Inch
• Max. Length: 14-3/8 Inch
• Both - Bolts: 7/16 Inch (12mm)
• Joint - Axle: NA
• Joint - Frame: 4116230
