TeraFlex | 97-06 Jeep Wrangler TJ SWB 5 Inch Pro LCG Long Arm Suspension System No Shocks TeraFlex | 1449575

TeraFlex LCG (Low Center-of-Gravity) Long Arm Suspension Systems are engineered for hardcore Jeepers who don't want to give up on-road comfort and control in their TJ Wrangler/Unlimited. These complete systems include all necessary components including LCG Long Arm Brackets.

For ultimate rock crawling, trail riding, and high-speed road stability, look no further than the TeraFlex Pro LCG Long Arm Suspension System. These kits are engineered for the aggressive off-road enthusiast who wants the best suspension performance on and off road.

Up front, the Pro LCG expands the performance of the stock 5-link suspension configuration with our adjustable LCG Long Arms & Brackets. Our Front Upper Pro LCG Long Arms are more than 9 Inch longer than stock! Around back, the stock 5-link rear suspension (including track bar) is replaced by our adjustable triangulated Pro LCG 4-Link Long Arm Suspension & Frame Brackets w/ Rear Axle Truss. The Rear Upper Pro LCG 4-Link Long Arm Frame Brackets feature adjustable anti-squat tunability to fine tune the suspension.

Our adjustable LCG Long Arms balance front caster angles and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position. On 3-5 Inch Lifts, LCG Long Arm Brackets and 4-Link Rear Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles. This reduces bushing stress during extreme droop as well as shock load transferred through the LCG Long Arms.

The Front [High Steer] HD Adjustable Track Bar, Drop Pitman Arm, and triangulated Rear Upper Pro LCG 4-Link Long Arms improve steering response, center the axles to optimize vehicle roll center, and reduce body roll to for unsurpassed handling.

TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH). TeraFlex Pro LCG Long Arm Suspension Systems are the best of both worlds! Does Not include shocks.

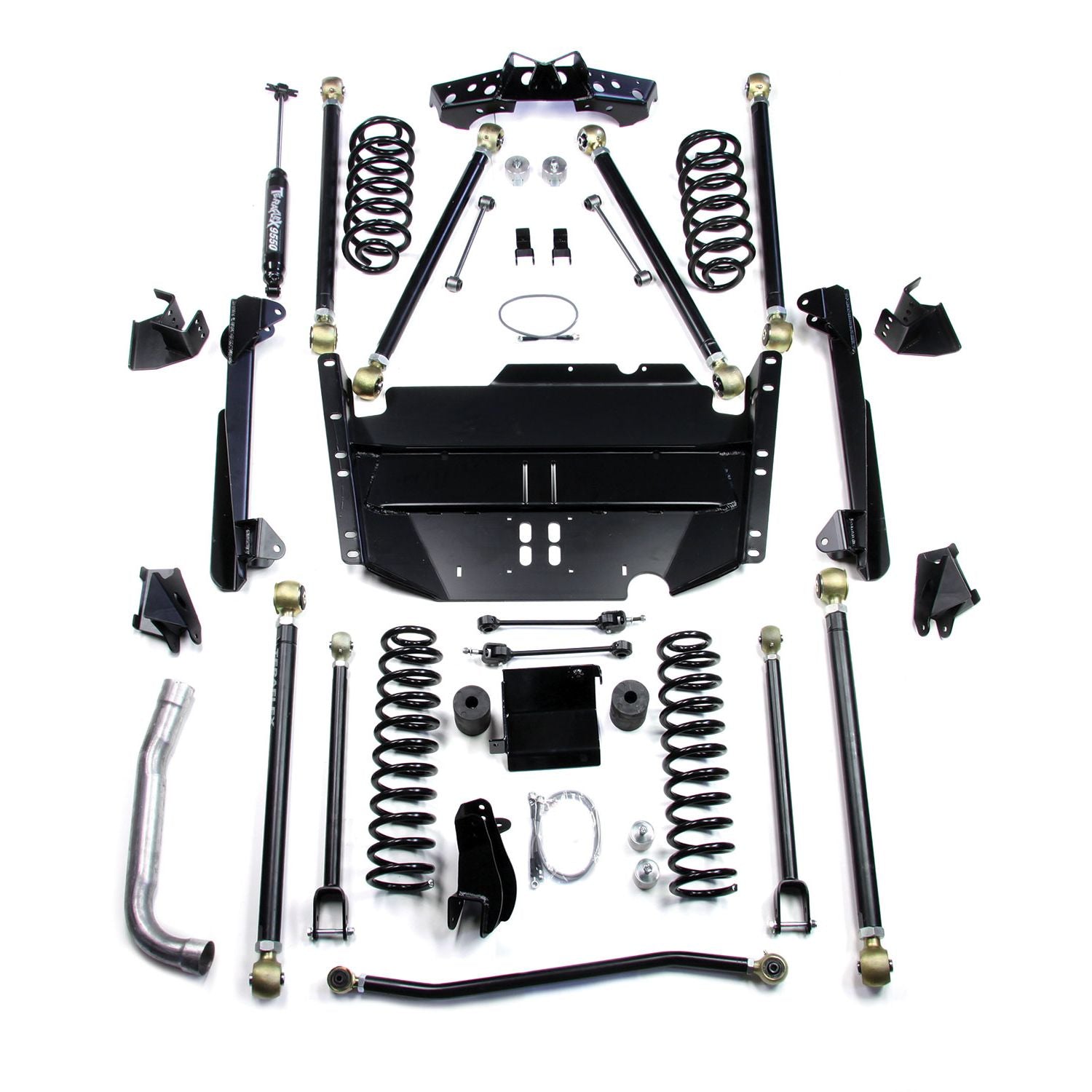

• 5 Inch Lift Coil Spring Pair (Front: # 1843502) (Rear: # 1844502)
• Pro LCG Long Arm & Bracket Upgrade Kit - Front Upper (3-5 Inch Lift) (# 1443470)
• LCG Long Arm & Bracket Upgrade Kit - Lower (3-5 Inch Lift) (# 1447700)
• Pro LCG 4-Link Long Arm & Bracket Upgrade Kit - Rear Upper (3-5 Inch Lift) (# 1444870)
• HD Adjustable Track Bar - Front (3.5-6 Inch Lift) (# 1743070)
• High Steer Track Bar Bracket Kit - Front Upper (# 1743031)
• Drop Pitman Arm (3.5-6 Inch Lift) (# 4922133)
• 2.25 Inch Bump Stop Extension Kit - Front Upper (LCG Lift) (# 1910204)
• 1.75 Inch Bump Stop Strike Pad Kit w/ Spring Retainer - Rear Lower (LCG Lift) (# 1949011)
• 10 Inch Front Sway Bar Quick Disconnect Kit (3-6 Inch Lift) (# 1743090)
• 10.5 Inch Sway Bar Link Kit - Rear (2.5-5 Inch Lift) (# 1944011)
• HD BellyUp Skid Plate Kit (# 4648403)
• HD Steering Box Skid Plate Kit (# 4627400)
• 2003-2006 TJ: 1 Inch Transfer Case Lowering Spacer Kit (# 1900103)
• 1997-2002 TJ: Shift Linkage Plate Kit (# 1900001)
• 2003-2006 TJ: Shift Linkage Plate Kit (# 1900003)
• 26 Inch Stainless-Steel Braided Brake Line Kit - Front & Rear (# 4350400)
• Exhaust Pipe Extension
• Shock Extension Kit - Rear Lower (# 1544790)
• All necessary hardware
• And more

Vehicle(s):

• TJ Wrangler (short wheelbase)

Specs:

• Lift Height: 5 Inch
• Max Tire Diameter: 37 Inch
