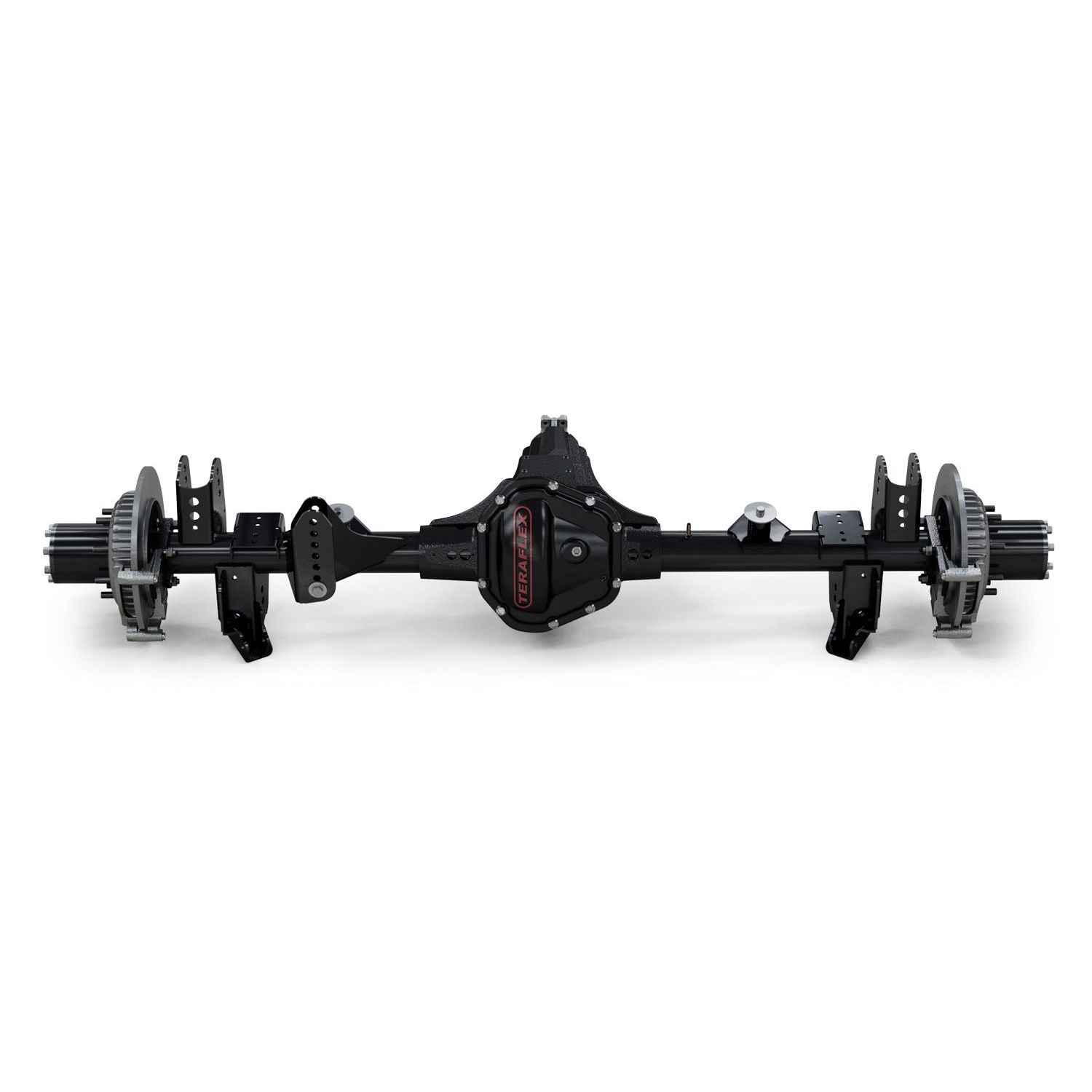

TeraFlex | 07-18 Wrangler JK 70 Inch TeraCRD60 HD Rear Axle w/ Full-Float & 5.38 Ratio R&P & ARB Locker 4-6 Inch Lift TeraFlex | 34065384

The complete Tera CRD60 HD Rear Axle Assembly w/ Full-Float includes an ARB air locker, a choice of pre-installed Spicer Super 60 ring & pinion gears as well as Spicer Super 60 bearings, full-float rear axle shafts, and sensors.

TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent, broken, or damaged axles in JL Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle's weak areas.

The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength.

Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, and more!

These 70 Inch wide rear axle housings Must be used with 70 Inch wide front axle housings such as our 70 Inch Tera60 HD Front Axle Assembly (w/ Unit Bearings or w/ Locking Hubs), Tera44 HD Front Axle Housing w/ R&P & ARB, or Tera44 Rubicon HD Front Axle Housing w/ R&P & OEM Locker.
Includes:

• ARB Air Locker
• Spicer Super 60 ring & pinion
• Spicer Super 60 bearings and install kits
• 35-spline full-float axle shafts and bearings
• Spicer 1350 series pinion yoke
• Performance Big Rotor Kit - Rear (13.5 Inch Smooth Rotors)
• Dana 60 / Tera CRD60: HD Differential Cover Kit (# 3990660)

Fitment Vehicle(s):

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)

Specs:

• Lift Height: 4-6 Inch
• WMS-WMS: 70 Inch
• Axle Tube: 3.25 Inch O.D. x 0.375 Inch wall
• Axle Splines: 35
• Wheel Bolt Pattern: 8x6.5 Inch
• Gear Ratio: 5.38
