TeraFlex | 07-18 Wrangler JK 4 Door 3 Inch Alpine CT3 Outback Overland Short Arm Suspension System No Shocks TeraFlex | 1167204

TeraFlex Alpine CT (Cross Trail) Suspension Systems build on our Sport ST (Street & Trail) Suspension Systems. The TeraFlex 3 Inch Alpine CT3 Outback Overland Short Arm Suspension System is built to handle expedition-style overland travel such as the Canning Stock Route in Australia, the Silk Road in China, or your favorite trail in the U.S.

The Alpine CT3 Outback Overland builds on the standard 3 Inch Alpine CT3 by adding custom load-enhanced heavy-duty rate Outback Lift Coil Springs. These upgraded springs maintain the lift height when loaded with heavy gear. The Outback Overland Suspension System is built to handle the toughest trails!

Adjustable Alpine Short Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 2-4 Inch Lifts.
Front and Rear (4 Inch+) HD Forged Adjustable Track Bars and Rear Lower Track Bar Bracket improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling.

This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain. These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine CT Suspension Systems are engineered for hardcore Jeeping without sacrificing weekday ride comfort!

Does Not include shocks. We recommend Falcon Performance Shocks. Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability. Falcon Series 3.3 Fast Adjust Piggyback Shocks and Falcon Nexus EF 2.1 Fast Adjust Steering Stabilizer - available separately.

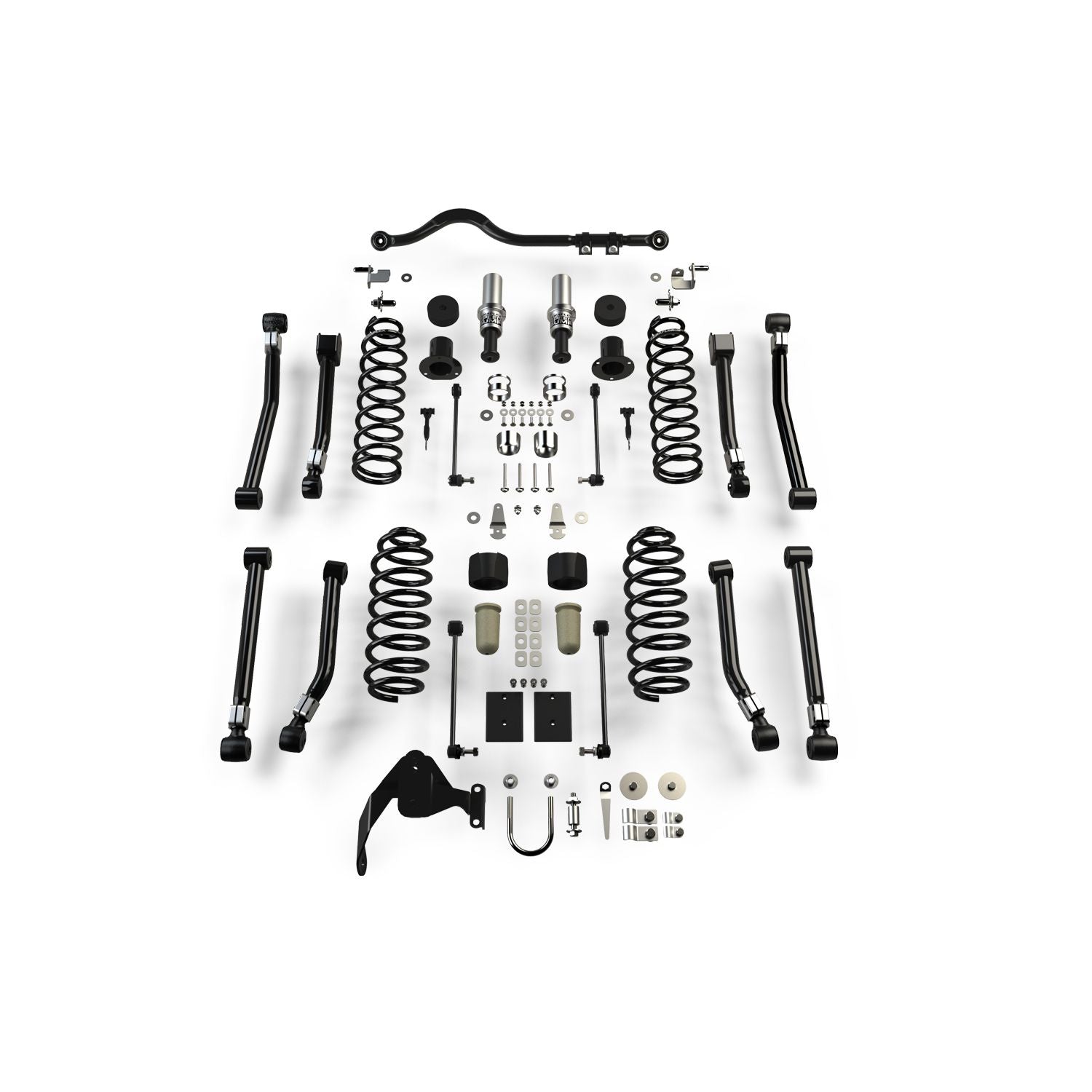

Includes:

• 3 Inch Lift Outback Coil Spring Pair (JK4 Front: # 1863202) (JK4 Rear: # 1864202)
• Alpine Short Arm Kit - 8-Arm (2-4 Inch Lift) (# 1415610)
• HD Forged Adjustable Track Bar - Front (0-6 Inch Lift) (# 1753418)
• Track Bar Bracket Kit - Rear Lower (2.5 Inch Lift) (# 1954776)
• Speedbump & Progressive Bump Stop Kit - Front & Rear (# 1958250)
• 10 Inch Front Sway Bar Quick Disconnect Kit (3-4 Inch Lift) (# 1753000)
• 12.25 Inch Sway Bar Link Kit - Rear (3-4 Inch Lift) (# 1754500)
• Coil Spring Retainer Kit - Rear Upper (# 4951400)
• Coil Spring Retainer Kit - Rear Lower (# 4954300)
• Brake Line Anchor Kit - Front (# 1101255)
• Brake Line Relocation Kit - Rear (# 4304400)
• Exhaust Spacer Kit (# 2610000)
• All necessary hardware
• And more

Fitment:

• JK Wrangler Unlimited (4-Door)

Specs:

• Lift Height: 3 Inch
• Max Tire Diameter: 35 Inch
