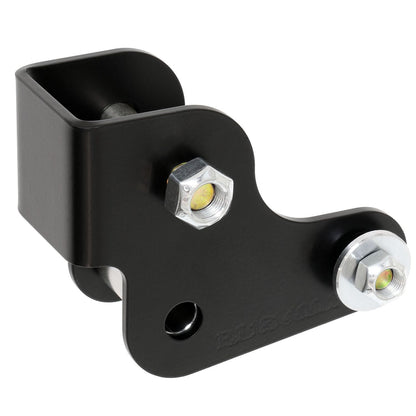

ROCKJOCK 21-C Bronco Geometry Correction Axle Bracket For Rear Trac Bar I RJ-181400-101

RockJock's Geometry Correction Axle Bracket Kit for the rear Trac Bar of 2021-up Broncos is a highly recommended upgrade for lifted vehicles to relocate the axle housing mounting point of the rear trac bar upward, correcting the location of the trac bar mounting point.

You'll find this bracket necessary on lifted vehicles that feature heavy additions above the roof or behind the tailgate. The addition of this bracket will restore rear suspension lateral geometry and produce better overall vehicle handling by raising the rear suspension roll center to bring it closer to the vehicle's center of gravity

This kit is completely bolt-on, works with factory or aftermarket trac bars, such as our RJ-183400-101 Johnny Joint adjustable trac bar) and very simply installs onto the factory axle housing. A rear brake line relocation tab is included to provide clearance for the new trac bar bolt location. Bracket is finished in semi-gloss black and includes all necessary hardware for installation.

Kit Fits:

• 2021-up Ford Bronco (all models)

Kit Includes:

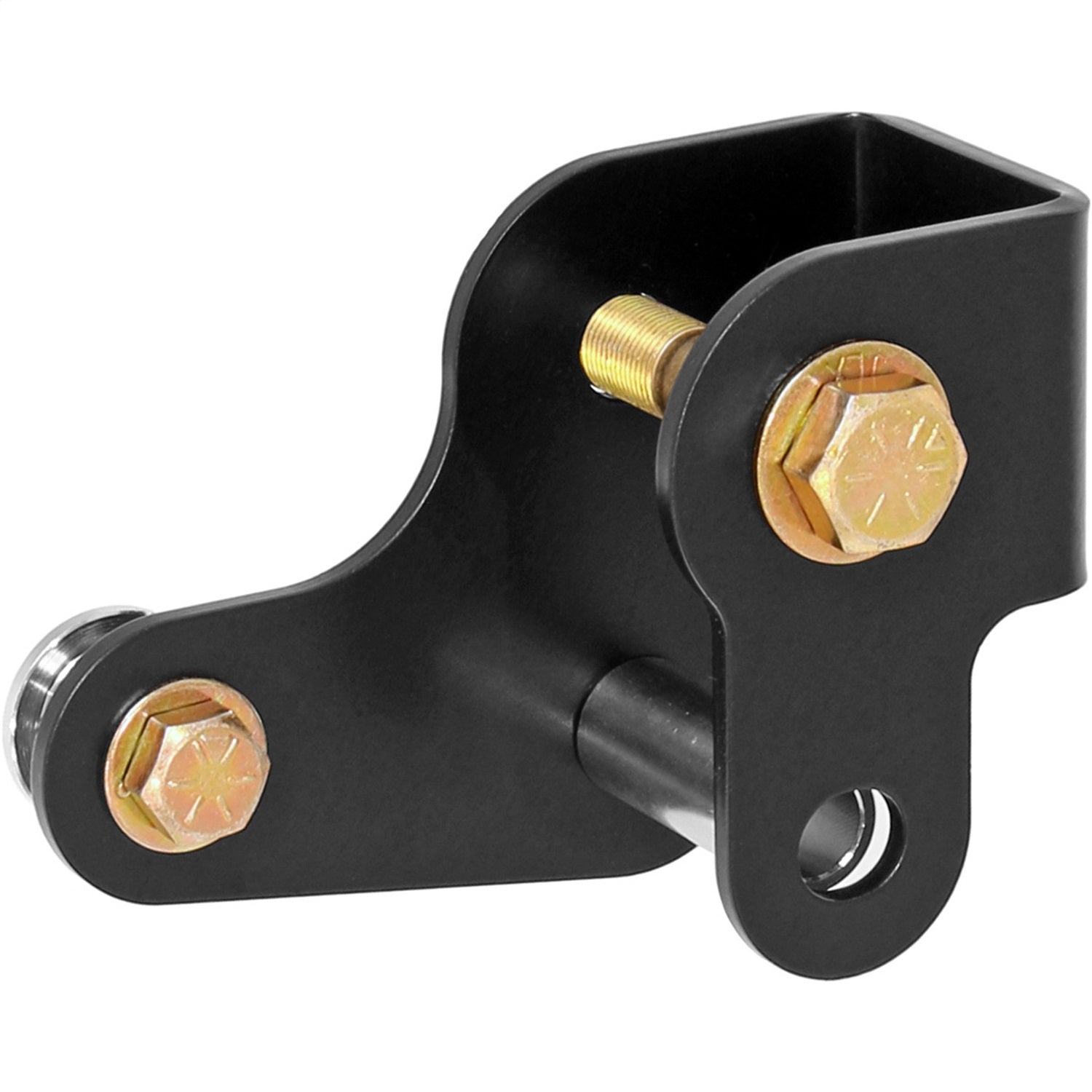

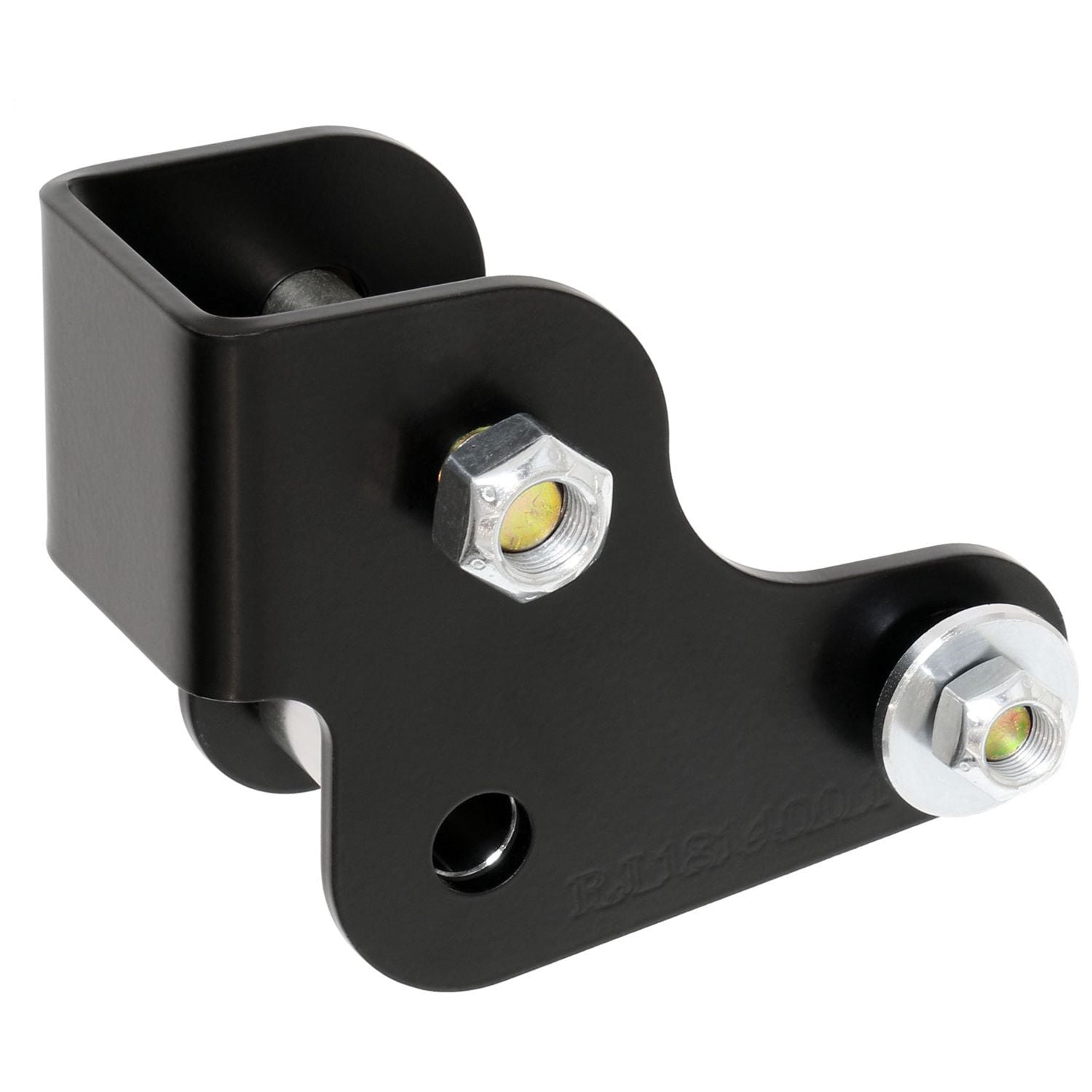

• (1) Trac Bar Relocation Bracket

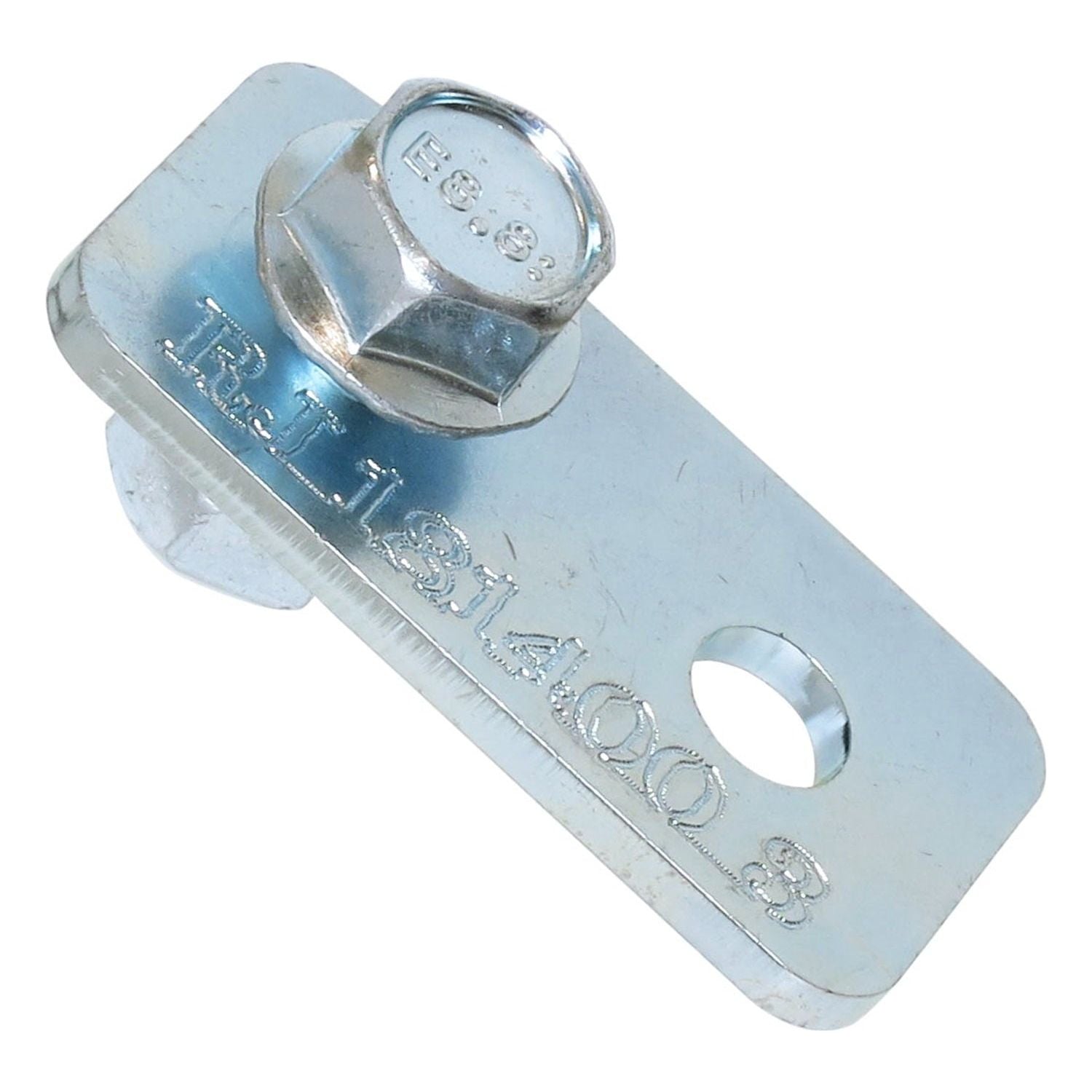

• (1) Brake Line Relocation Bracket
• (1) Hardware Pack

Madatory Lift Amount For Use:

• Not for use on - stock/un-lifted vehicles!
• Base Model = +2 in. lift
• Badlands Model = +1.5 in. lift
• Sasquatch Package (any model) = +1 in. lift

Notes:

• Shocks - 18.15 in. minimum rear shock length at full compression (otherwise bracket can collide with the frame).

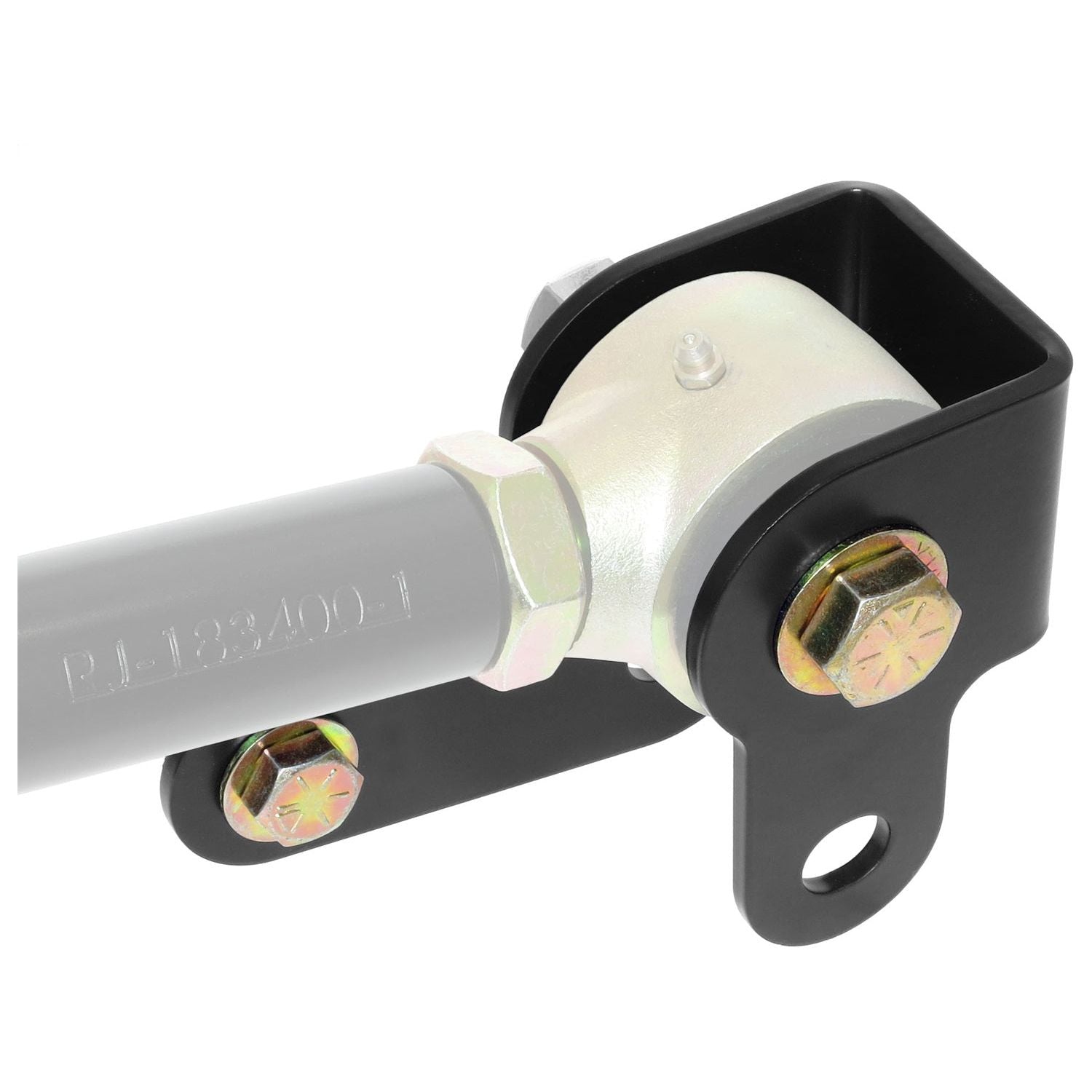

• Trac Bar - May be used with a factory or an aftermarket adjustable trac bar, such as our RJ-183400-101 Johnny Joint adjustable trac bar.
• Bracket Specs. - 3/16 in. laser cut and formed steel, semi-gloss black powder coat finish.
