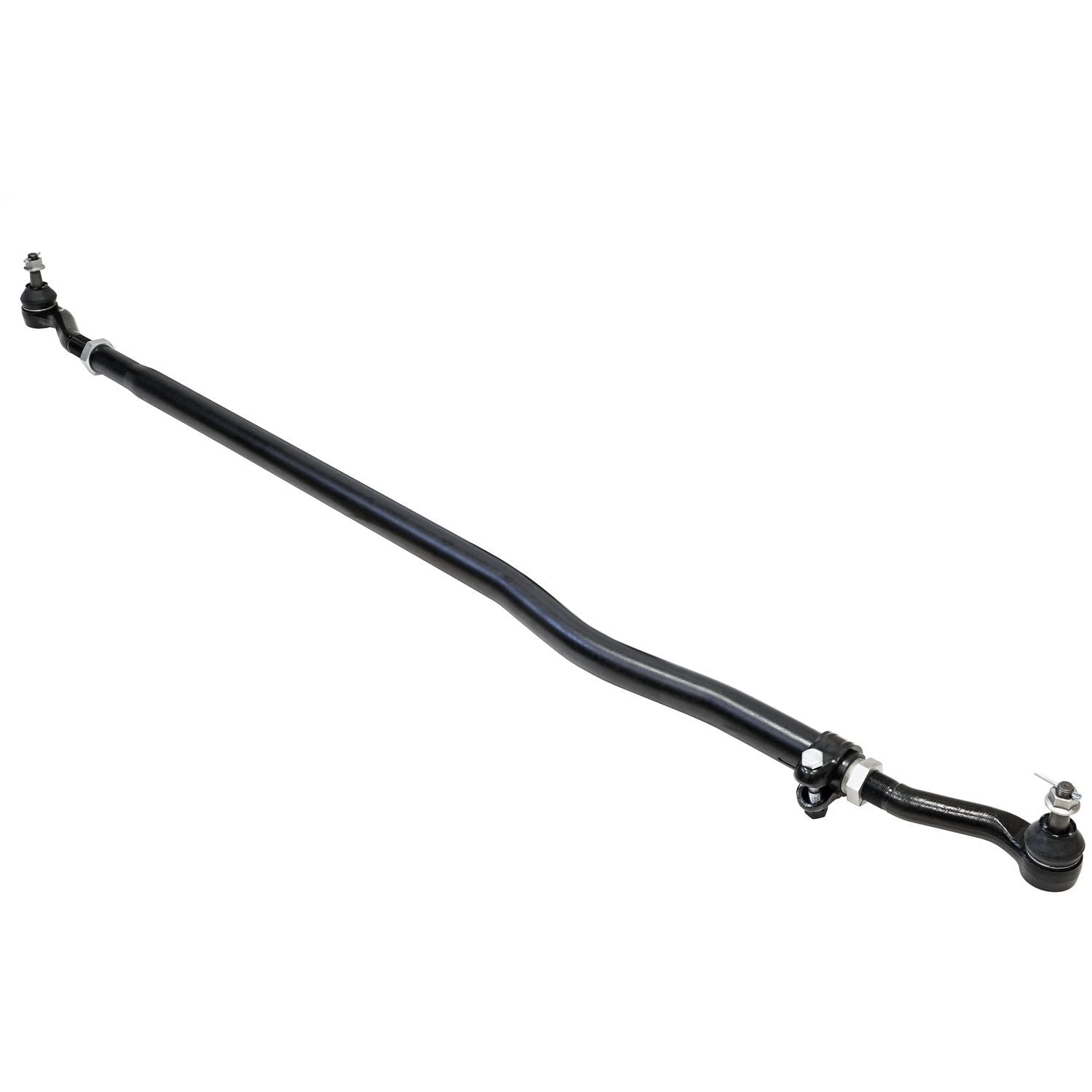

ROCKJOCK 18-C Wrangler/20-C Gladiator Tie Rod, Bolts-On In Sport Model High Steer App Only CurrectlyncI RJ-442101-103

Big tires and aggressive usage of your JL Wrangler, JL Unlimited or JT Gladiator vehicle will cause the factory steering components to bend or break. For those who get their vehicles out in the dirt, the RockJock Currectlync Heavy Duty Tie Rod is must-have!

Being pro-active, so you don't get stranded in the wilderness is the smart thing to do for your family's safety.

RockJock's completely bolt-on Currectlync Tie Rod features 42mm (1.654 in.) diameter alloy steel construction, larger forged, greasable tie rod ends, premium jam nuts and adjuster and it's painted black, so it's ready for install right out of the box!

The double adjuster feature allows for tie rod spec. adjustments after installation without having to remove either end of the tie rod from the vehicle.

This easy to install component is designed for use on stock height or lifted vehicles (up to 6 in. lift), requires no modifications or machining to any part of the vehicle

Note: This specific tie rod is Only for use with (and included in) our High Steer Knuckle Kits for NON-RUBICON applications!

• JL Wrangler Unlimited (4-door) - All Models (with Sport/Sahara width front differential)
• JL Wrangler (2-door) - All Models (with Sport/Sahara width front differential)
• JT Gladiator - All Models (with Sport width front differential)

Kit Includes:

• 42mm (1.654 in.) Alloy Steel Tie Rod Assembly (w/ Ends)
• All required hardware and step by step instructions

Kit Features:

• 42mm (1.654 in.) Alloy Steel Tie Rod Tube with indexed ends for superior strength
• Heavy Duty Greasable Rod Ends for increased strength and long service life
• Double Toe Adjuster simplifies alignment (eliminates the need to remove stabilizer or ram to adjust)
• Compatible with (included in) ram assist or steering stabilizer shock High Steer Knuckle Kits
• 2-year warranty

Fitment Specs

• For use with any amount of lift
• Compatible with any OEM JL/JT wheel
• Works with any size tire
• For use on any factory JL/JT standard width Sport model axle - only
• For use with RockJock High Steer Knuckles - only

Note: You must measure your center of tie rod end to center of tie rod end measurement on your vehicle before ordering to ensure you are getting the correct tie rod!

From the factory, Jeep produces several different front axle widths and RockJock will not be responsible for the wrong length tie rod being shipped!

This tie rod fits a stock JL/JT Sport front axle that, when equipped with stock knuckles, measures 59 1/4 in. hole to hole dimension (see photo gallery). If you have any questions on this, please contact us!

Notes:

Only for use on factory Sport model axles equipped with RockJock High Steer Knuckles
You must grease all rod ends via their zerk fittings before use. Grease unit with non-synthetic, hi-moly lube grease, such as our CE-9013G

Component Specs

• Tie Rod = 42mm (1.654 in.) dia. alloy steel tube with indexed ends for maximum strength
• Tie Rod Adjuster = 1 1/8 in.-18 RH inner threads, 1 3/8 in.-18 outer threads
• Tie Rod Ends = 1 1/8 in.-18 RH threads (on both), forged steel

Parts List

• Tie Rod Tube (only): JK-9704TR-3
• Tie Rod End (driver's side): RJ-STRG-0211
• Tie Rod End (passenger's side): RJ-STRG-0212
• Tie Rod Double Adjuster: JK-9704TR-4
• Tie Rod Adjuster Clamp: JK-9704TR-5
• Tie Rod Jam Nut: JK-9704TR-6
• Rod End Rubber Boot (both points): JK-9703DLB
• Rod End Nut (both points): RJ-502102-3
