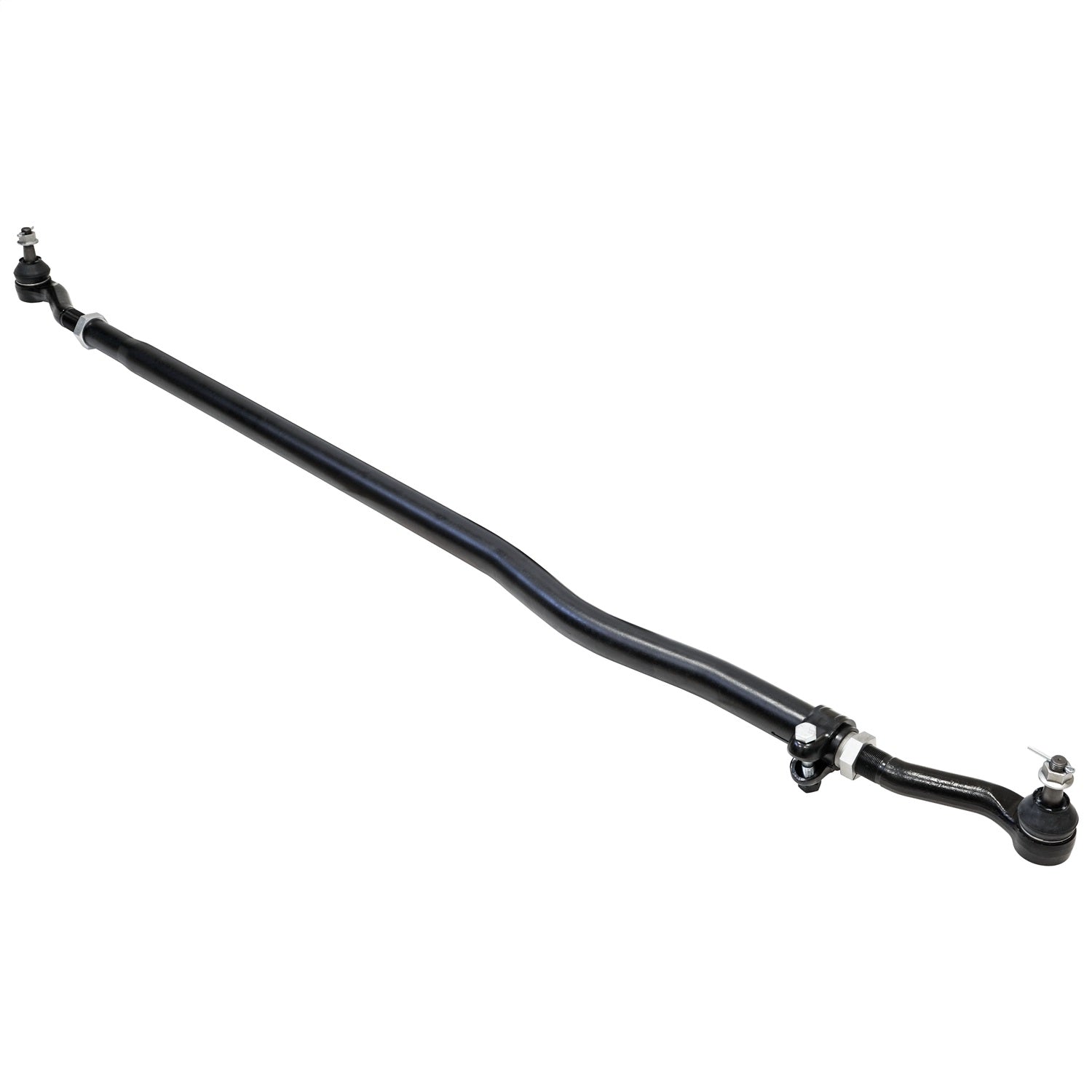

ROCKJOCK 07-18 Wrangler High Steer Heavy Duty Steel Tie Rod I RJ-432103-101

RockJock's JK High Steer Tie Rod features a shorter than standard alloy steel 42mm (1.654 in.) diameter tie rod tube for use with our JK High Steer Knuckle Kits (only), larger forged, greasable rod ends, premium jam nuts and adjuster and it's painted black, so it's ready for install right out of the box!

This tie rod is compatible with any of the steering stabilizer or ram assist steering clamps included in our High Steer Kits.

Kit Fits:

JK Wrangler Unlimited (4-door) - All Models (with RockJock High Steer Knuckle Kit)
JK Wrangler (2-door) - All Models (with RockJock High Steer Knuckle Kit)

Kit Includes:

(1) Tie Rod Assembly (w/ Ends, Boots, Cotter Pins)

Kit Features:

• 42mm (1.654 in.) Alloy Steel Tie Rod Tube with indexed ends for superior strength
• Heavy Duty Greasable Rod Ends for increased strength and long service life
• Double Toe Adjuster simplifies alignment (eliminates the need to remove stabilizer or ram to adjust)
• Compatible with any of the steering stabilizer or ram assist steering clamps included in our JK High Steer Knuckle Kits
• 2-year warranty

Fitment Specs.:

• For use with any amount of lift
• Compatible with any OEM JK wheel
• Works with any size tire
• For use on any factory JK Dana 30 or Dana 44 differential
• Can be used on aftermarket Dana 44 differentials that feature RockJock High Steer Knuckles

Notes:

• This Tie Rod is Only intended for use with our JK High Steer Knuckle Kits!
• This Tie Rod is NOT for use on a stock JK! See JK-9704TR for a tie rod that will bolt to a JK with stock knuckles.
• When using ram assist, be mindful of tube size when purchasing ram brackets (see our ram assist mounting solutions here)
• You must grease all rod ends via their zerk fittings before use. Grease unit with non-synthetic, hi-moly lube grease, such as our CE-9013G

Component Specs.:

• Tie Rod Tube = 42mm (1.654 in.) dia. x 44.71 in. long alloy steel tube with indexed ends for maximum strength
• Tie Rod Adjuster = 1 1/8 in.-18 RH inner threads, 1 3/8 in.-18 outer threads
• Tie Rod Ends = 1 1/8 in.-18 RH threads (on both), forged steel

Parts List:

• Tie Rod Tube (only): RJ-432103-1
• Tie Rod End (driver's side): JK-9704TR-1
• Tie Rod End (passenger's side): JK-9704TR-2
• Tie Rod Double Adjuster: JK-9704TR-4
• Tie Rod Adjuster Clamp: JK-9704TR-5
• Tie Rod Jam Nut (fits both points): JK-9704TR-6
• Rod End Boot (fits both points): JK-9703DLB
• Rod End Nut (fits both points): JK-9704NUT
• Rod End Cotter Pin (fits both points): CE-98338A190
• Rod End Zerk Fitting (fits both points): CE-1103K21
