READYLIFT | 1.5" Front Leveling Kit With Tubular Upper Control Arms | 19-26 Ram 1500 New Body 4WD Factory Air Suspension Excl. TRX/EcoDiesel | 66-19150

ReadyLIFT 1.5" Leveling Kit With Tubular Upper Control Arms Factory Air Suspension | 66-19150

Overview & Application Notes

2019-2026 Ram 1500 (Factory Air Suspension) 4WD 1.5 inch Leveling Kit w/ new Tubular Upper Control Arms. For use on New body style Ram 1500 4WD with factory air suspension.

Not for use on classic body style Ram 1500.

Front strut extension leveling kit.

High-strength fabricated offset steal spacer - bolt-on.

Max tire: 285/65-20 on 20x9 +18.

Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift. **Will not fit Ram TRX models,  vehicles equipped with springs and struts, or EcoDiesel applications.

Product Details

For use on New body style Ram 1500 4WD with Factory Air Suspension. Not for use on classic body style Ram 1500. ReadyLIFT offers several different leveling and lift solutions to properly enhance the stance and driving quality of the 2019-2026 Ram 1500 truck 4WD. Like the body design, the suspension design of the 2019-2025 Ram 1500 4WD features some unique design elements that differ from the previous generation Ram. These differences were tackled by our engineers as a result, we now offer a High-strength fabricated offset steal spacer - bolt on leveling kit to properly level these new Ram 1500 4WD trucks.

The 66-19150 kit provides 1.5" of front leveling lift in the form of our popular CNC machined billet aluminum top mount strut extension. The 2019-2026 Ram now comes with a composite upper control arm with a sheet metal cover. Our engineers determined the stresses around the ball joint would be too great for a traditional strut extension leveling kit. To add strength and security to your new leveling setup, we have developed a new heavy-duty DOM tube steel upper control arm with corrected ball joint angle cups for proper pivot angle. Our 66-19150 1.5" front leveling kit will get the job done right and affordably. This kit is for use exclusively on air-suspension equipped trucks.

Tire Fitment & Clearance

Max tire: 285/65-20 on 20x9 +18

Wheel and tire combinations must be test-fitted. Tire construction, wheel offset and vehicle configuration can affect clearance and ride quality.

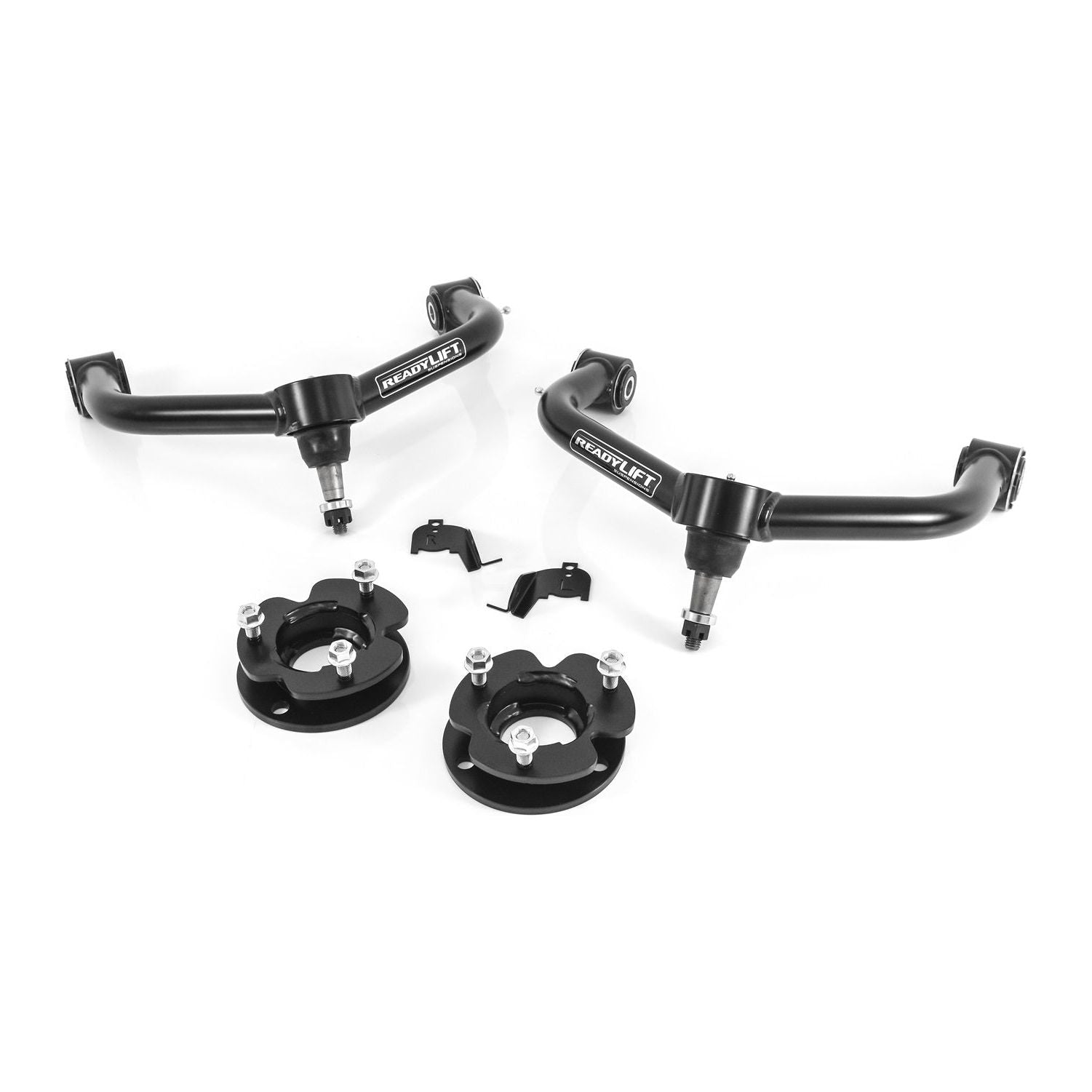

Kit Contents

Kit includes two fabricated steel strut extensions and hardware.

Tubular control arms with new ball joints and bushings.

Installation Instructions

• ReadyLIFT installation guide (PDF)

Warranty

ReadyLIFT’s product warranty applies to the original purchaser and covers eligible missing or defective components. Wearable components, including shocks, ball joints, heim joints, bushings and steering extensions, are covered for up to one year. Off-road abuse is excluded; Jeep SST and Terrain Flex lift kits are covered for normal recreational off-road use. Discontinued, clearance and outlet products are excluded. Labour, installation and related fees are not refundable, and consequential vehicle damage is excluded. Coverage is subject to ReadyLIFT’s full terms: ReadyLIFT warranty terms
