READYLIFT | ZR2 AT4X 1.5" Leveling Kit | 22-26 Chevrolet Silverado 1500 / 22-26 GMC Sierra 1500 | 66-32150
Description
ReadyLIFT 2022-2026 Chevy/GMC 1500 ZR2 / AT4X 1.5" Leveling Kit | 66-32150
Overview & Application Notes
Tire 33x11.50 on 20x9 0 offset wheel
1.5'' Leveling Kit
Max tire with trimming 295/60-20, 20x9 0 offset wheel
Features interlocking 'puzzle-type' pre-load spacer for easy installation
Includes DOM tube steel upper control arms with TCT maintenance-free pivot bushings.
Retains factory turning radius.
Includes ReadyGuard Powertrain Warranty.
NOTES: Use of Auto 4 Hi feature not recommended.
Product Details
The leveling kit provides the required amount of level lift without causing compromises to the factory strut geometry and clearances with our new interlocking pre-load spacer for ease of installation. Considering the factory upper control arm's limited dynamic range when the AT4X/ZR2 truck is further lifted, this leveling kit includes our popular tubular upper control arms with corrected ball joint cup angles, heavy-duty replaceable ball joints, and our new Terrain Control Technology (TCT) maintenance-free pivot bushings with side-biter washers to improve alignment retention.
Tire 33x11.50 on 20x9 0 offset wheel
Max tire with trimming 295/60-20, 20x9 0 offset wheel
Features interlocking 'puzzle-type' pre-load spacer for easy installation
Includes DOM tube steel upper control arms with TCT maintenance-free pivot bushings.
Retains factory turning radius.
Includes ReadyGuard Powertrain Warranty.
NOTES: Use of Auto 4 Hi feature not recommended.
Tire Fitment & Clearance
Note: AT4X and ZR2 may not fit the same size tire. This is due to the difference in the front fender opening design.
Tire 33x11.50 on 20x9 0 offset wheel
Max tire with trimming 295/60-20, 20x9 0 offset wheel
Wheel and tire combinations must be test-fitted. Tire construction, wheel offset and vehicle configuration can affect clearance and ride quality.

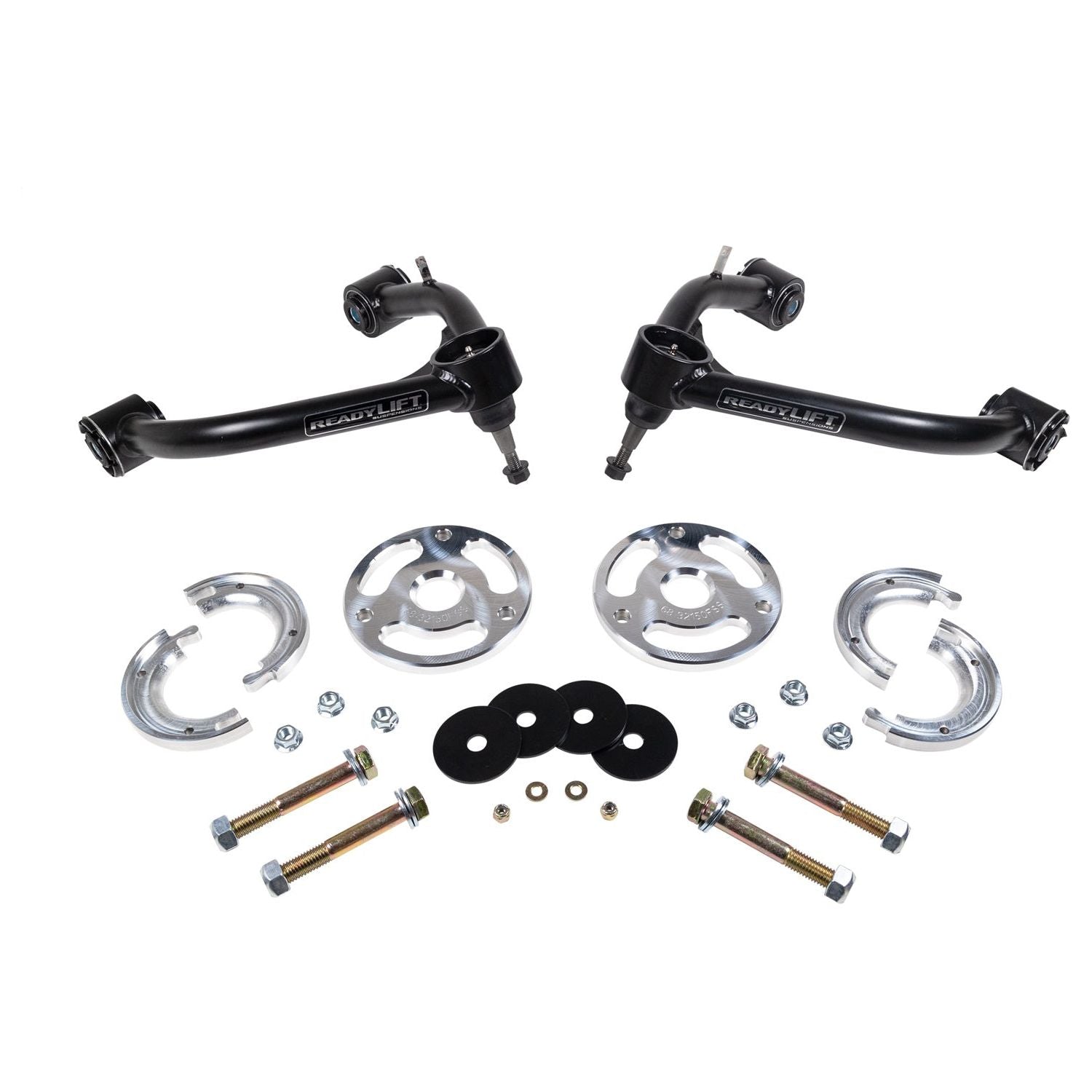

Kit Contents
Front Strut Spacers
Shock Assembly Preload Spacers Half
Upper Control Arm Left Hand Side
Upper Control Arm Right Hand Side
Laser Cut Washers
Hardware pack
Installation Instructions
Warranty
ReadyLIFT’s product warranty applies to the original purchaser and covers eligible missing or defective components. Wearable components, including shocks, ball joints, heim joints, bushings and steering extensions, are covered for up to one year. Off-road abuse is excluded; Jeep SST and Terrain Flex lift kits are covered for normal recreational off-road use. Discontinued, clearance and outlet products are excluded. Labour, installation and related fees are not refundable, and consequential vehicle damage is excluded. Coverage is subject to ReadyLIFT’s full terms: ReadyLIFT warranty terms
