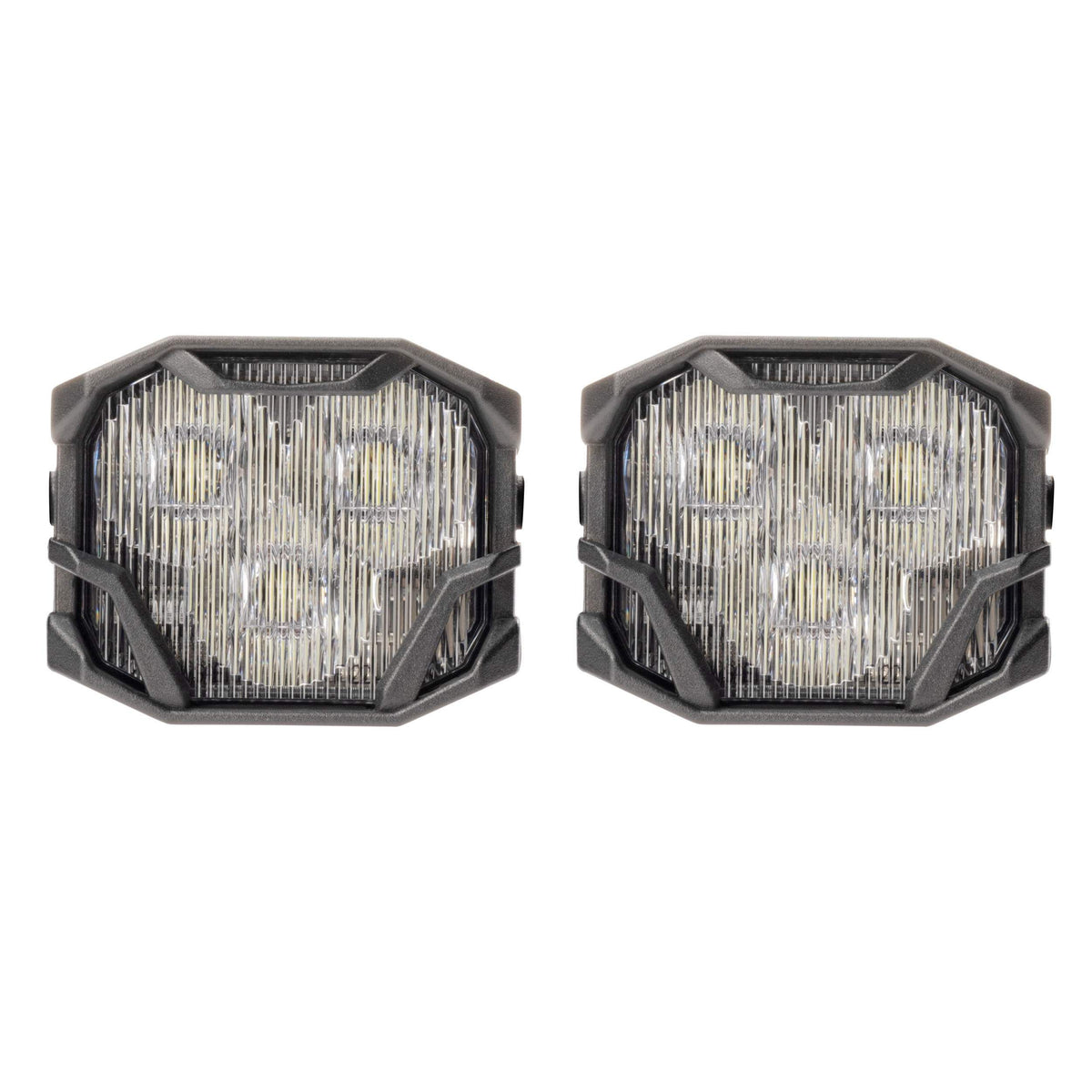

MORIMOTO | 4Banger 2.0 HXB LED Pods (SAE Wide / White / Set) | BAF011.2

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patented line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level. HXB Wide Beam: Illuminates the ground directly in front of the vehicle. The HXB Optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient resembles an SAE-Compliant fog light pattern, but with added intensity throughout thanks to the Osram HX Boost LEDs. The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control -- making it the most effective off-road LED fog light in the world. Form Meets Function: The overall footprint of the 4Banger is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable fitment when paired with Morimoto's flush mount or ditch light mounting kits, which are available for today's most popular trucks and SUVs. Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with four industry-leading beam patterns to suit every need: SAE wide/Fog, Spot, Flood, and Combo. Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance. Bolt-On: Morimoto offers a variety of application-specific mounting bracket kits for A-Pillars that make them bolt-on for many of today's most popular trucks. We also offer universal U-bracket mounts, and an industry-leading universal flush mount bracket too. Check out the full lineup for details on what's available for your application. Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. Deutsch DT 2-Pin female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.

Features & Specifications

• Note: These specifications are per pod / each!
• Intensity: 21,000 Cd (Post Warm-Up) (210lux @ 10m)
• Input: Integrated Deutsch DT 2-Pin
• Power (stabilized): 42w
• Current: 3.2A @ 13.5V DC
• Peak Luminosity (raw): 3,000lm
• Dimensions: 82mm W, 67mm H, 60mm D
• Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
• Light Source: 3x Osram HX Boost (5700K)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

What's Included

• LED Pods: 2x (One Pair) Morimoto 4Banger HXB Wide (White)
• Brackets: Not Included, Must Purchase Separately (BAF046 or BAF047)
• Hardware: Complete pack (stainless steel)

Vehicle Compatibility & Important Notes

• Universal: With Included U Brackets

Product Details

• Package Dimensions: 10 × 5 × 3 in
• Package Weight: 2 lb

Warranty: Lifetime Limited
