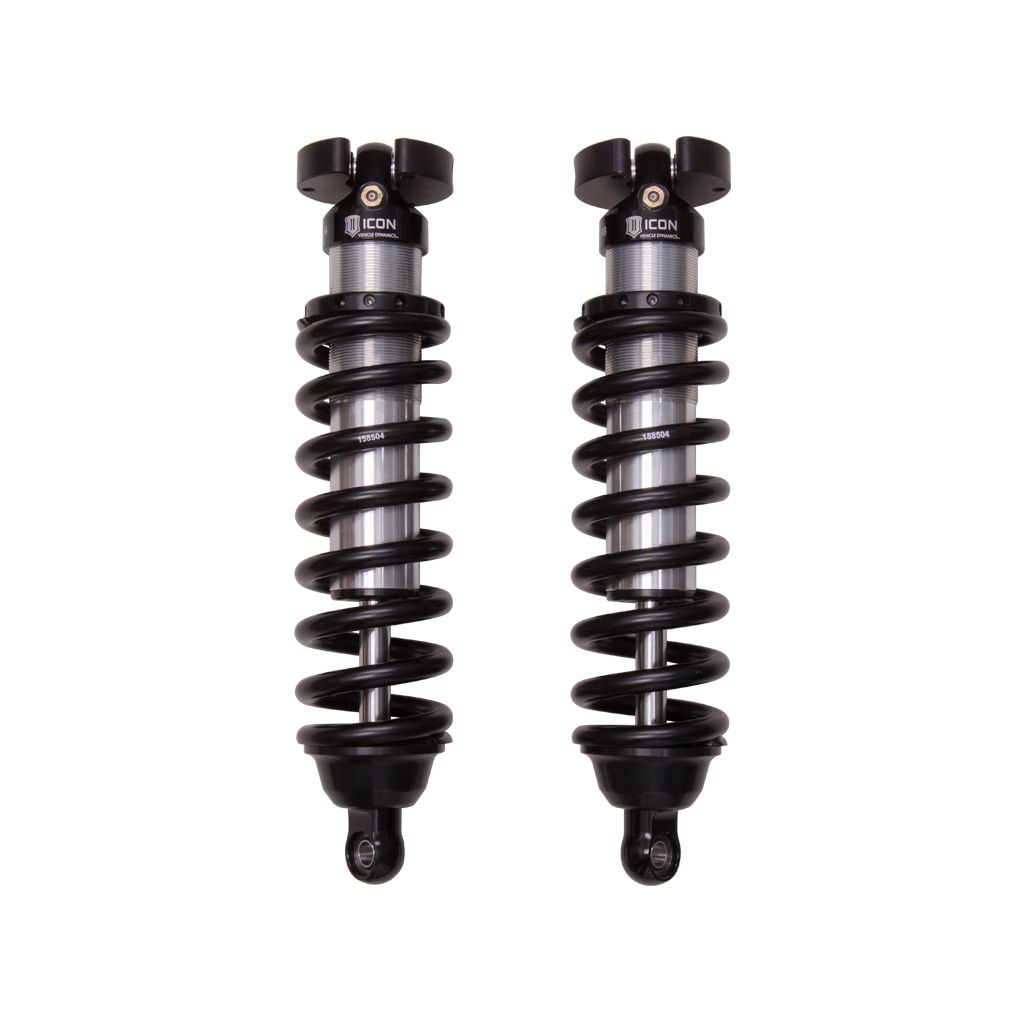

ICON VEHICLE DYNAMICS | 96-04 Tacoma 2.5 VS IR Coilover Kit W Procomp 6 Inch Icon Vehicle Dynamics | 58611-CB

96-04 Tacoma 2.5 VS IR Coilover Kit W Procomp 6 Inch Icon Vehicle Dynamics.

Details

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 21.62
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 26.27
• Front Spring Rate: 650 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Ride Height Raising Distance: 3.0
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 257339 - 7/8 Shaft 13.25 Oal, 9.00 Travel, 252010 - 2.5 Ifp Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 252004 - Economy Needle Charging Tool, 611019 - Coilover Hardware Kit Pair, 252003 - Seal Install Tool 2.5/3.0, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 4.67
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
