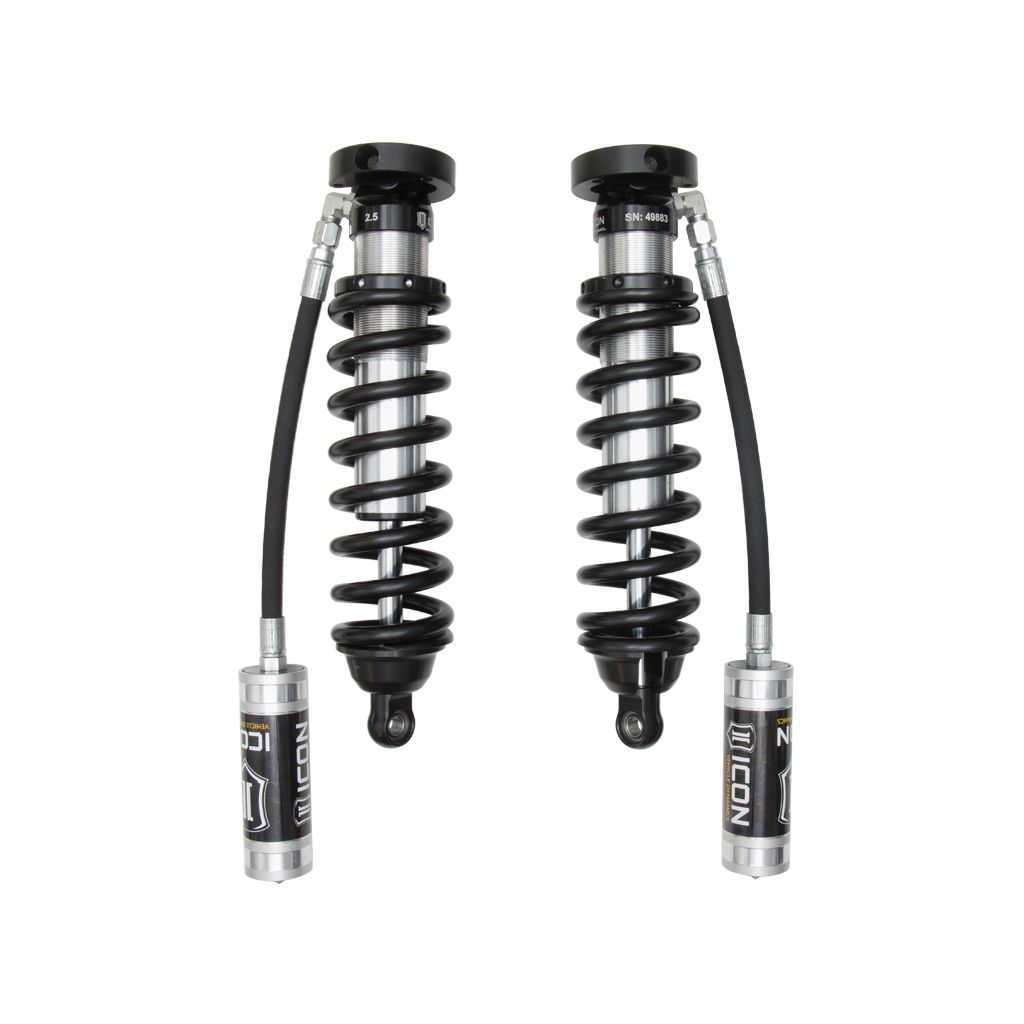

ICON VEHICLE DYNAMICS | 96-02 4Runner 2.5 VS RR Coilover Kit Icon Vehicle Dynamics | 58712

ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner.

ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.

Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Inch Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.

Features and Benefits:

• Increased wheel travel over stock
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock both on and off-road
• Height-adjustable coilovers offer 0-3 Inch of lift height adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8 Inch induction hardened, chrome plated shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 100 Percent Bolt-on - no cutting or welding necessary for installation

Details

• Material: Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Boot Included: No
• Coil Over Springs Included: Yes
• Compressed Length: 14.5
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 19.45
• Front Spring Rate: 650 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.0 Inch
• Maximum Ride Height Raising Distance: 3.0
• Minimum Lift: 0.0 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Self Leveling: No
• Service Parts: 191016 - 7.5 Inch Finned Resi Upgrade Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 252003 - Seal Install Tool 2.5/3.0, 611019 - Coilover Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 4.96
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
