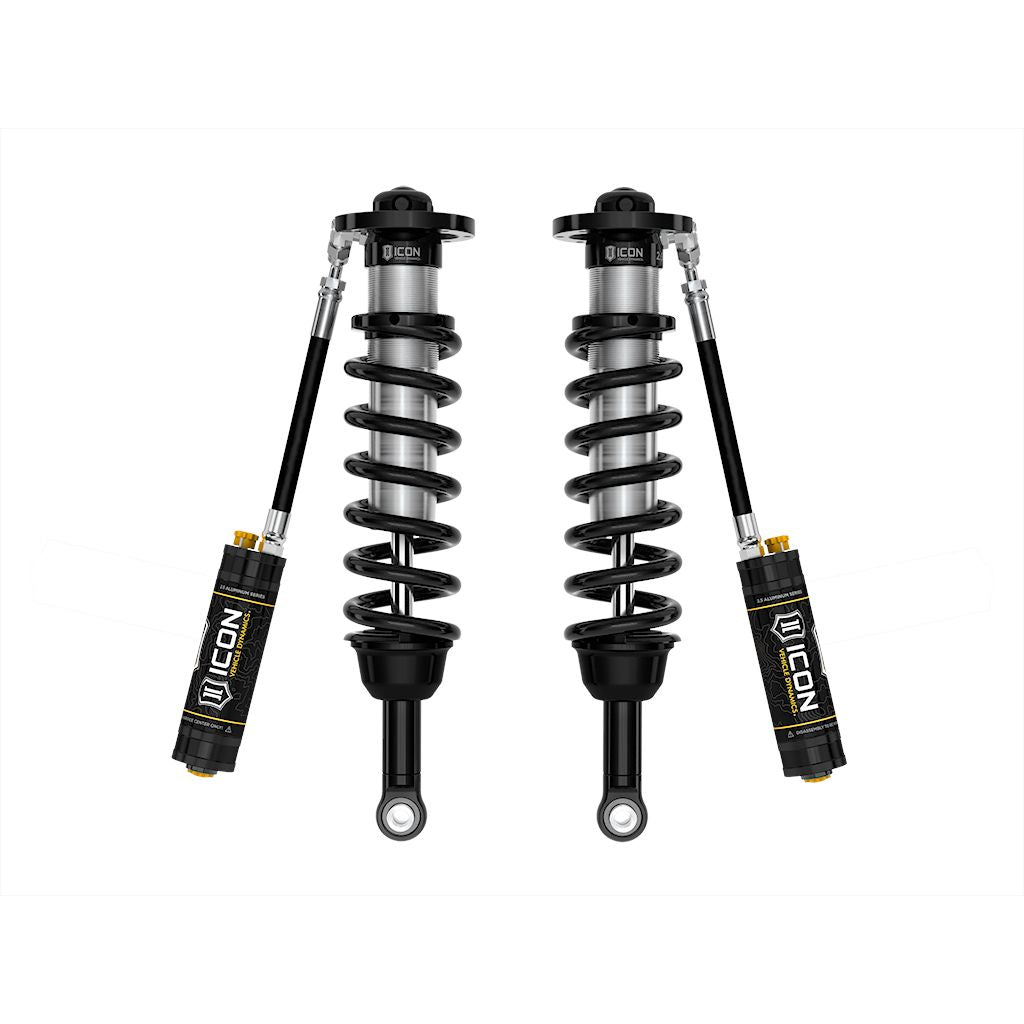

ICON VEHICLE DYNAMICS | 2025 Toyota 4Runner 4WD 1.25-3 Inch Lift Front 2.5 Series Coilover Kit Remote Reservoir W/ CDCV Icon Vehicle Dynamics | 58795C

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

When paired with 2.5 Aluminum Series CDCV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Features and Benefits:

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3 Inch of lift height adjustment over stock
• 2.5 Inch diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Details

• Material: Steel, Aluminum
• Active Or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Boot Included: No
• Coil Over Springs Included: Yes
• Compressed Length: 19.2
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Dust Shield: No
• Dust Shield Included: No
• Extended Length: 24.85
• Front Spring Rate: 550 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.0 Inch
• Maximum Ride Height Raising Distance: 3.0
• Minimum Lift: 1.25 Inch
• Oem Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Self Leveling: No
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eyelet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 5.65
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 55160 - 24-25 Tacoma 4Wd/24-25 Lc250/25 T4R 4Wd Front Diff Drop Kit, 58452Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Tubular UCA Dj Pro Kit, 58552Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198001 - Billet Spanner Wrench Kit, 58552Gdj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit Gold Ano
