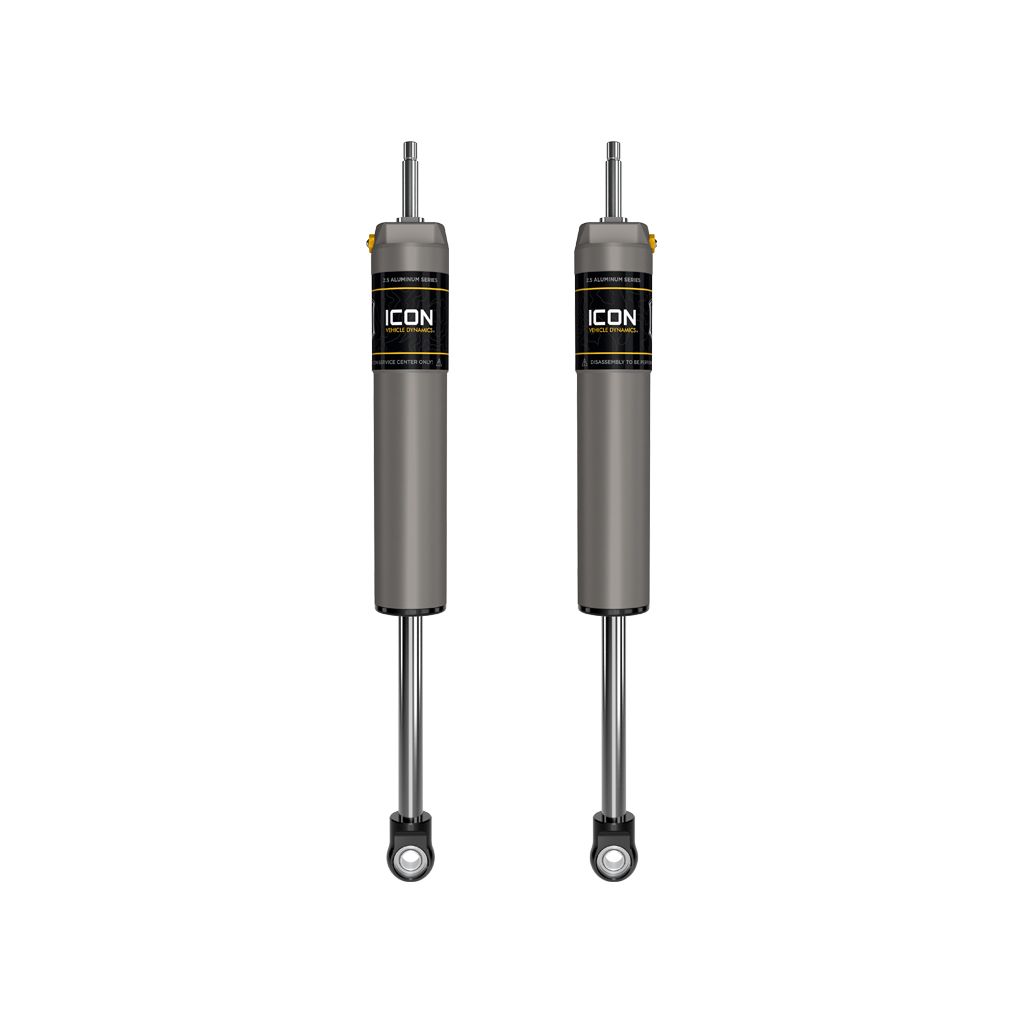

ICON VEHICLE DYNAMICS | 2023-2025 Ford F-250/F-350 Super Duty 4WD 4.5 Inch Lift Front V.S. 2.5 Aluminum Series Shock Absorbers Internal Reservoir Pair Icon Vehicle Dynamics | 67611P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. The larger diameter and oil volume of ICON 2.5 Internal Reservoir shocks provide improved suspension performance, better ride quality, and heat dissipation properties than the standard 2.0 Aluminum Series Internal Reservoir shocks.

If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

Features and Benefits:

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with internal reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8 Inch diameter induction hardened, chrome plated shock shaft
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
• 100 Percent Rebuildable
• 100 Percent Revalveable

Details

• Active Or Passive Suspension: Passive
• Adjustable: No
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Boot Included: No
• Bore Diameter: 2.25
• Cylinder Color: Gray
• Cylinder Diameter: 2.5
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: No
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Reservoir Type: Internal
• Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 252004 - Economy Needle Charging Tool, 611006 - 9/16 HD Stem Bushing Kit, 252010 - 2.5 Ifp Rebuild Kit, 257305 - 7/8 Shaft 13.00 Oal, 8.75 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder Of Stem
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Tube Outside Diameter: 2.5
• Upper Mount Type: Stem
• Valving Type: Digressive
• Add On Part: 252008 - 2.5 X 13 Shock Boot Black (Pair)
