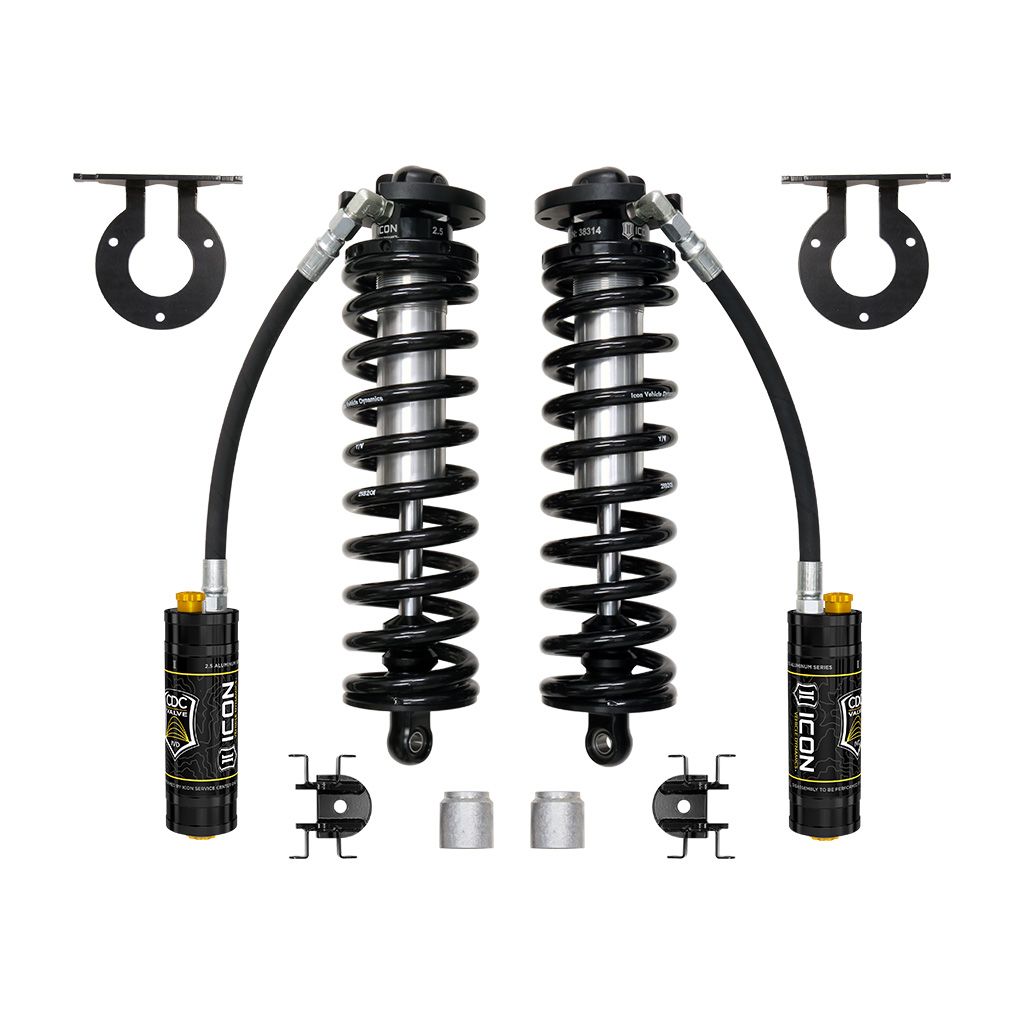

ICON VEHICLE DYNAMICS | 2023-2025 Ford F-250/F-350 Super Duty 4WD 2.5-3 Inch Lift V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir W/ CDCV Icon Vehicle Dynamics | 61723C

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2023-2025 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.

The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. ICON's CDC (Compression Damping Control) Valve option adds to the adjustability of these coilover conversion kits, allowing the end-user to adjust the ride characteristics of the vehicle with the turn of a knob.

Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Features and Benefits:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3 Inch of front lift over stock
• CDCV technology allows for quick and easy compression damping adjustment
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

Details

• Material: Steel, Aluminum
• Active Or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Height: Yes
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Alignment Cams Included: No
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 12.75
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 19.71
• Front Spring Rate: 400 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.75 Inch
• Maximum Ride Height Raising Distance: 3.75
• Minimum Lift: 2.5 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Self Leveling: No
• Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 252003 - Seal Install Tool 2.5/3.0, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 611019 - Coilover Hardware Kit Pair
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 6.96
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
