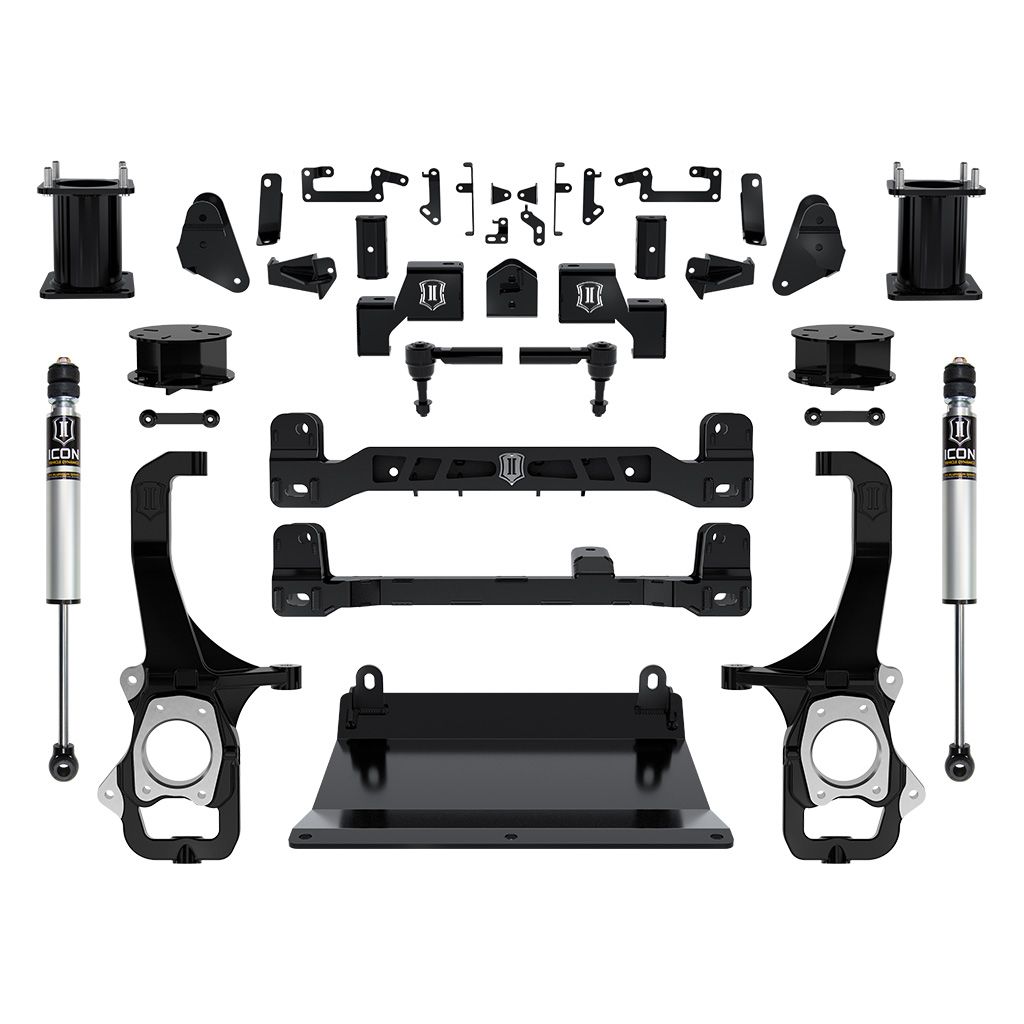

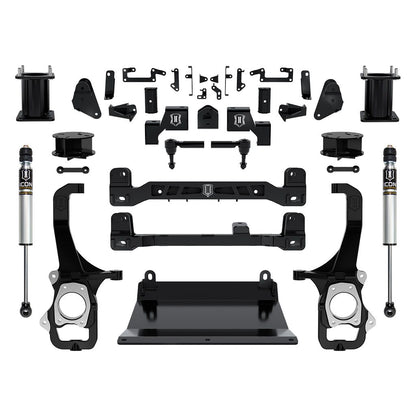

ICON VEHICLE DYNAMICS | 2022-2024 Toyota Tundra 6 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics | K53271

Optimized design to fit 37 Inch tires with full articulation (larger tires may fit but fender trimming and modifications will be required).

Features and Benefits:

• Maintains factory track width
• Front coilover spacer kit with heavy duty steel construction
• Provides 6 Inch front suspension lift with only 4 Inch of crossmember drop
• Single piece high-strength ductile iron steering knuckles with built-in 4 Inch drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks to improve rear suspension performance
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Details

• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Bushings Included: No
• Grade Type: Performance
• Maximum Lift: 6.0 Inch
• Maximum Lift Front: 6.0 Inch
• Maximum Lift Rear: 3.0 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: No
• Rear Reservoir Style: Internal
• Rear Shock Body Diameter: 2.0
• Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
• Shocks Included: Yes
• StrutS Included: No
• Add On Part: 58561Dj - 22-25 Tundra/23-25 Sequoia Billet UCA Dj Pro Kit, 58461Dj - 22-25 Tundra/23-25 Sequoia Tubular UCA Dj Pro Kit
