ICON VEHICLE DYNAMICS | 5-6" Lift Front V.S. 2.5 Series Coilover Kit Remote Reservoir Pair | 22-26 Toyota Tundra | 58771
Description

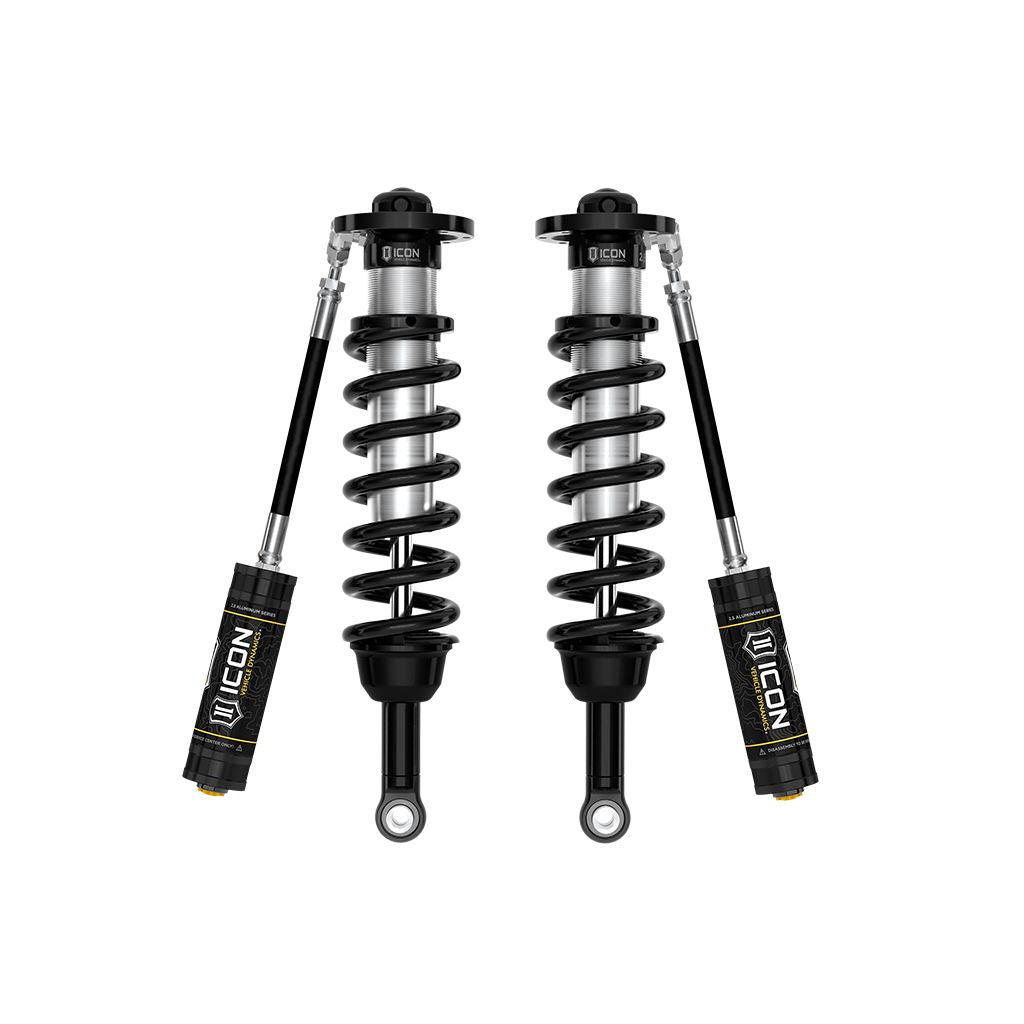

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6 Inch Lift Performance Suspension System and allow up to 5-6 Inch of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.
Features and Benefits:
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Specific length designed for use with ICON 6 Inch Lift Performance Suspension System
- Adjustable ride height offers 5-6 Inch of front lift over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Details
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 20.23
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 26.08
- Front Spring Rate: 700 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 6.0 Inch
- Maximum Ride Height Raising Distance: 6.0
- Minimum Lift: 5.0 Inch
- Oem Wheels & Tires Fitment: No
- Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.86
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit
Fitment Table
Verify the exact manufacturer part number and vehicle application before ordering or installation.
58771 — Manufacturer fitment notes
2022-2026 Toyota Tundra, 5-6" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir, Pair
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights Indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #381: Requires minimum of 20" diameter wheels.
- APPLICATION NOTE #383: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
- APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
- APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
- APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
- APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
