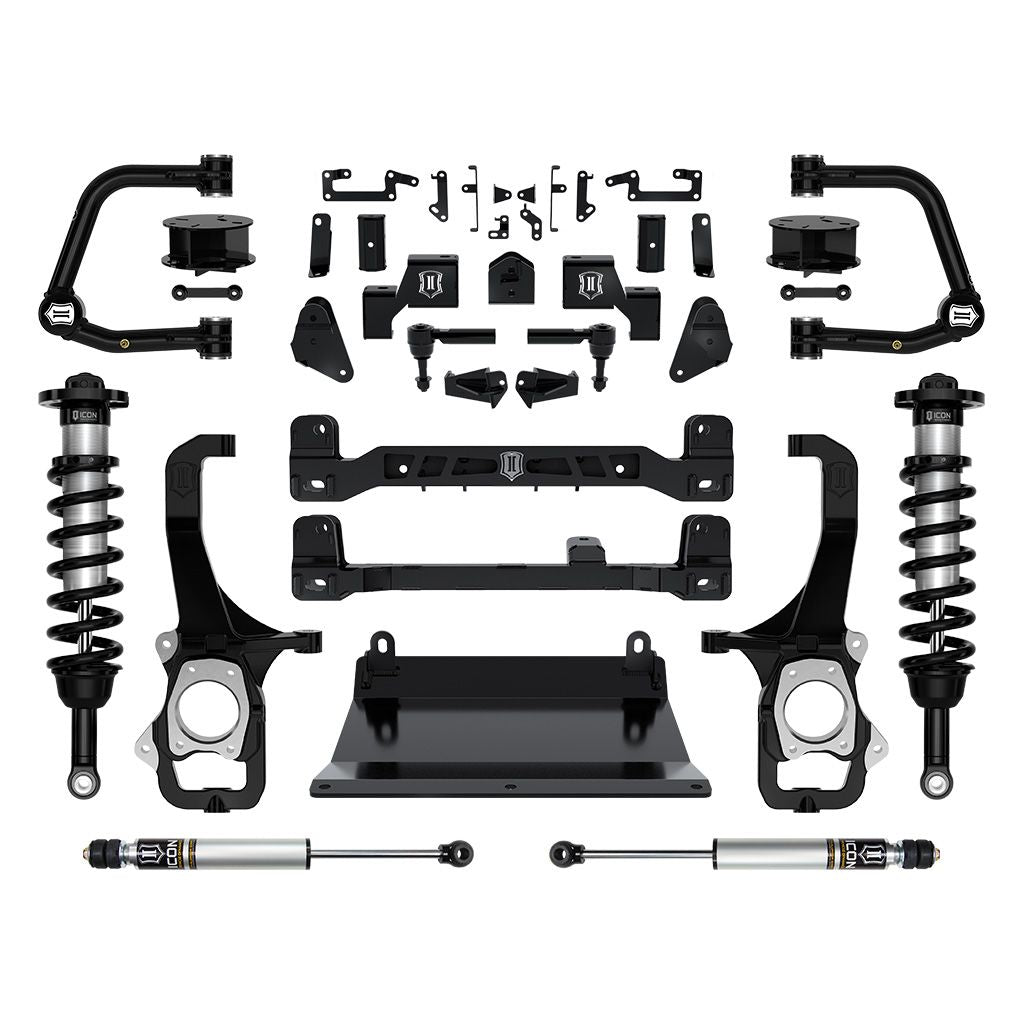

ICON VEHICLE DYNAMICS | 2022-2023 Toyota Tundra 6 Inch Lift Stage 2 Suspension System With Tubular Upper Control Arms Icon Vehicle Dynamics | K53272T

2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control.

Features and Benefits:

• System allows for up to 40 Percent increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37 Inch tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6 Inch of front lift over stock (up to 6 Inch of lift with only 4 Inch of crossmember drop)
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4 Inch drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Details

• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Control Arm: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Bushings Included: No
• Coils Quantity Front: 2.0
• Front Reservoir Style: Internal
• Front Shock Body Diameter: 2.5
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 6.0 Inch
• Maximum Lift Front: 6.0 Inch
• Maximum Lift Rear: 3.0 Inch
• Minimum Lift Front: 5.0 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: No
• Rear Reservoir Style: Internal
• Rear Shock Body Diameter: 2.0
• Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• StrutS Included: No
• Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 191013 - Nipple Greasing Adapter Kit
