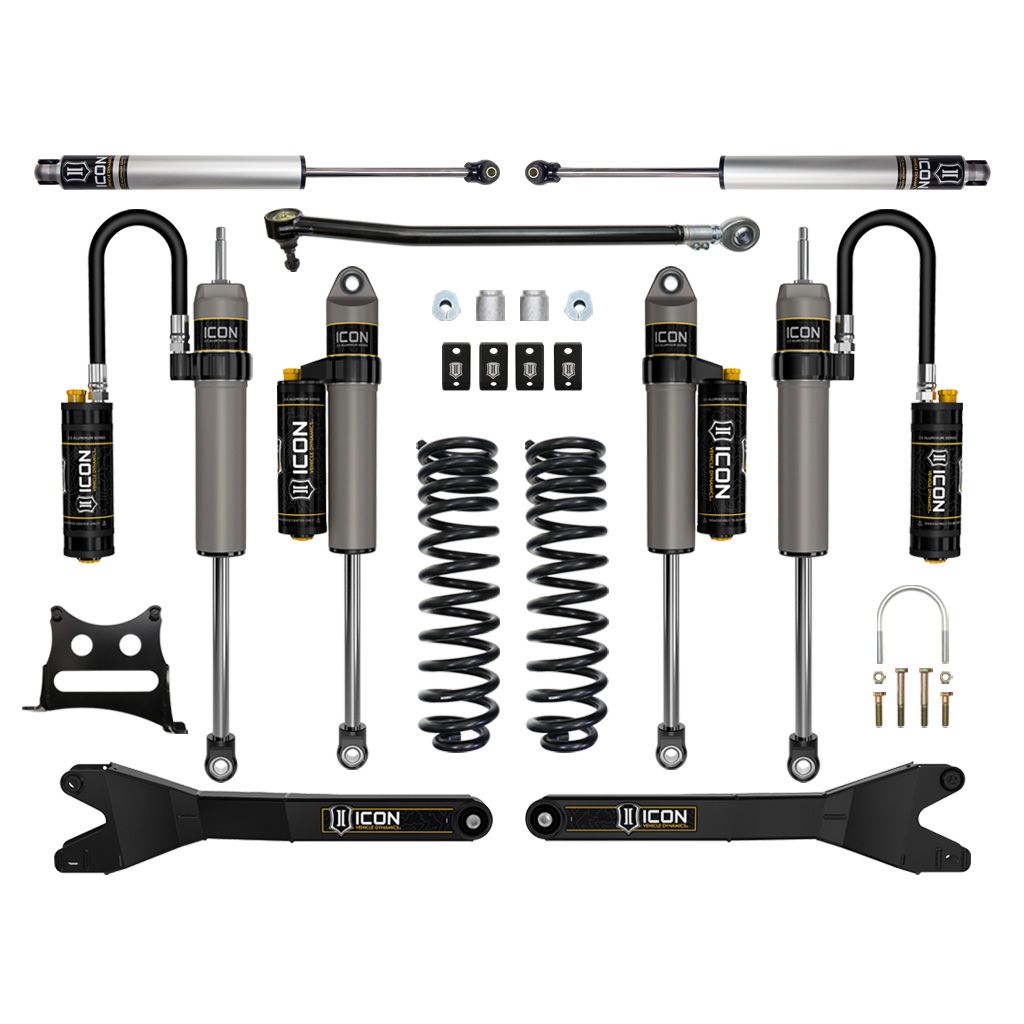

ICON VEHICLE DYNAMICS | 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel 2.5 Inch Lift Stage 6 Suspension System Icon Vehicle Dynamics | K62516

This ICON Vehicle Dynamics 2.5 Inch suspension system is the best way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure.

This Stage 5 System combines dual rate coil springs, alignment cams, CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, an adjustable track bar designed specifically for the 2017-UP Super Duty, ICON's dual opposing 2.0 Aluminum Series steering stabilizer kit, and fabriacted Radius Arm System for the ultimate in on-road comfort and off-road performance. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.

Features and Benefits:

• Fits 2017-2019 F250 / F350 4WD applications
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 25 Percent increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• ICON CDC Valve allows quick and easy end user compression adjustability
• Shocks are fully rebuildable and revalvable
• Corrosion resistant anodized aluminum shock bodies with 7/8 Inch shafts (2.5 Aluminum Series shocks)
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 61111 - 17-25 FSD Front 2.5 Inch Extended Ss Brake Line Kit, 191014 - .25 Inch Collar Spanner Pin Wrench
