ICON VEHICLE DYNAMICS | 2016-2023 Nissan Titan XD 3 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics | K83031

The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that's aimed to blend the lines between AAAA ton efficiency and AAAA ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market.

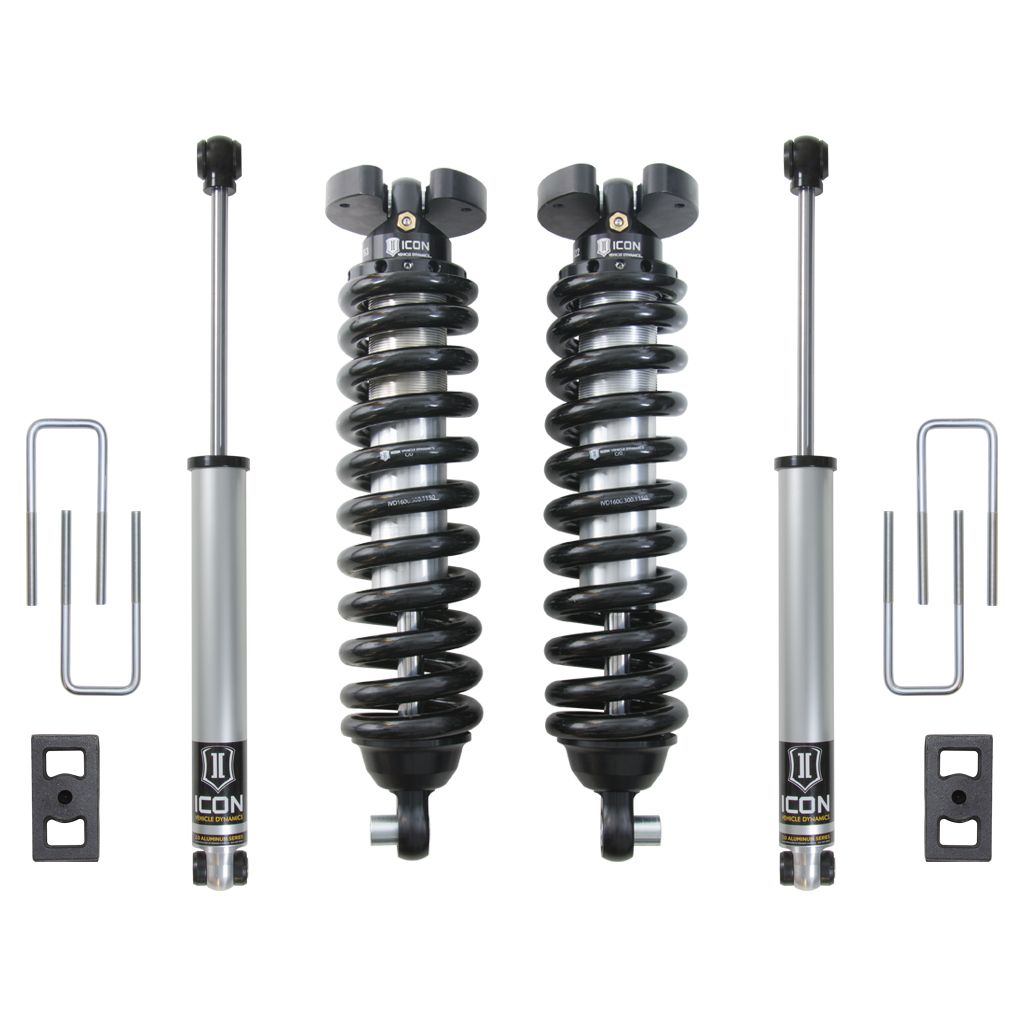

The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none.

The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features and Benefits:

• Fits 2WD / 4WD applications
• Increased ride quality over stock with no change in towing capacity
• Approximately 32 Percent increased front wheel travel over stock
• Adjustable coilovers provide 2.5-3 Inch of lift height
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
• Corrosion resistant anodized shock body with 5/8 Inch shaft (2.0 Aluminum Series shocks)
• FK Rod End bearings for extended longevity and minimal deflection
• 100 Percent bolt-on system

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Grade Type: Performance
• Maximum Lift: 3.0 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
