ICON VEHICLE DYNAMICS | 2015-2022 Colorado/Canyon .75-3 Inch Lift Front 2.5 Vs Remote/CDCV Coilover Kit Icon Vehicle Dynamics | 71510C

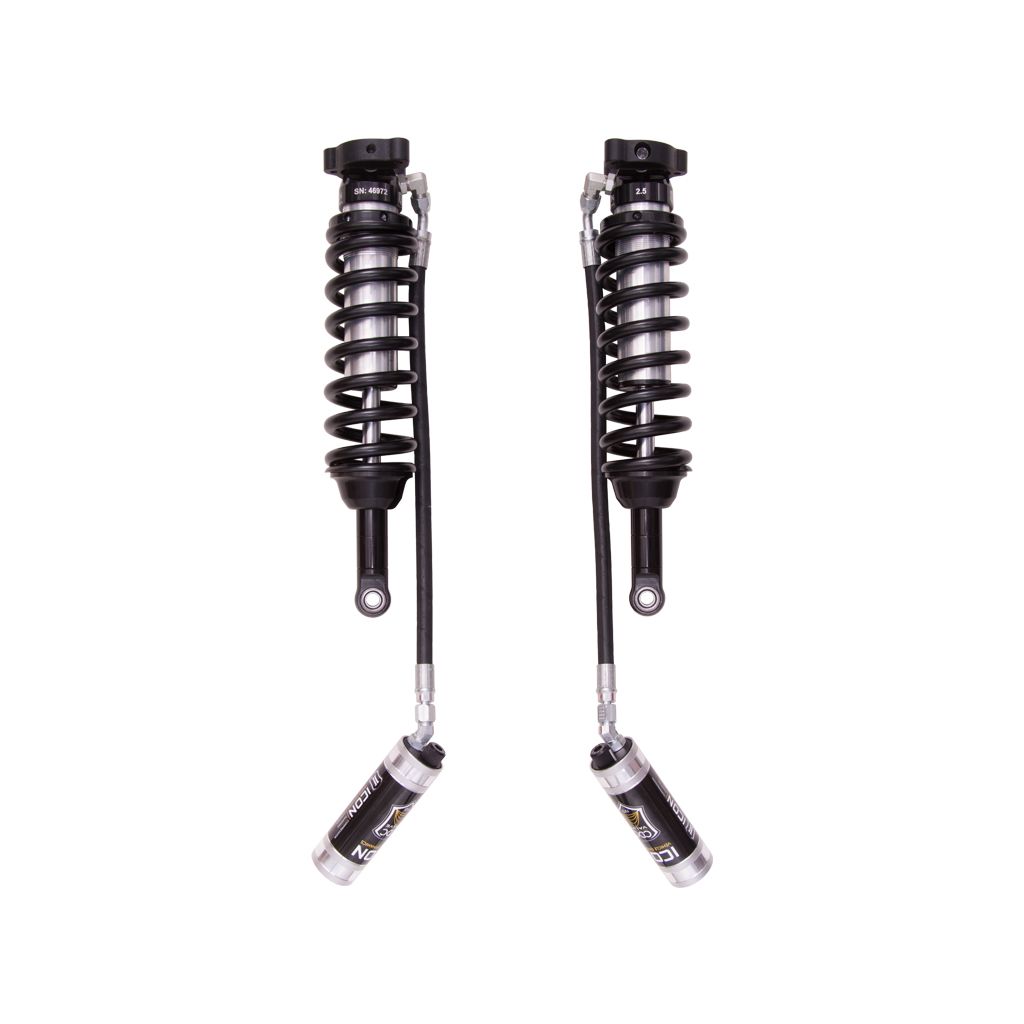

The ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2015-2022 Colorado / Canyon truck.

ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.

Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.

When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado / Canyon.

Features and Benefits:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended offroad use
• ICON CDCV equipped for external tuneability of your shocks
• Height-adjustable coilovers offer 1.75-3 Inch of lift height
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8 Inch shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 100 Percent Bolt-on - no drilling or welding necessary for installation

Details

• Material: Steel, Aluminum
• Active Or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 16.05
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 21.0
• Front Spring Rate: 650 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.0 Inch
• Maximum Ride Height Raising Distance: 3.0
• Minimum Lift: 0.75 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 32 Inch X 11.00 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Self Leveling: No
• Service Parts: 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 257338 - 7/8 Shaft 12.25 Oal, 8.00 Travel, 611019 - Coilover Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 4.95
• Upper Mount Type: Eyelet
• Valving Type: Digressive
• Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit
