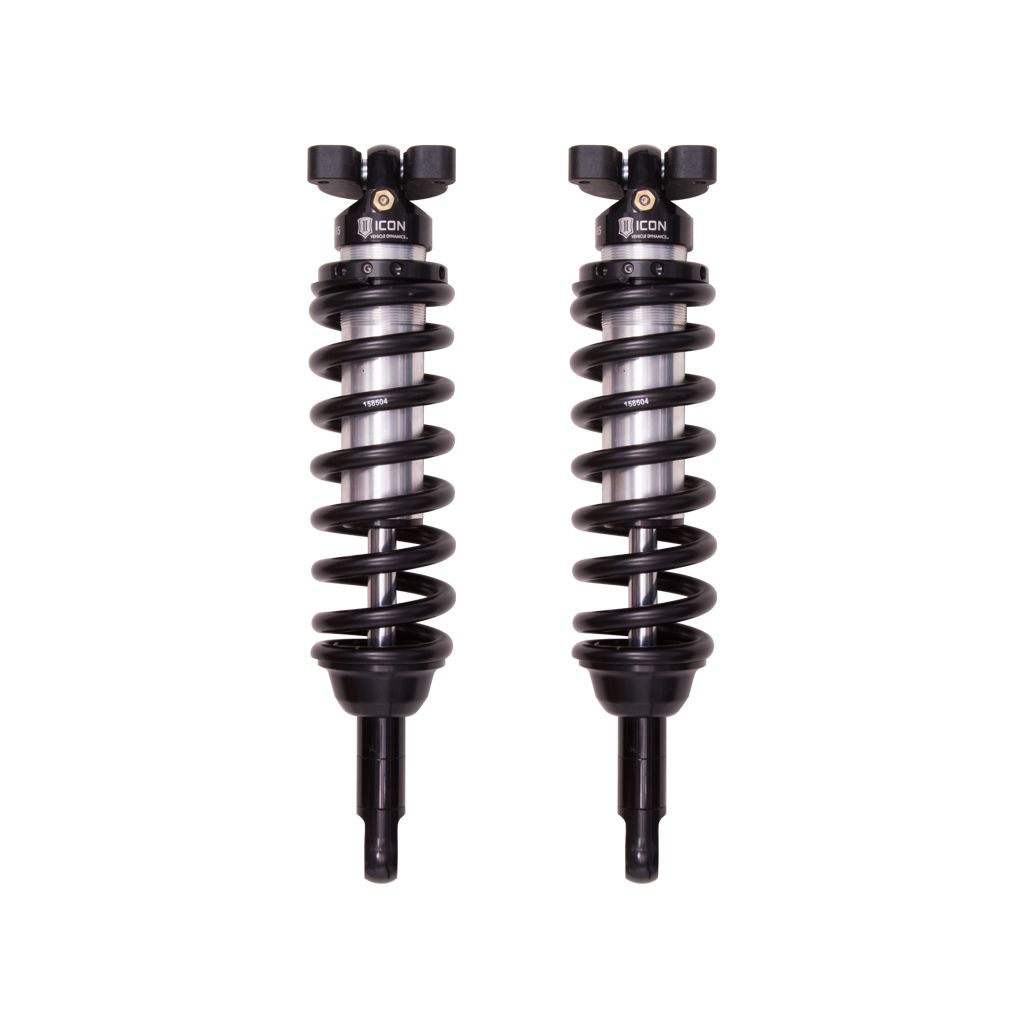

ICON VEHICLE DYNAMICS | 2015-2022 Colorado/Canyon .75-3 Inch Lift Front 2.5 Vs Coilover Kit Icon Vehicle Dynamics | 71010

ICON Vehicle Dynamics V.S. Series 2.5 Inchcoilover shocks are an incredible upgrade for the front end of 2015-2022 Colorado/Canyon trucks.

ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-3 Inch lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.

When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado/Canyon truck.

Features and Benefits:

• 25 Percent increase in wheel travel over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Improved ride quality over stock on and off road
• Height-adjustable coilovers offer 1.75-3 Inch of lift height
• ICON engineered Eibach Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8 Inch shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 100 Percent Bolt-on - no drilling or welding necessary for installation

Details

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 16.05
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 21.0
• Front Spring Rate: 650 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.0 Inch
• Maximum Ride Height Raising Distance: 3.0
• Minimum Lift: 0.75 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 32 Inch X 11.00 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 611019 - Coilover Hardware Kit Pair, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 252010 - 2.5 Ifp Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257338 - 7/8 Shaft 12.25 Oal, 8.00 Travel, 252004 - Economy Needle Charging Tool, 254100G - 1 Gallon Icon Performance Shock Oil
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650.0
• Spring Rate Type: Linear
• Travel Length: 4.95
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
