ICON VEHICLE DYNAMICS | 2014-2018 RAM 2500 4.5 Inch Lift Box Kit Icon Vehicle Dynamics | 214205

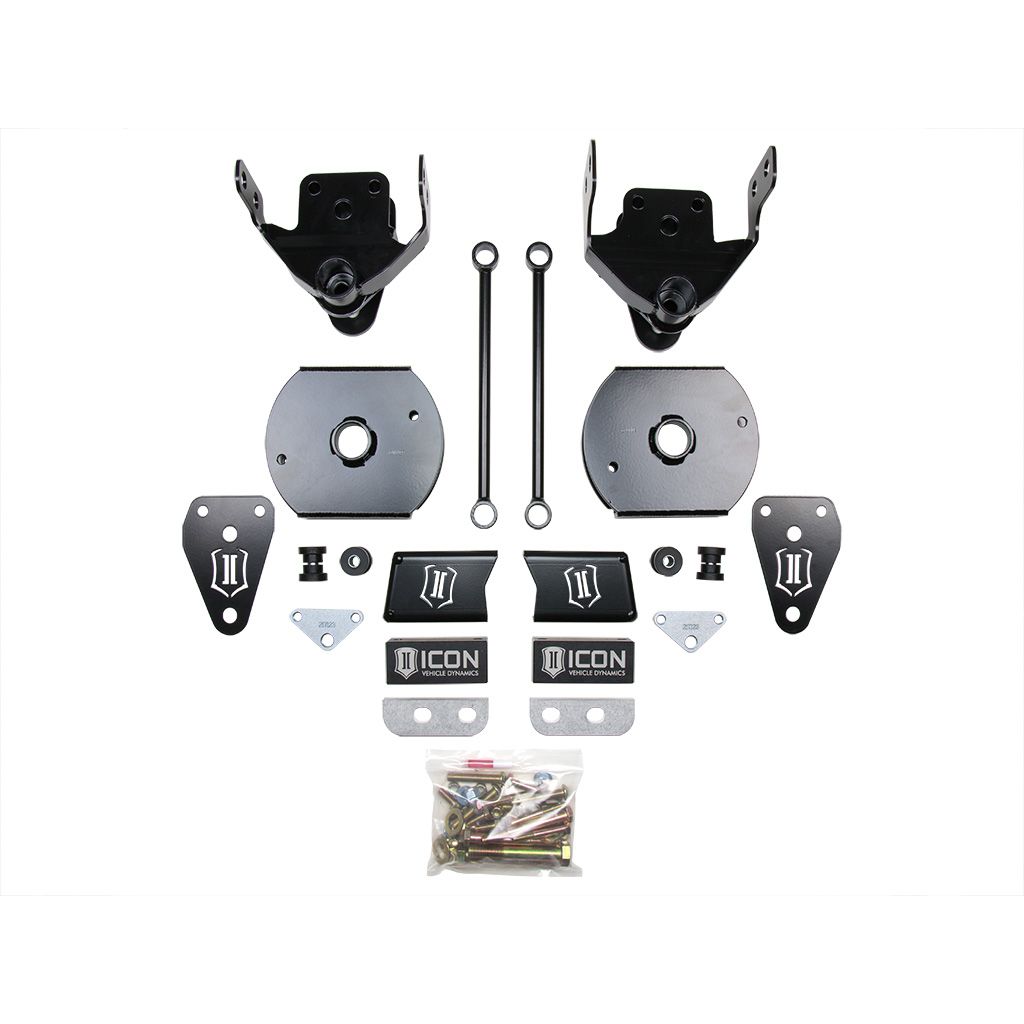

The ICON Vehicle Dynamics 2014-2018 Ram 2500 4.5 Inch Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 4.5 Inch lift suspension system. This kit includes fabricated radius arm drop brackets made from CNC laser cut and brake-formed steel plate for strength and corrected radius arm angle for proper front end alignment.

Front sway bar drop brackets and rear sway bar links reduce sway bar angle and prevent bind through the full range of suspension travel. Fabricated rear coil spacers provide 2 inch of rear lift over stock when paired with the stock rear coil or air springs, yielding a level stance from front to rear.

Billet aluminum rear bump stop spacers properly limit compression travel to protect suspension components during spirited off-road driving. All fabricated components are coated with a semi-gloss black powder coat finish for corrosion resistance and backed up with ICON's Limited Lifetime Warranty.

Features and Benefits:

• Essential components for install of ICON 4.5 Inch lift suspension systems
• Fabricated radius arm drop brackets
• 2 inch lift rear fabricated coil spacers work with stock coil springs or air bags
• Front sway bar drop brackets and extended rear sway bar links prevent sway bar bind
• Polyurethane sway bar link bushings
• Billet aluminum rear bump stop spacers
• Semi-gloss black powder coat finish for all fabricated components
• Fully bolt on installation with all hardware included
• Protected by ICON's Limited Lifetime Warranty

Details

• Color: Black
• Bolt Grade: 8.0
• Bolt Material: Steel
• Bump Stops Included: No
• Bushing Color: Black
• Bushings Included: Yes
• Grade Type: Performance
• Universal Or Specific Fit: Universal
