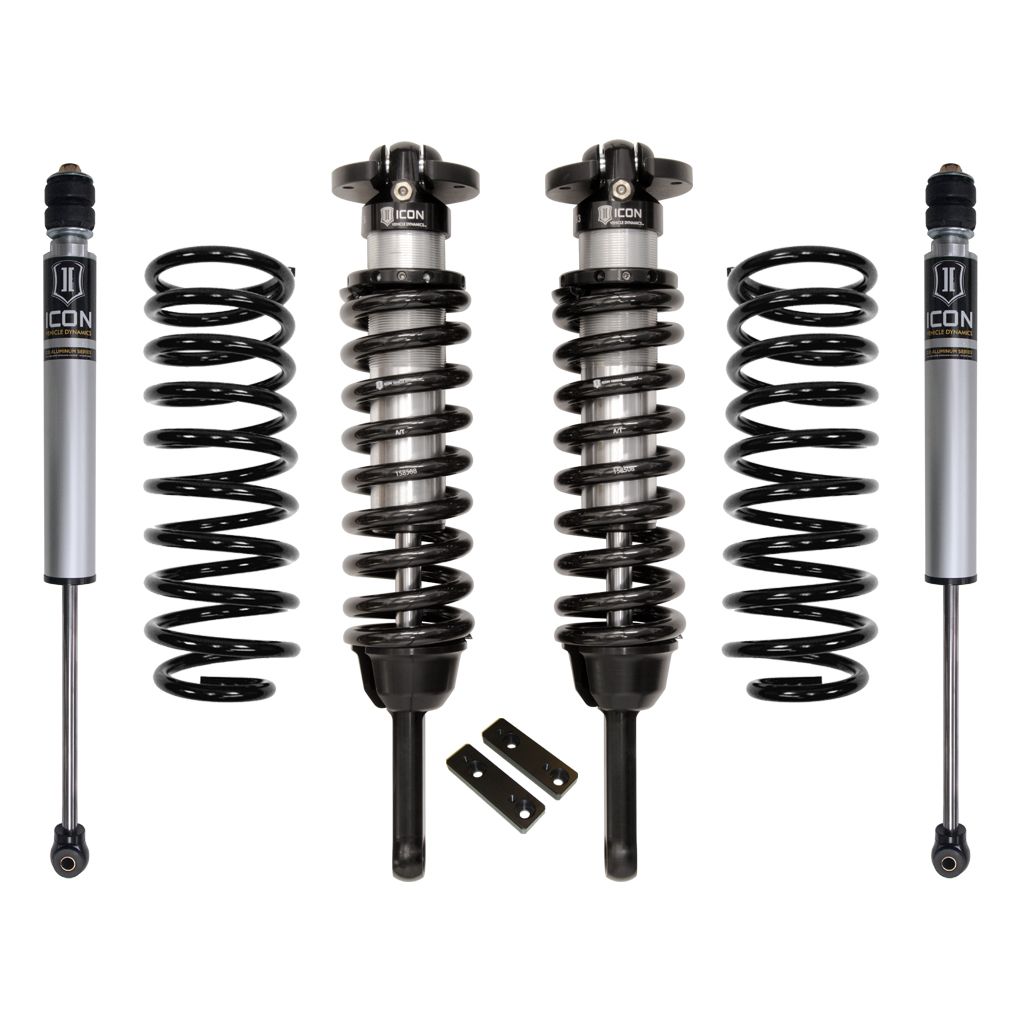

ICON VEHICLE DYNAMICS | 2010-2024 Toyota 4Runner 2010-2014 Toyota FJ Cruiser 0-3.5 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics | K53061

This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability.

ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5 Inch of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear.

This system is finished off with a pair of 2 inch lift rear coil springs that have been engineered to further improve ride quality and handling.

Features and Benefits:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5 Inch of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shock with 5/8 Inch shaft
• Bolt-on system means no cutting or welding necessary for install

Details

• Adjustable Damping: No
• Bushings Included: Yes
• Coil Quantity Front: 2.0
• Coils Quantity Front: 2.0
• Coils Quantity Rear: 2.0
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 3.5 Inch
• Maximum Lift Front: 3.5 Inch
• Maximum Lift Rear: 2.0 Inch
• Minimum Lift Front: 0.0 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Linear
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650.0
• Add On Part: 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 54200 - 07-14 FJ Cruiser 03-24 4Runner 03-23 GX Rear Adj Track Bar Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
