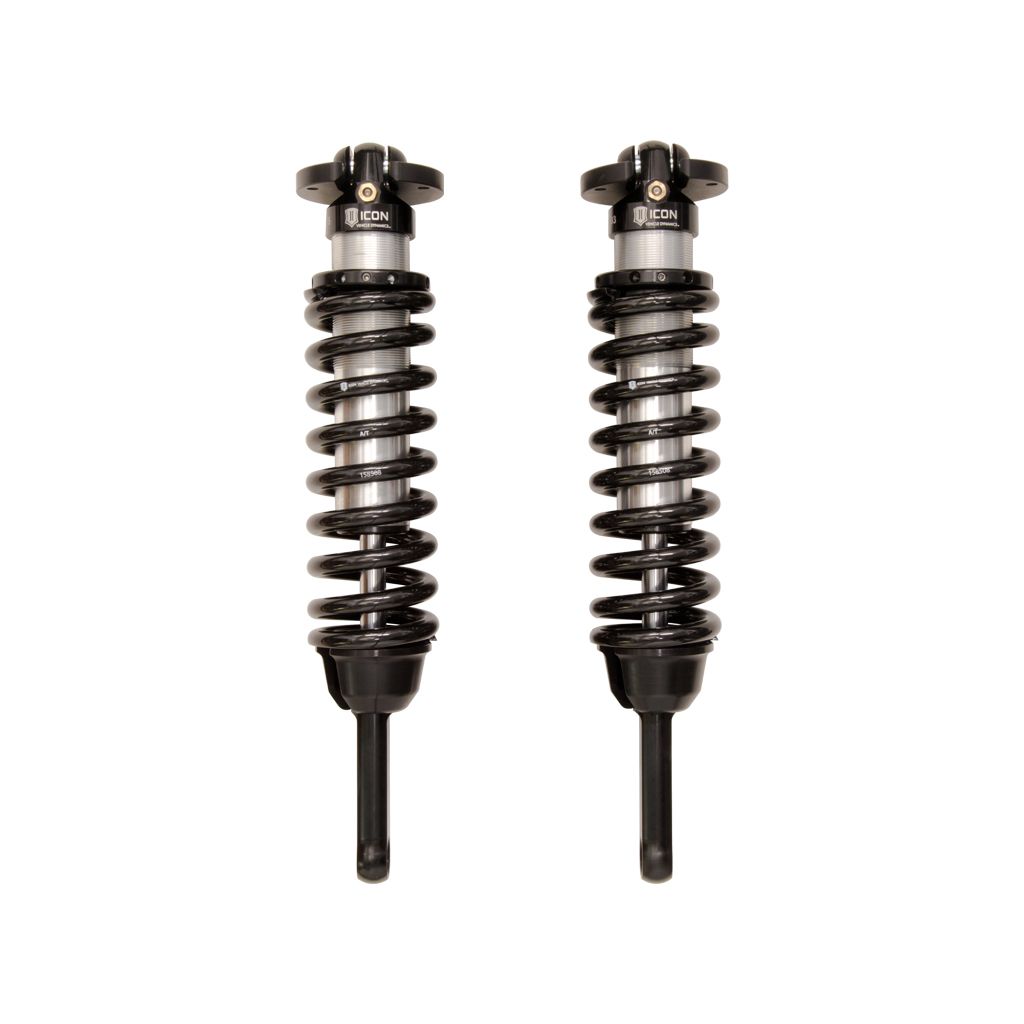

ICON VEHICLE DYNAMICS | 2010-2024 Toyota 4Runner 2010-2014 FJ Cruiser 2010-2023 Lexus GX460 0-3.5 Inch Lift V.S. 2.5 Series Extended Travel Coilover Kit Internal Reservoir Icon Vehicle Dynamics | 58647

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.

Their extended travel shock length yields the maximum travel possible with aftermarket front upper control arms and ICON's Vehicle-specific valving along with the larger 2.5 Inch shock body and increased piston area over stock components provide superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.

Features and Benefits:

• Adjustable coilovers yield 0-3.5 Inch of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8 Inch shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Details

• Material: Steel, Aluminum
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 17.42
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 22.57
• Front Spring Rate: 650 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.5 Inch
• Maximum Ride Height Raising Distance: 3.5
• Minimum Lift: 0.0 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 252010 - 2.5 Ifp Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252004 - Economy Needle Charging Tool, 611019 - Coilover Hardware Kit Pair
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 5.16
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 158508 - Coil Spring 1400.0300.0700 Black
