ICON VEHICLE DYNAMICS | 2007-2014 FJ Cruiser/2003-2024 4Runner/2008-2021 Land Cruiser/03-23 Lexus GX Billet Lower Trailing Arm Kit Icon Vehicle Dynamics | 54000

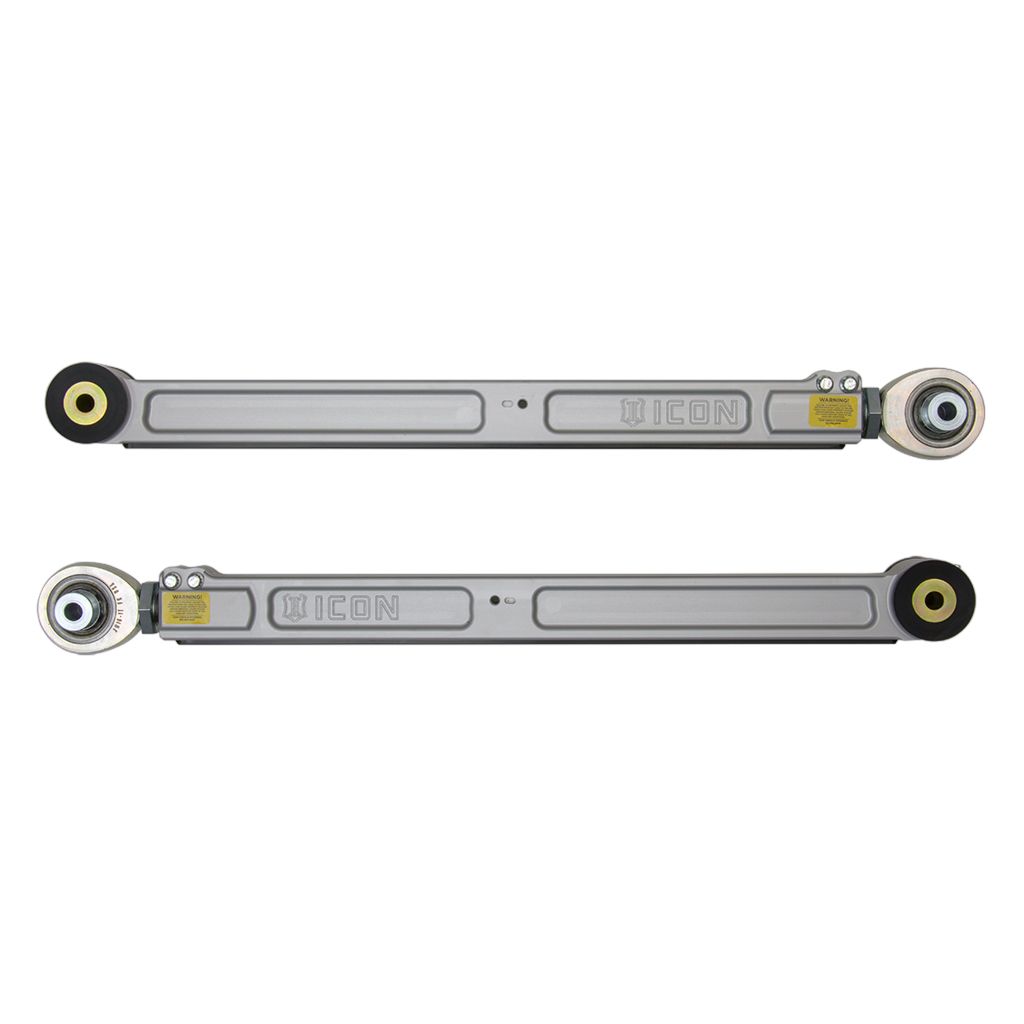

ICON's Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle.

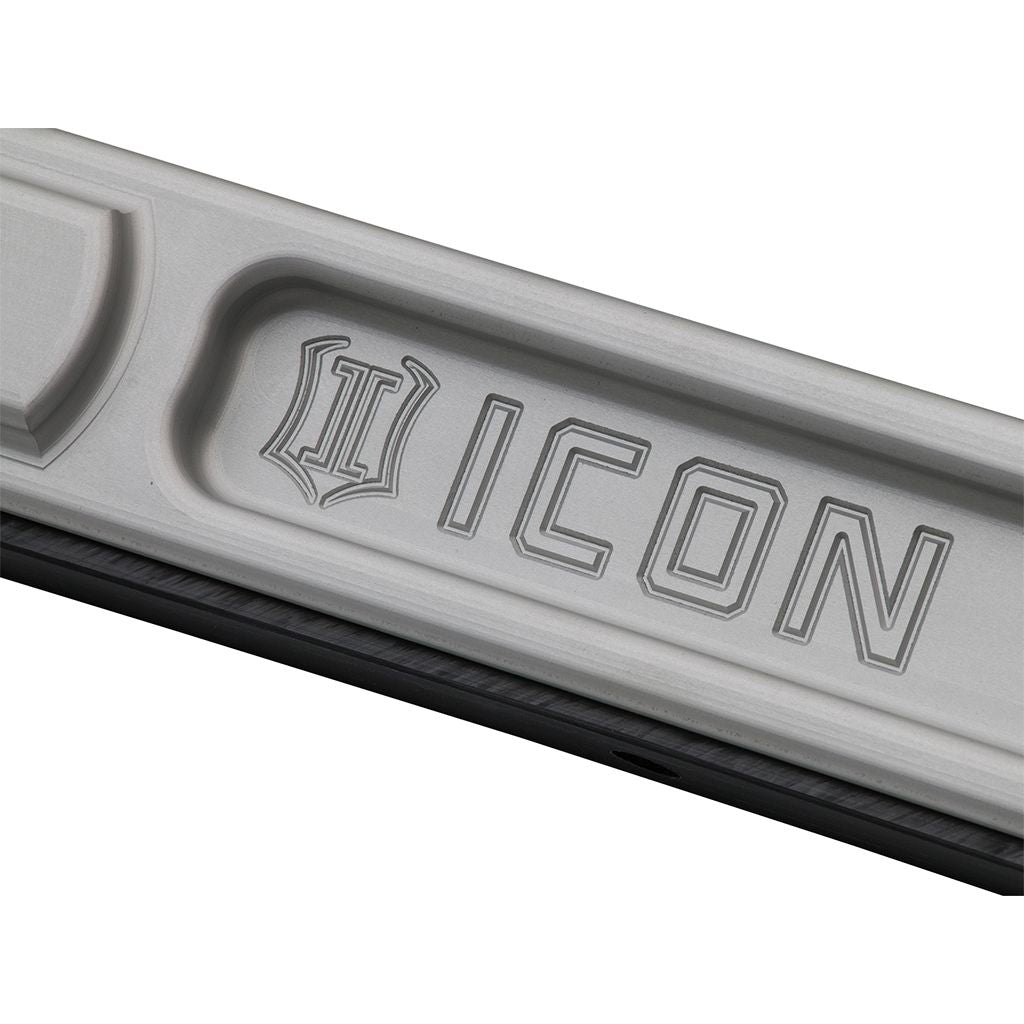

Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection.

A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.

Features and Benefits:

• On vehicle length adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
• Vehicle specific, high clearance design for reduced link contact with obstacles
• Replaceable Nylon Rock Slider to protect the link from damage
• CNC machined 6061 aluminum construction
• Large FK Bearing JMX16T PTFE-lined rod ends
• Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
• Covered by ICON's Limited Lifetime Warranty

Details

• Color: Gray
• Material: Aluminium
• Finish: Anodized
• Adjustable: Yes
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Thread In
• Ball Joint Stud Type: Threaded
• Bushing Color: Black
• Bushing Material: Rod End Bearing, Polyurethane
• Bushings Included: Yes
• Construction: Billet
• Control Arm Color: Silver
• Control Arm Construction: Billet
• Control Arm Material: Aluminum
• End 1 Type: Rod End Bearing
• End 2 Type: Bushing
• Grade Type: Performance
• Grease Fitting Included: Yes
• Mounting Hardware Included: Yes
• Pre Greased: No
• Reinforced: Yes
• Service Parts: 614509 - 54000 Bushing And Sleeve Kit
• Suspension Grade Type: Performance
• Suspension Type: Spring, Air
• Add On Part: 191013 - Nipple Greasing Adapter Kit
