ICON VEHICLE DYNAMICS | 2.5" Lift Stage 4 Suspension System | 05-16 Ford F250/F350 4WD Diesel | K62503

The ICON 2.5 Inch suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance. This Stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

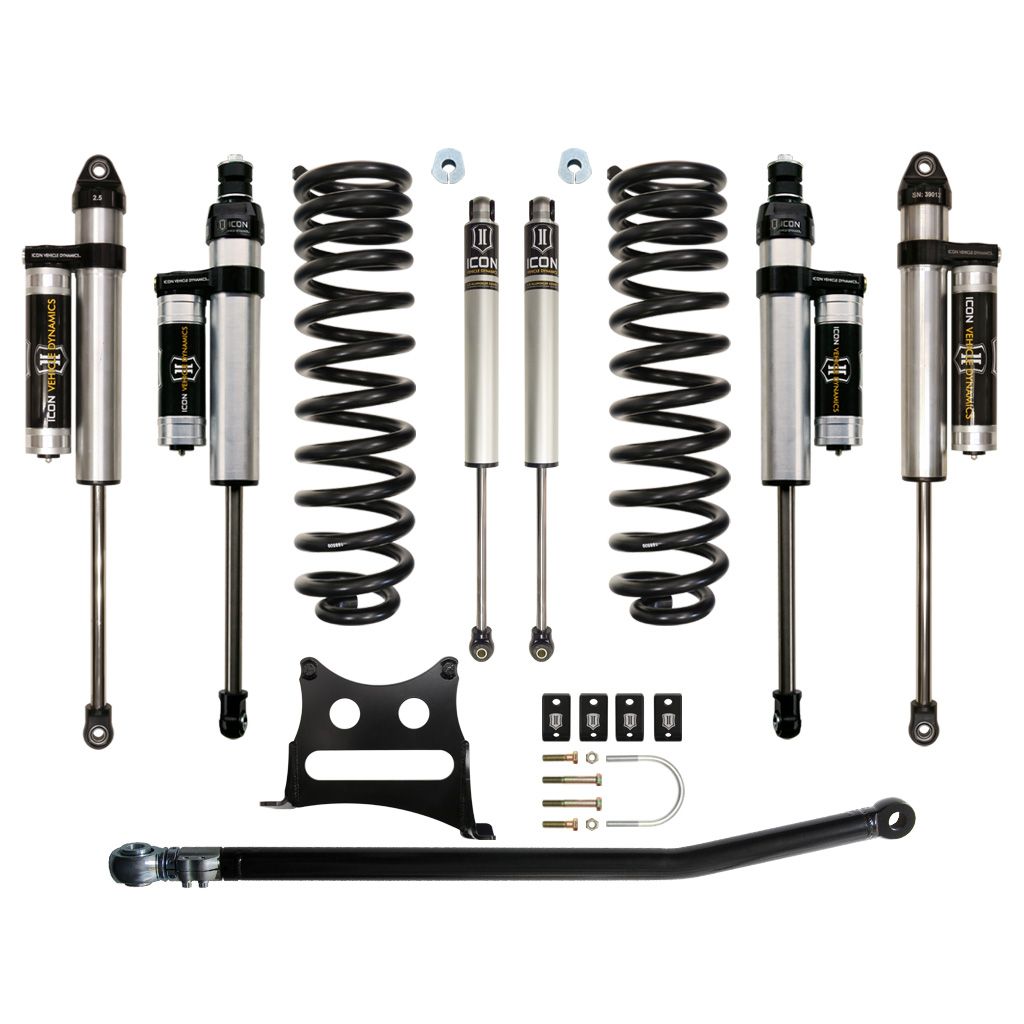

ICON's Stage 4 System is comprised of dual rate coil springs, alignment cams for adding caster, adjustable track bar w/ bearing, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and ICON 2.5 Aluminum Series piggyback reservoir shocks front and rear. ICON 2.5 Inch reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features and Benefits:

• For F-250 applications, a 4 Inch block can be used in place of your factory 2 inch block, in turn leveling the truck from front to rear, allowing use of ICON Rear Shocks.
• ICON engineered dual rate coil springs with match tuned performance shocks
• Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8 Inch shafts
• Application Specific Alignment Cams ensure proper Caster alignment
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Adjustable trackbar for optimum front axle centering and minimizing deflection
• Dual steering stabilizer kit for smooth wheel control while driving
• Less body-roll than stock
• Lifetime guarantee that coil springs won't sag
• No drive shaft modifications required
• 100 Percent Bolt-on system - no drilling, cutting or welding necessary for install

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Not Compatible With All Available OE Wheel/Tire Combinations. Aftermarket Wheels With Lower Offset/Less Backspace Recommended.
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit
