ICON VEHICLE DYNAMICS | 20-Up Gladiator 2.5 Inch Stage 3 Suspension System Icon Vehicle Dynamics | K22103

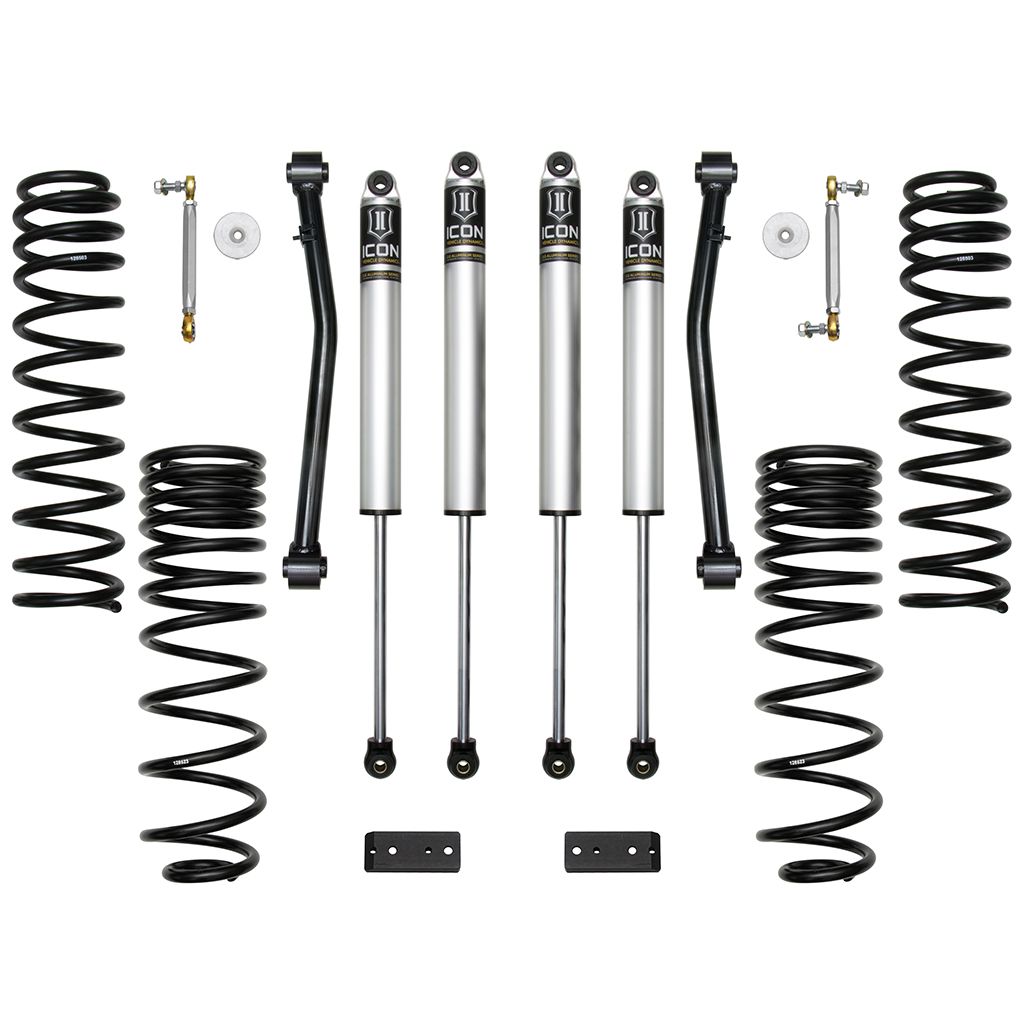

The Stage 3 ICON 2.5 Inch Suspension System for the Jeep Gladiator is the ideal setup for significantly improving on-road ride quality for the daily driven application that will see occasional moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5 Inch lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, and all necessary hardware for install.

This system provides an increase of over 30 Percent front and 20 Percent rear wheel travel and was designed around the use of a 35 Inch tire. For those looking to run a 37 Inch tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Features and Benefits:

• 2.5 Inch lift height
• Fits 35 Inch tires (37 Inch with extended bump stop spacer kit)
• 33 Percent front, 23 Percent rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Front lower links included for caster angle correction and improved front end articualtion
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• 2.0 Aluminum Series shocks with vehicle specific valving
• Adjustable, billet aluminum front sway bar links
• 100 Percent bolt-on system makes for an easy install
• InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Details

• Bushings Included: Yes
• Coil Spring End 1 Type: Open
• Coil Spring End 2 Type: Open
• Coils Quantity Front: 2.0
• Coils Quantity Rear: 2.0
• Grade Type: Performance
• Maximum Lift: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (37 Inch X 12.50 Inch With Optional Bump Stop Spacer Kit Part # 22071)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 W/ 4.5 Inch Backspace / -6mm Offset, Icon Alloys - 18x9 W/ 4.5 Inch Backspace / -12mm Offset, Icon Alloys - 20x9 W/ 4.5 Inch Backspace / -12mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 22071 - 20-Up JT Extended Bump Stop Spacer Kit, 22042 - 20-Up JT / 18-Up JL / 07-18 JK Front Hyd Bump Stop Kit
