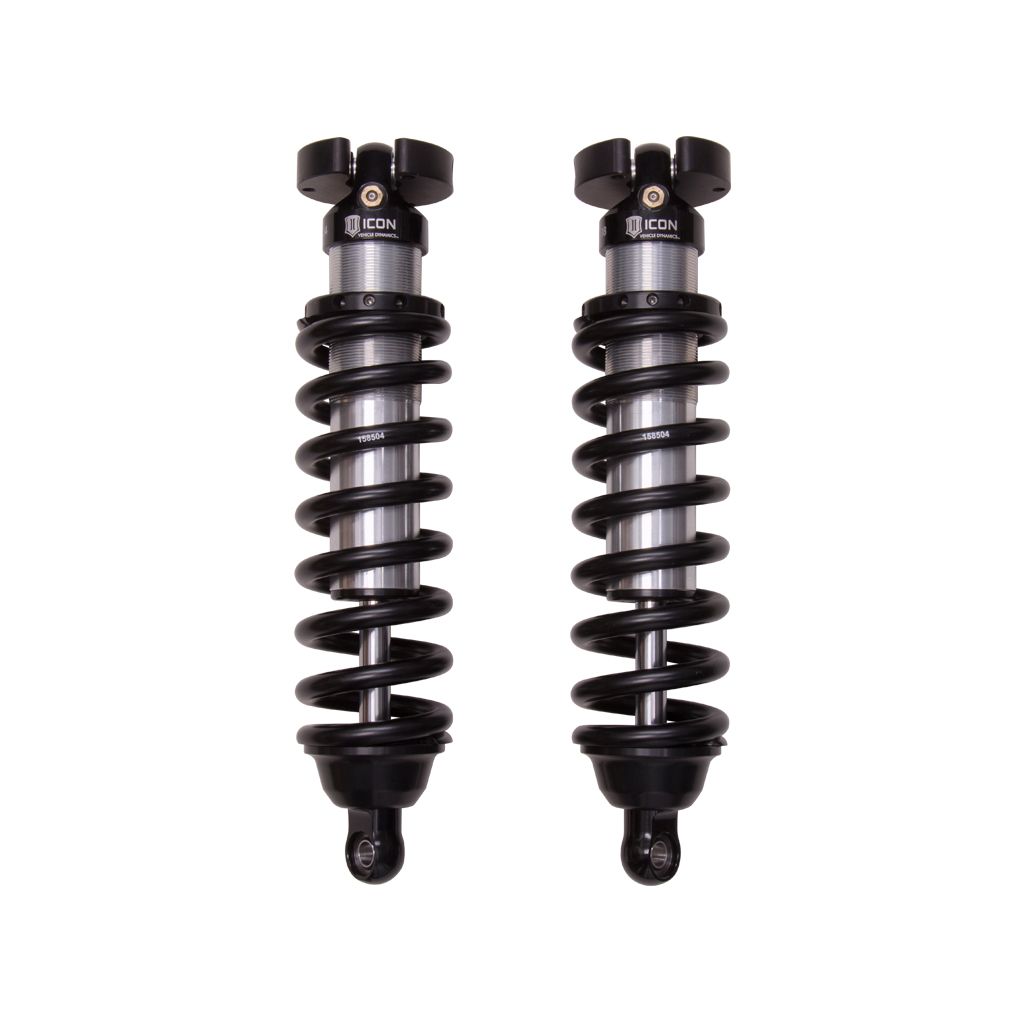

ICON VEHICLE DYNAMICS | 1996-2004 Toyota Tacoma 1996-2002 Toyota 4Runner 0-3 Inch Lift Front V.S. 2.5 Series Coilover Kit Extended Travel Internal Reservoir 700 Lbs In Spring Rate Icon Vehicle Dynamics | 58615-700

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.

Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.

To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.

Features and Benefits:

• Increased wheel travel and improved ride quality over stock
• Extended Travel length requires installation of aftermarket front upper control arms
• Vehicle specific tuned for superior shock damping and control
• Height-adjustable coilovers offer 0-3 Inch of front lift height adjustment
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Details

• Material: Steel, Aluminum
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 14.5
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 19.85
• Front Spring Rate: 700 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.0 Inch
• Maximum Ride Height Raising Distance: 3.0
• Minimum Lift: 0.0 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 611019 - Coilover Hardware Kit Pair, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 252010 - 2.5 Ifp Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 252004 - Economy Needle Charging Tool, 254100G - 1 Gallon Icon Performance Shock Oil
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 5.36
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 198001 - Billet Spanner Wrench Kit, 58400DJ - 96-04 Tacoma/96-02 4RNR Tubular UCA Dj Kit, 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 58500DJ - 96-04 Tacoma/96-02 4RNR Billet UCA Dj Kit
