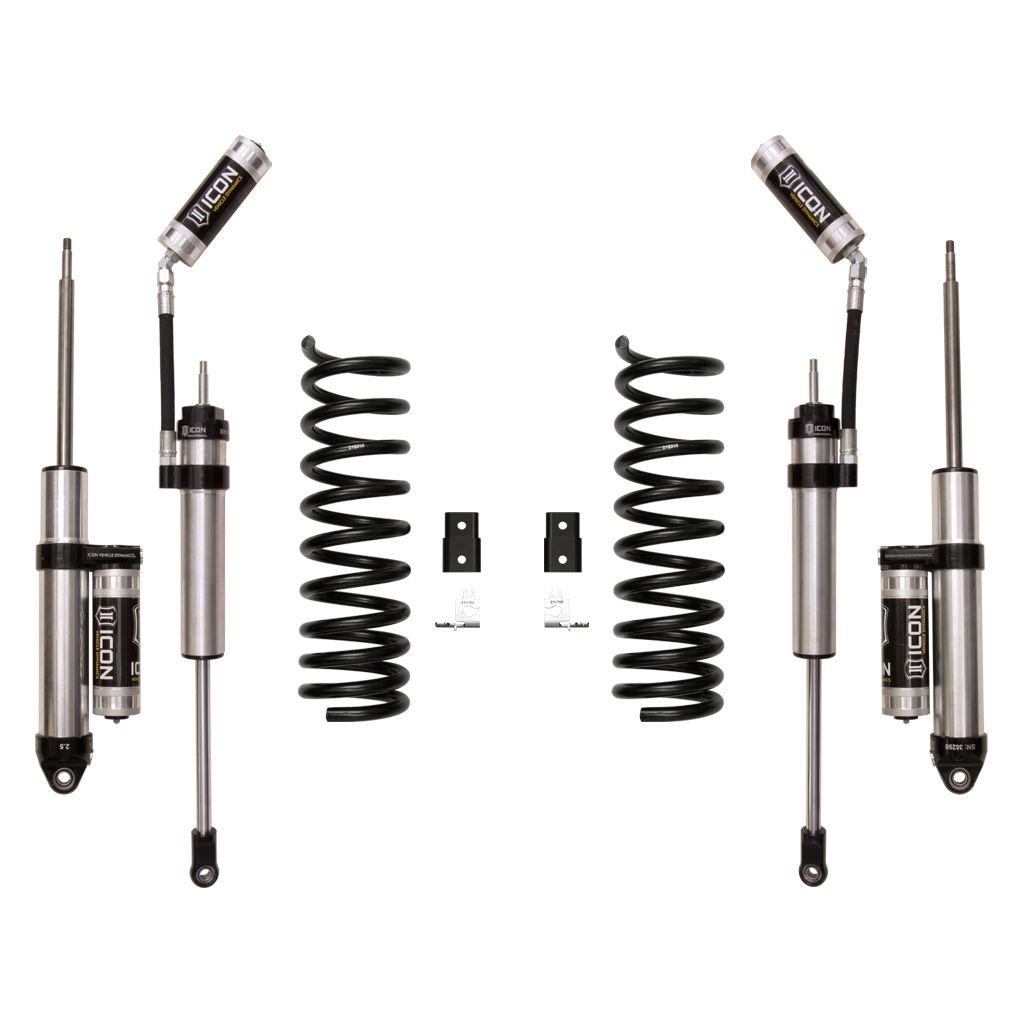

ICON VEHICLE DYNAMICS | 14-Up RAM 2500 4WD 2.5 Inch Stage 2 Suspension System Icon Vehicle Dynamics | K212542

ICON's 2014-UP RAM 2500 4WD 2.5 Inch Stage 2 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.5 Aluminum Series reservoir front and rear shocks. This system improves ride quality and performance both on and off road.

The ICON stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5 Aluminum Series reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features and Benefits:

• ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Less body roll than stock
• No drive shaft modifications needed

Details

• Bushings Included: No
• Coil Spring End 1 Type: Open
• Coil Spring End 2 Type: Open
• Coils Quantity Front: 2.0
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.50 Inch Bs / 12mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.25 Inch Bs / 13mm Offset, Icon Alloys - 18x9 Inch W/ 5.50 Inch Bs / 12mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 216520 - 09-Up RAM HD 2.0 Steering Stabilizer, 252012 - -4 To -10 Hose Shield Kit
