ICON VEHICLE DYNAMICS | 14-18 RAM 2500 4WD 4.5 Inch Stage 4 Suspension System (Performance) Icon Vehicle Dynamics | K214524P

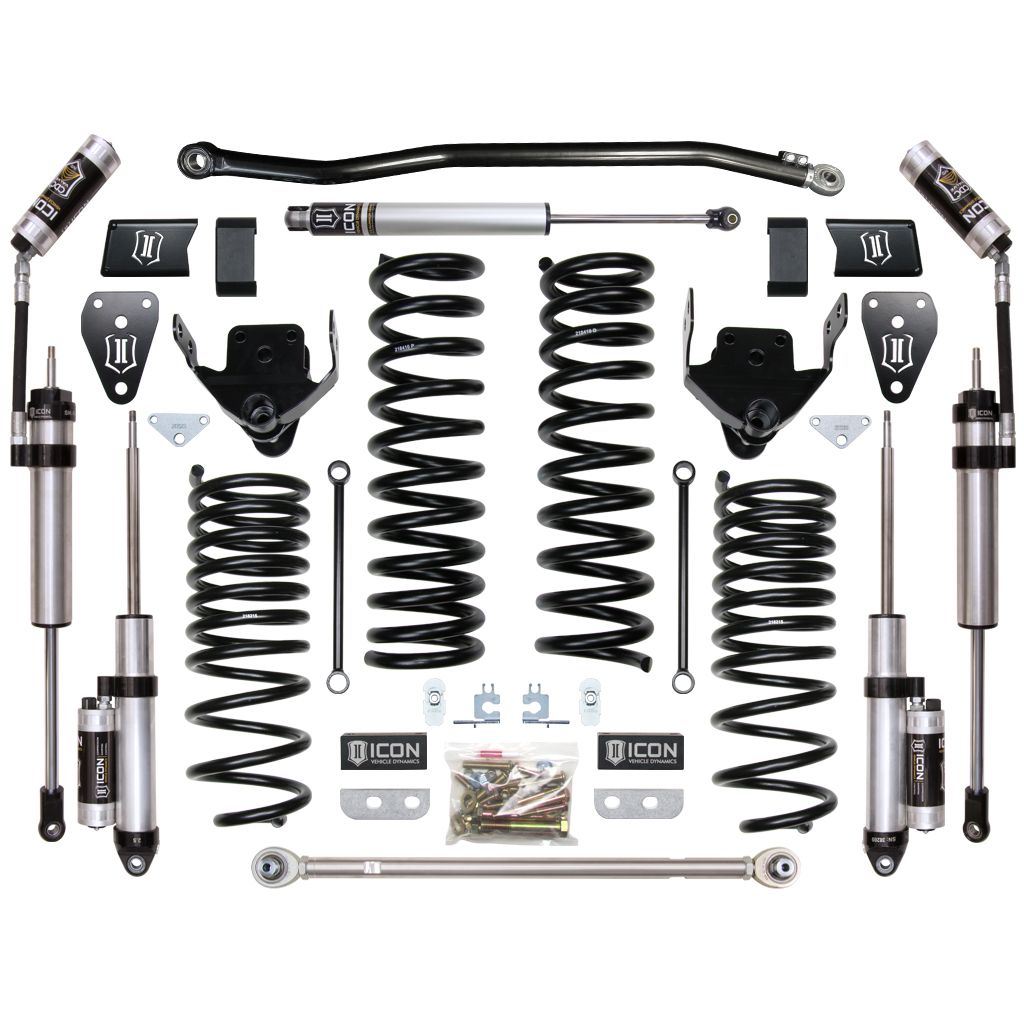

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5 Inch dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install.

Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.

Features and Benefits:

• This system includes multi-rate rear coil springs for a more compliant ride. The lighter initial rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary rate allows the truck to maintain exceptional ride quality over larger obstacles, while at the same time retaining factory payload capacity (at a reduced ride height). These performance systems were specifically developed for the 3/4 ton truck enthusiast who enjoys aggressive off-road adventures and does not tow or haul heavy loads.
• Increased wheel travel and ride quality over stock with no loss in towing capacity
• Decreased body roll
• Level stance from front to rear of vehicle
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Coils Quantity Rear: 2.0
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 4.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.25 Inch Bs / 13mm Offset, Icon Alloys - 20x9 Inch W/ 5.50 Inch Bs / 12mm Offset, Icon Alloys - 18x9 Inch W/ 5.50 Inch Bs / 12mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 214211 - 14-Up RAM HD 1.75 Inch Carrier Bearing Drop Kit, 252012 - -4 To -10 Hose Shield Kit, 216520 - 09-Up RAM HD 2.0 Steering Stabilizer, 191014 - .25 Inch Collar Spanner Pin Wrench
