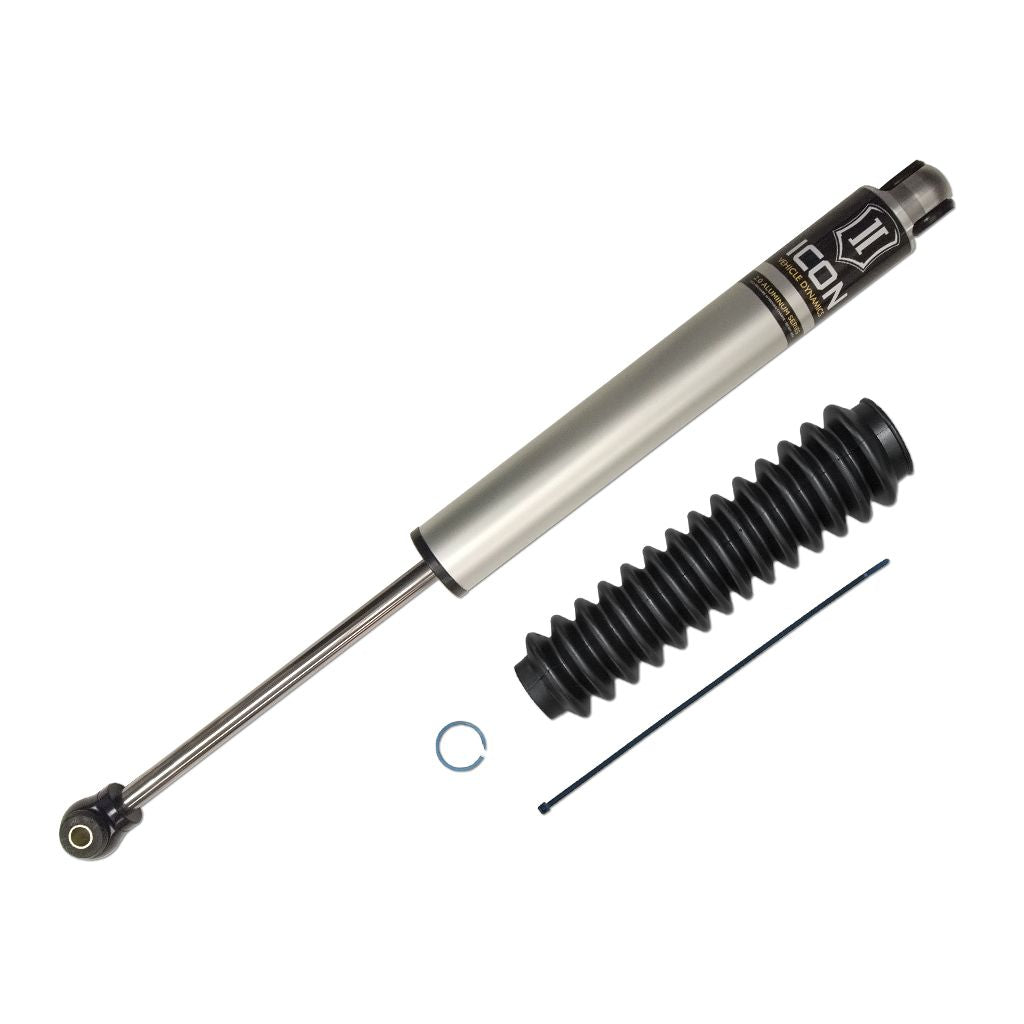

ICON VEHICLE DYNAMICS | 09-Up RAM HD Steering Stabilizer Icon Vehicle Dynamics | 216520

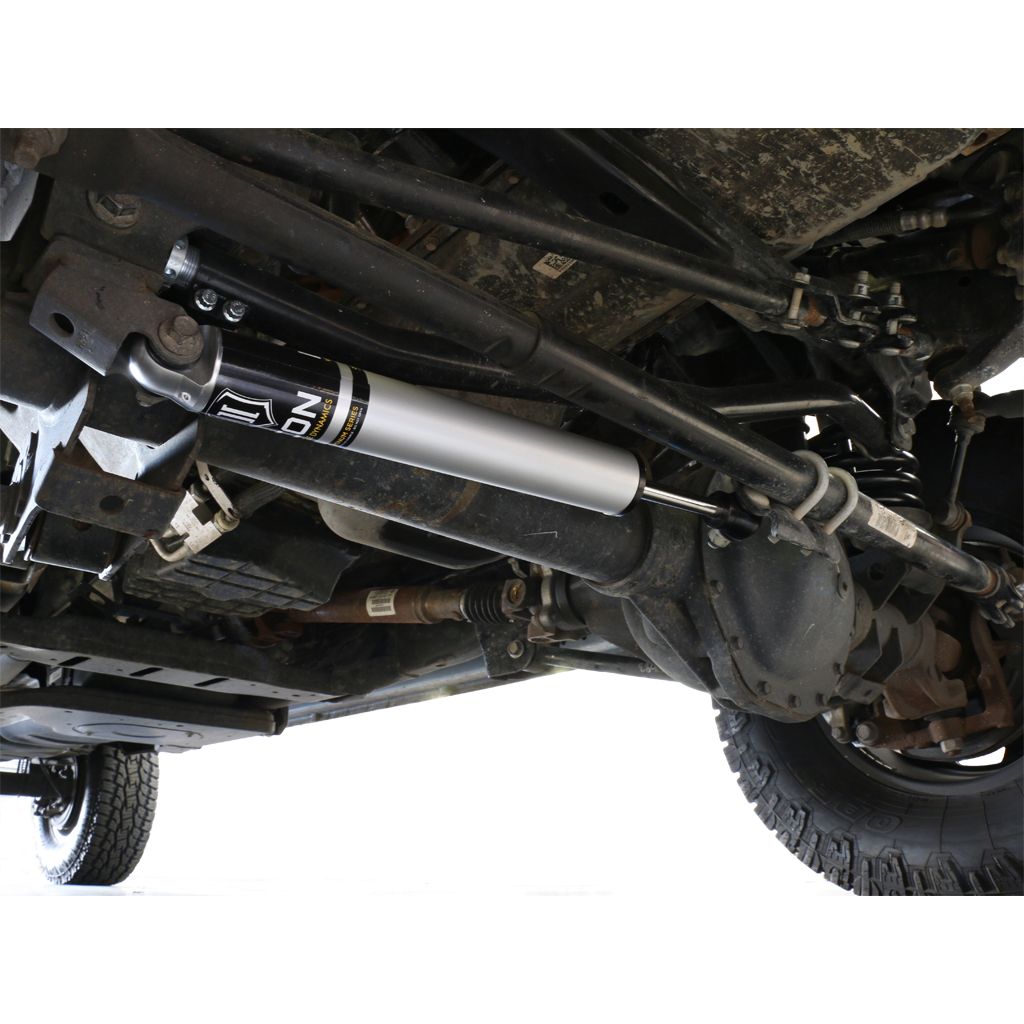

This stabilizer is based on the ICON 2.0 Aluminum Series shock absorber line, and has been specifically tuned to compensate for the additional weight of larger wheels and tires on the RAM 3/4-ton trucks. The ICON 2.0 stabilizer is a direct fit replacement, meaning install is as simple as removing the original unit, and bolting up the ICON part in its place.

Ease of installation combined with Increased damping ability over stock, a corrosion-resistant shock body, and a fully rebuildable design make the ICON steering stabilizer the best choice for replacing or upgrading worn out 2009-UP RAM 2500/3500 components.

Features and Benefits:

• Premium Grade 5WT Shock Oil for consistent damping characteristics
• Nitrogen charged monotube design with internal reservoir
• Internal floating piston design eliminates dead zone typical in emulsion shocks
• 6063 Anodized aluminum body for superb heat dissipation, excellent corrosion resistance
• 6061 aluminum rod end and internals insure strength and durability
• Polyurethane bushings and zinc plated sleeves for OE factory type fitment
• 5/8 Inch Chrome Plated, Hardened Steel Shaft resists corrosion and pits
• 100 Percent Rebuildable
• 100 Percent Revalveable

Details

• Color: Light Grey
• Adjustable Damping: No
• Compressed Length: 14.93
• Cylinder Diameter: 2.0
• Cylinder Material: Aluminum
• Damping Type: Oil
• Extended Length: 24.12
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Bracket Included: No
• Service Parts: 202002 - 2.0 Ifp Rebuild Kit
• Shaft Diameter: 0.625
• Shaft Material: Chrome
• Shock Travel Length: 9.2
• Steering Stabilizer Configuration: Single
• Upper Mount Type: Eyelet
