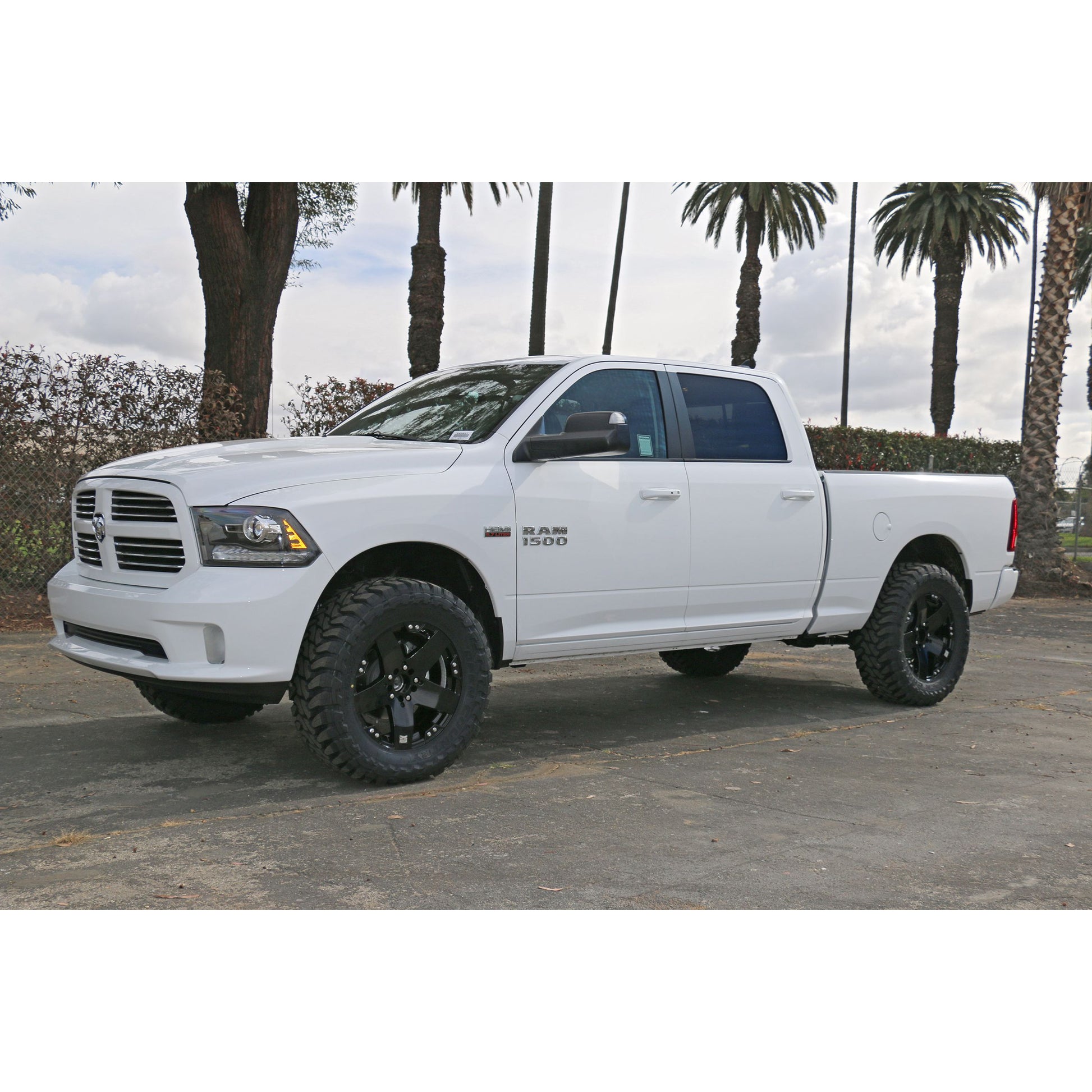

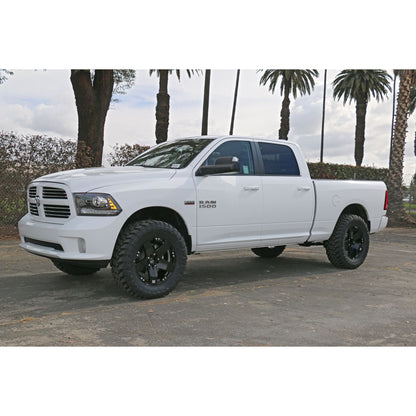

ICON VEHICLE DYNAMICS | 09-18 RAM 1500 4WD .75-2.5 Inch Stage 4 Suspension System Icon Vehicle Dynamics | K213004

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

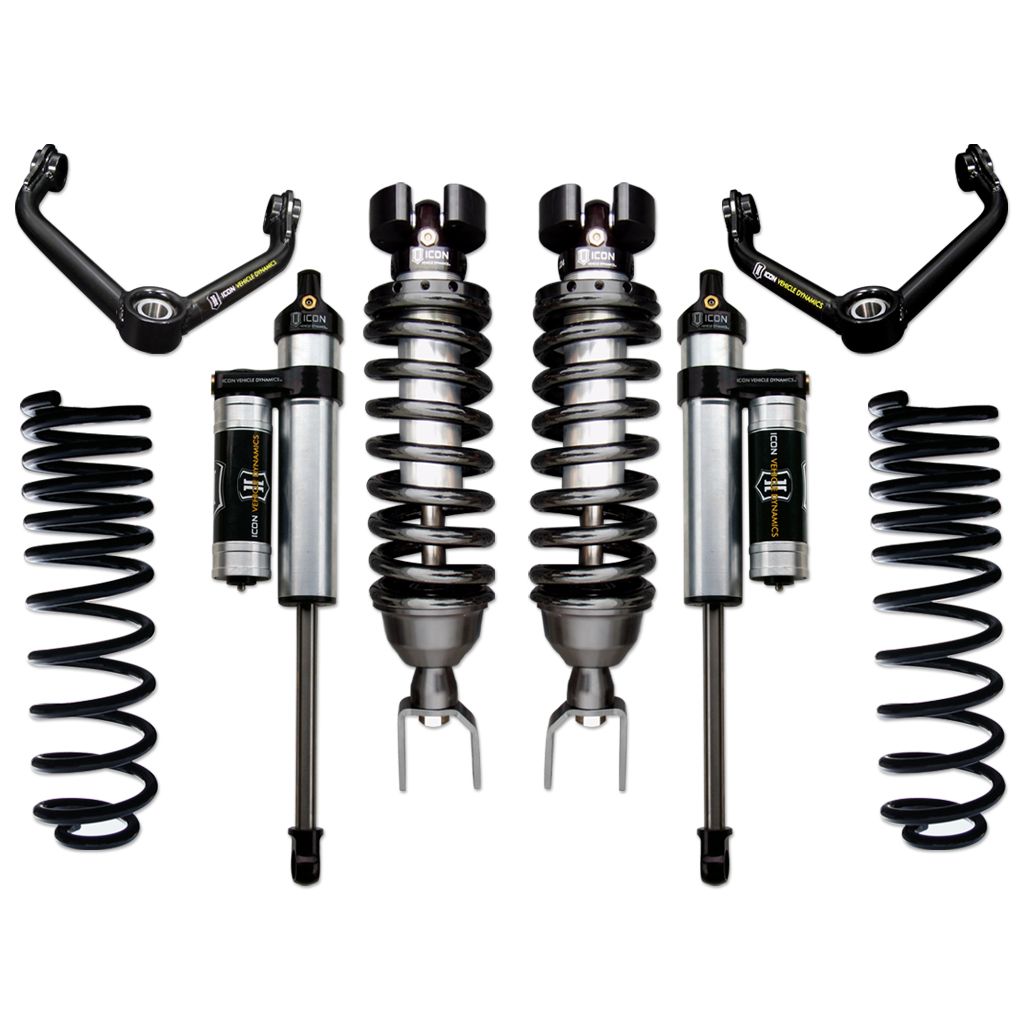

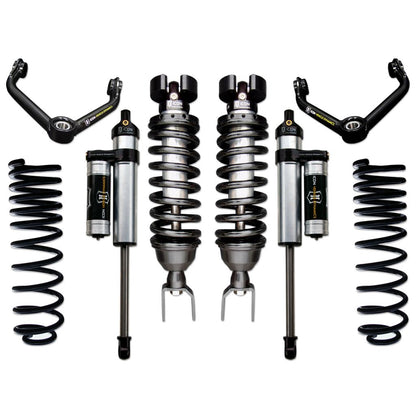

This system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from .75-2.5 Inch of lift over stock allowing the use of larger, more aggressive wheel and tire combinations.

ICON 2.5 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features and Benefits:

• This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from .75-2.5 Inch of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK rod end bearings for extended longevity and minimal deflection
• 100 Percent Bolt-on system - no drilling, cutting, or welding necessary for install

Details

• Bushings Included: Yes
• Coil Spring End 1 Type: Open
• Coil Spring End 2 Type: Open
• Coils Quantity Front: 2.0
• Coils Quantity Rear: 2.0
• Grade Type: Performance
• Maximum Lift: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Bs / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 198001 - Billet Spanner Wrench Kit, 191011 - Tubular UCA Billet Cap Set, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
