ICON VEHICLE DYNAMICS | 09-12 RAM 2500/3500 4.5 Inch Stage 3 Suspension System Icon Vehicle Dynamics | K214552T

2009-2012 Ram 2500/3500 4.5 Inch Stage 3 Suspension System utilizes the same technology as the 2.5 Inch systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road.

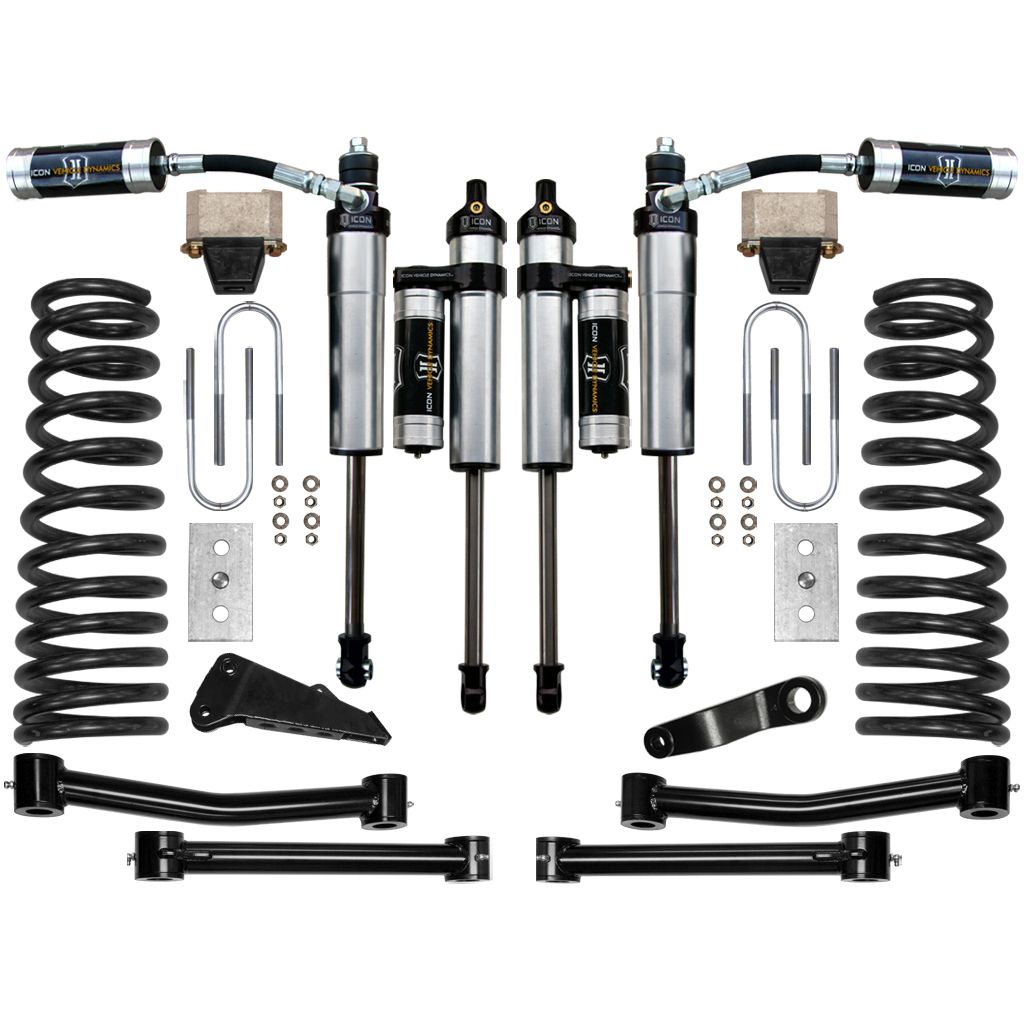

The Stage 3 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Inch V.S. Series shocks, rear 2.5 Inch lift blocks with u-bolts.

ICON 2.5 Inch Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, 7/8 Inch shafts for strength, and the industry only forged stem on a 2.5 Inch shock with rolled threads.

ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings.

This mid-level performance system with billet link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35 Inch tall tires with no modifications, and some 37 Inch tires with minor fender well trimming for clearance.

With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

Features and Benefits:

• ICON engineered dual rate coil springs with match tuned 2.5 Inch V.S. Series reservoir shocks
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Correctly positioned steering and track bar components
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 4.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.50 Inch Bs / 12mm Offset, Icon Alloys - 18x9 Inch W/ 5.50 Inch Bs / 12mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.25 Inch Bs / 13mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 216520 - 09-Up RAM HD 2.0 Steering Stabilizer, 252012 - -4 To -10 Hose Shield Kit
